Status Output Connections - GE MobileView User Manual

3 DVR Installation and Wiring
3.2.3.2 P B C
ANIC UTTON
The Panic Button's N/C wire and common wire connect to one of the pairs of input terminals as shown in
Figure 30.
Note: The Panic Button also has wires that are used for status outputs. See section 3.2.4 Status Output Connections.

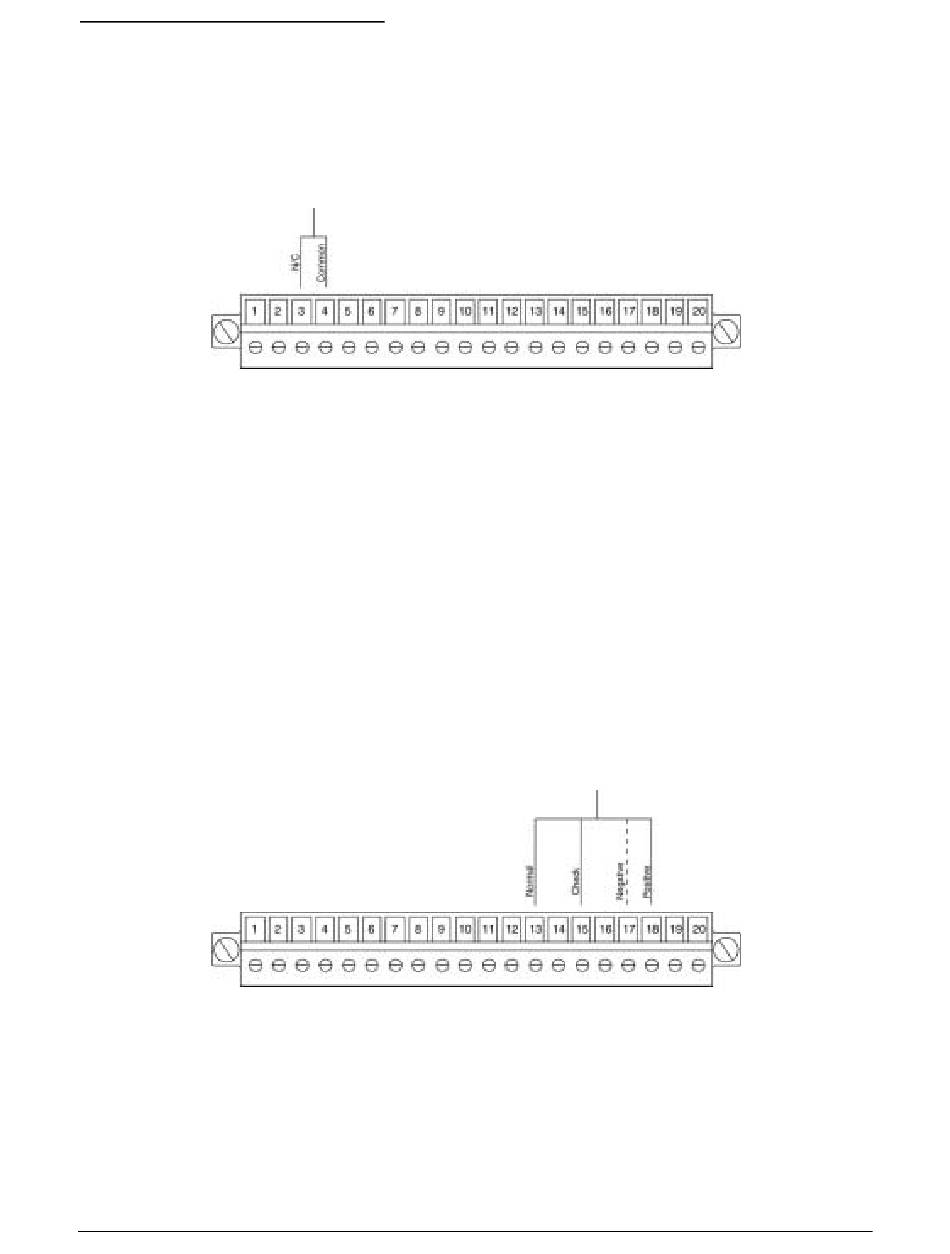

Figure 30. Panic button input connections
3.2.4 S O
TATUS UTPUT
The MobileView system provides two status outputs on the J11 terminal block for optional use. The most
common uses for these outputs are as interfaces to a vehicle relay system or lights. To communicate with
a vehicle relay system, contact the vehicle manufacturer.
To connect the status lights on the Panic Button to the status outputs, see Figure 31 and perform the
following:
1) Connect the normal wire (green) to terminal 13.
2) Connect the check wire (red) to terminal 15.
3) Connect the positive wire (gray) to terminal 18. Use terminal 19 if 18 is unavailable.
4) If you are installing a Panic Button with a key reset, connect the negative wire (white) to
terminal 17.
Figure 31. Panic button output connections
