2 Hardware Installation
To adjust the camera according to where it will be mounted on the vehicle, perform the following:
1) See Figure 13, which shows orientation
of a camera for mounting on the
curbside of the bus, the backside of the
bus, or in a forward-facing position on
the dashboard. Note that the lens set
screw ( ) and the wiring harness ( )
are positioned at the top of the camera.
2) For cameras mounted on the street
side of the bus or surface-mounted
facing backward, remove the two side-
set screws, as shown in Figure 14, and
lift the camera out of its bracket.
3) Rotate the entire camera assembly
180º. See Figure 14.
4) Insert the camera into the bracket, and
replace the set screws. The lens set
screw and the wiring harness should be
positioned at the bottom of the camera.
See Figure 15.
14

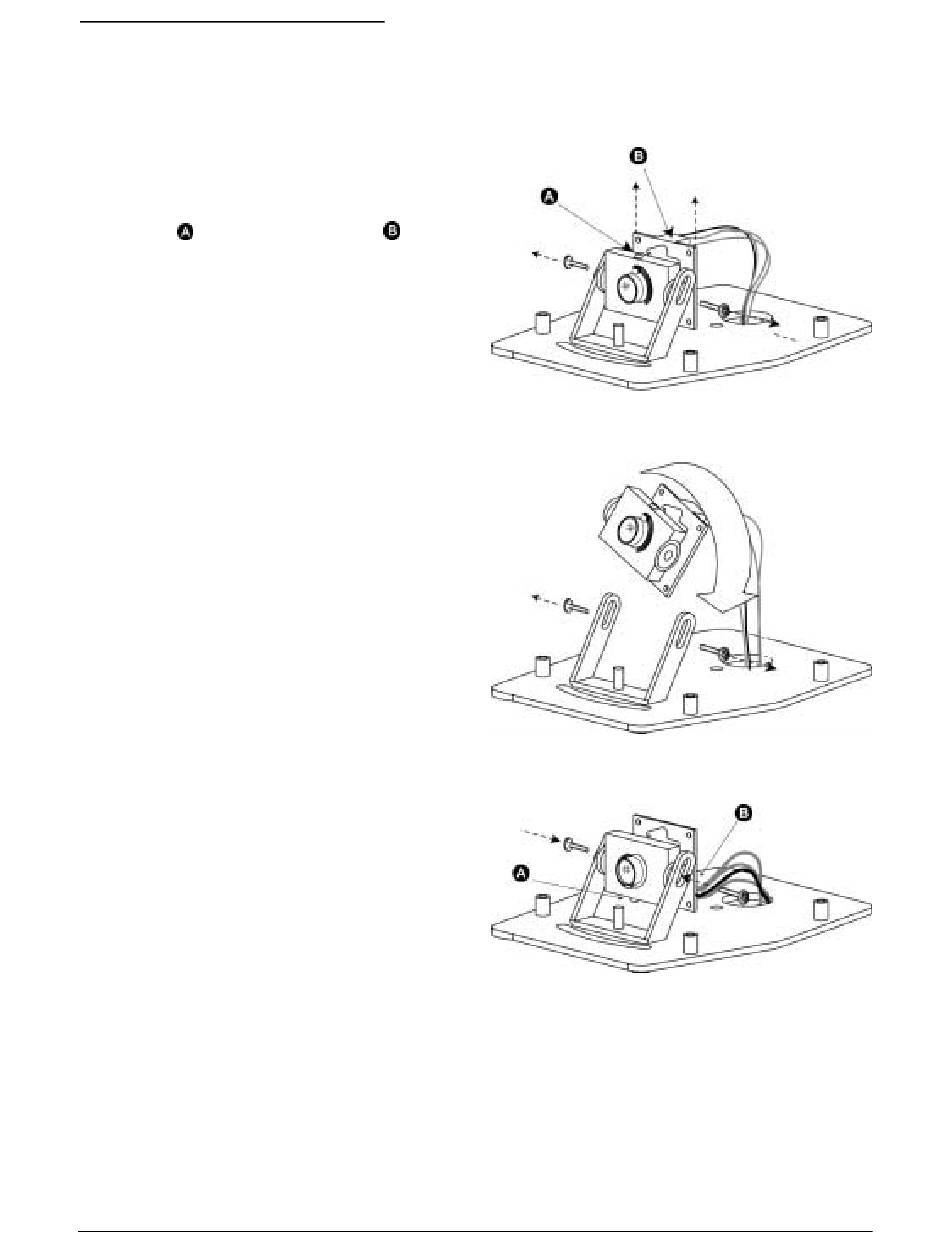

Figure 13. Camera orientation for curbside mounting.
Figure 14. Rotating the camera for street-side orientation
Figure 15. Camera orientation for street-side mounting
