4.
Slide the fan out.

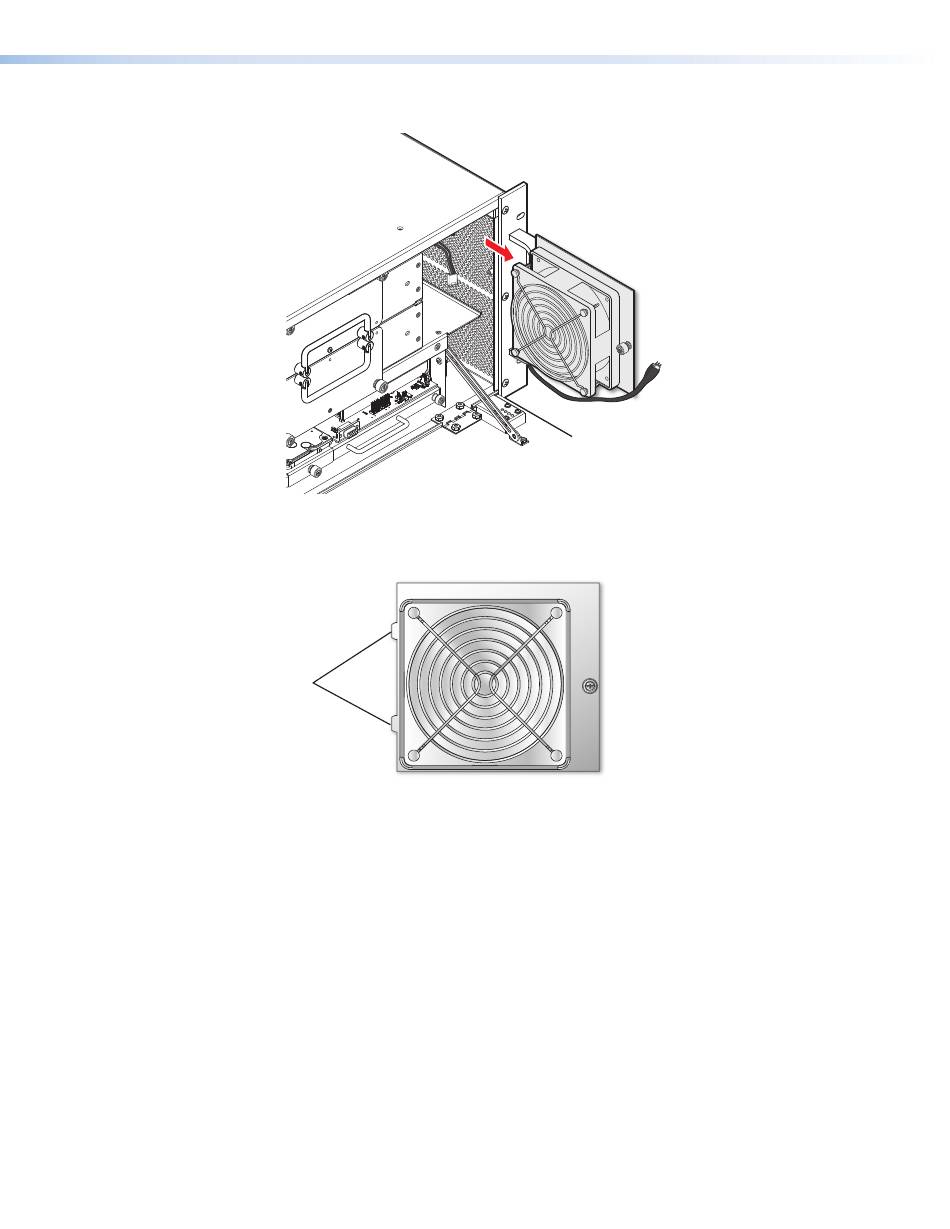

Figure 86.
Sliding the Front Fan Out of the Chassis
5.
The replacement fan has two tabs on the back (see figure 87). These tabs fit into two
slots in the back of the fan compartment of the chassis (see figure 88).
Tabs
Figure 87.
Tabs on the Front Fan
Quantum Ultra Videowall Processing System • Maintenance — Quantum Ultra 610 Only
91
