4. Use a screwdriver to loosen the thumbscrews at the right and left edges of the
assembly (see figure 94,
ATTENTION:
• Thumbscrews should be tightened with a screwdriver after both initial
installation and subsequent access to the panel.
• Les vis doivent être serrées avec un tournevis après la première installation
et l'accès postérieur au panneau.
5. Pull the handle on the SBC (

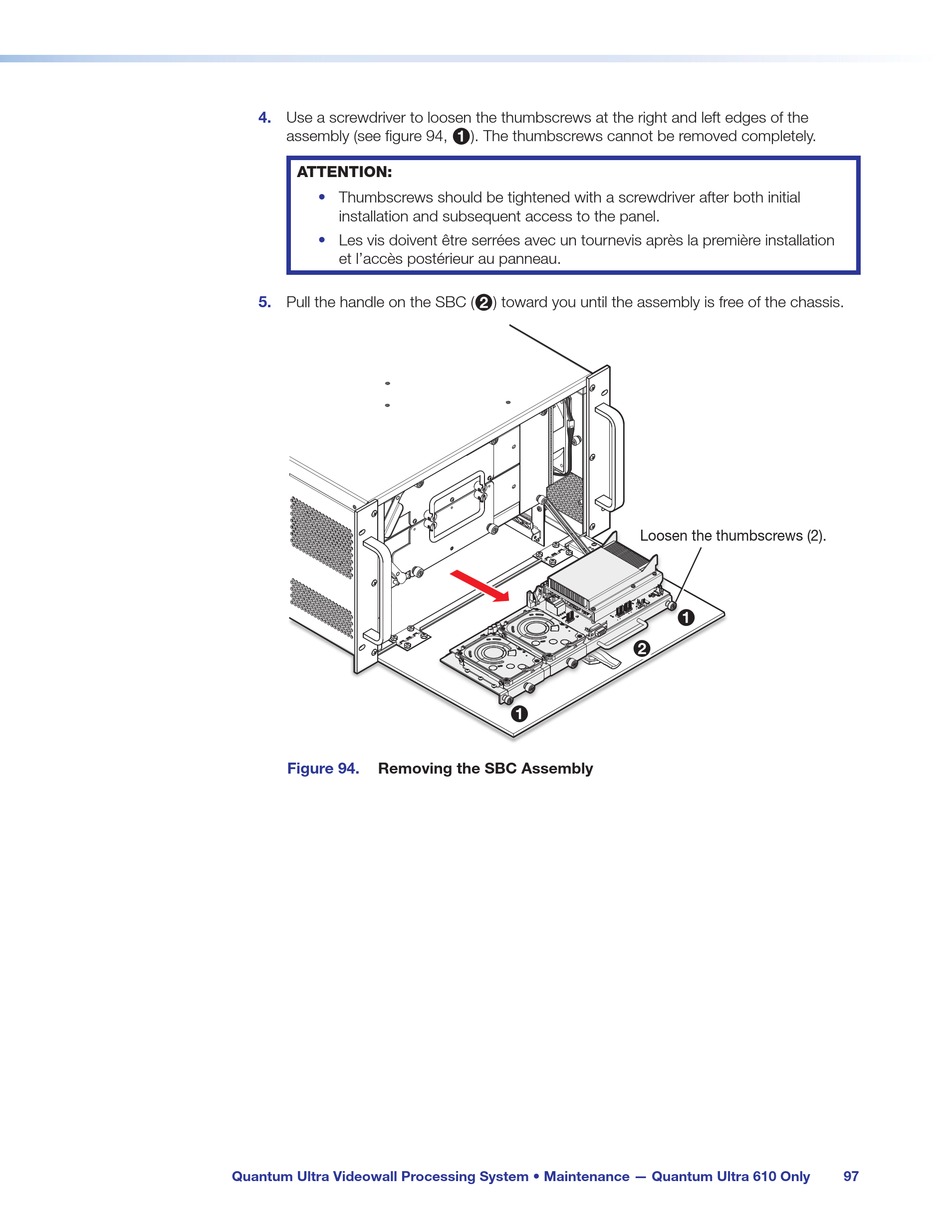

Figure 94. Removing the SBC Assembly
Quantum Ultra Videowall Processing System • Maintenance — Quantum Ultra 610 Only
). The thumbscrews cannot be removed completely.
1
) toward you until the assembly is free of the chassis.
2
1 1
Loosen the thumbscrews (2).
1 1
2 2
