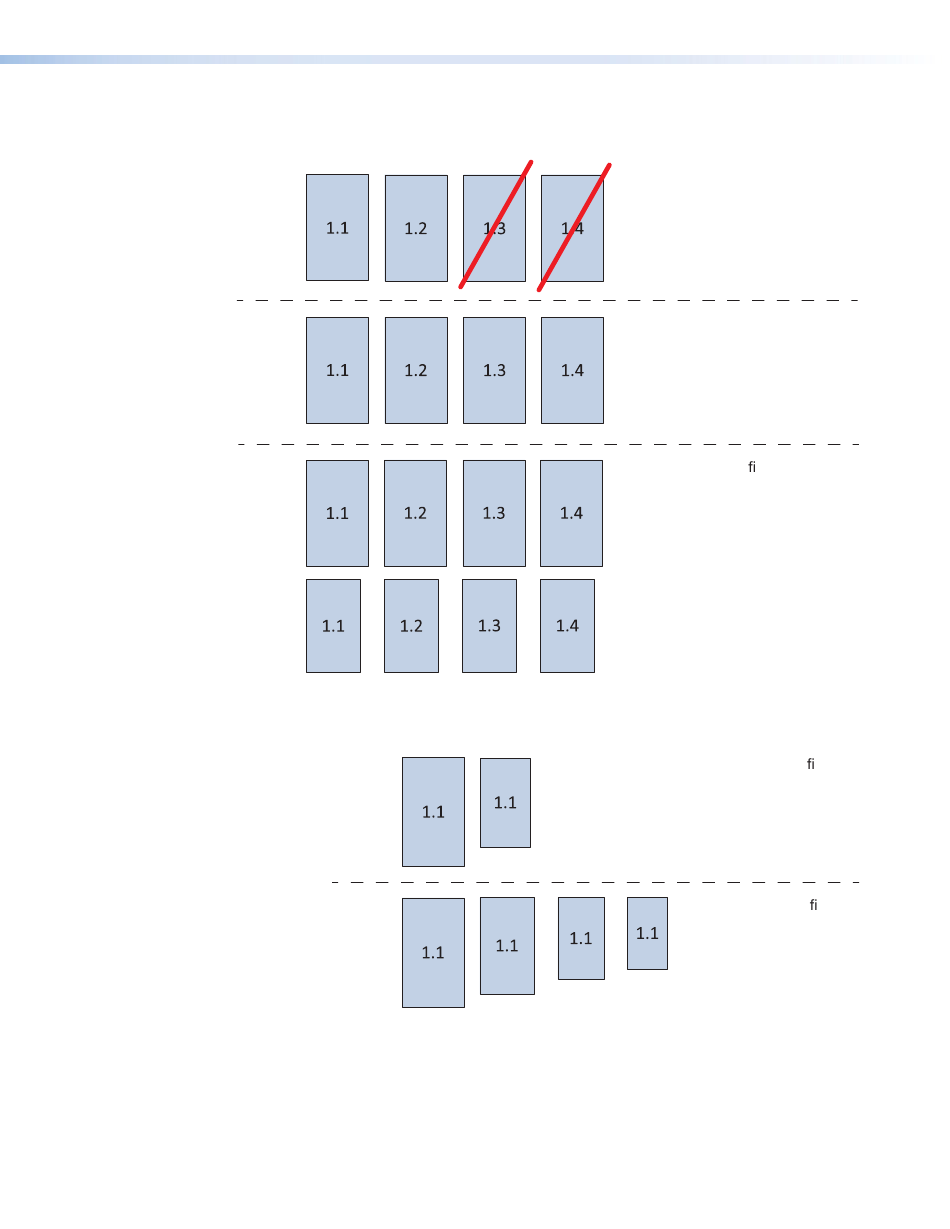

Maximum instances of a rotated source per input card
Example 1: Four rotated 1080p inputs at 60 Hz applied to one input card
Processed at 60 Hz
Processed at 30 Hz
Processed at 15 Hz
Figure 17.
Example 2: One rotated 1080p input at 60 Hz applied to one input card
Processed at 60 Hz
Processed at 30 Hz
Figure 18.
Quantum Ultra Videowall Processing System • Installation and Configuration
Example of Four Rotated 1080p Inputs, 60 Hz, on One Input Card
Example of One Rotated 1080p Input, 60 Hz, on One Input Card
Two rotated 1080p sources
can be shown at 60 Hz.
Four rotated 1080p sources
can be shown at 30 Hz.
Two unique mini cations
for the four rotated 1080p
sources can be shown at 15 Hz.
Two unique mini cation
sizes for one source
Four unique mini cation
sizes for one source
