4.
Insert the replacement drive so that the right and left edges pass under the inside
edges of the three screws on the right and left sides of the drive (see figure 92,
NOTE: The second and third pairs of screws are not visible. However, if you press
the drive straight back after it passes under the first pair of screws, without
letting its front edge rise up, it passes under the remaining screws as well.

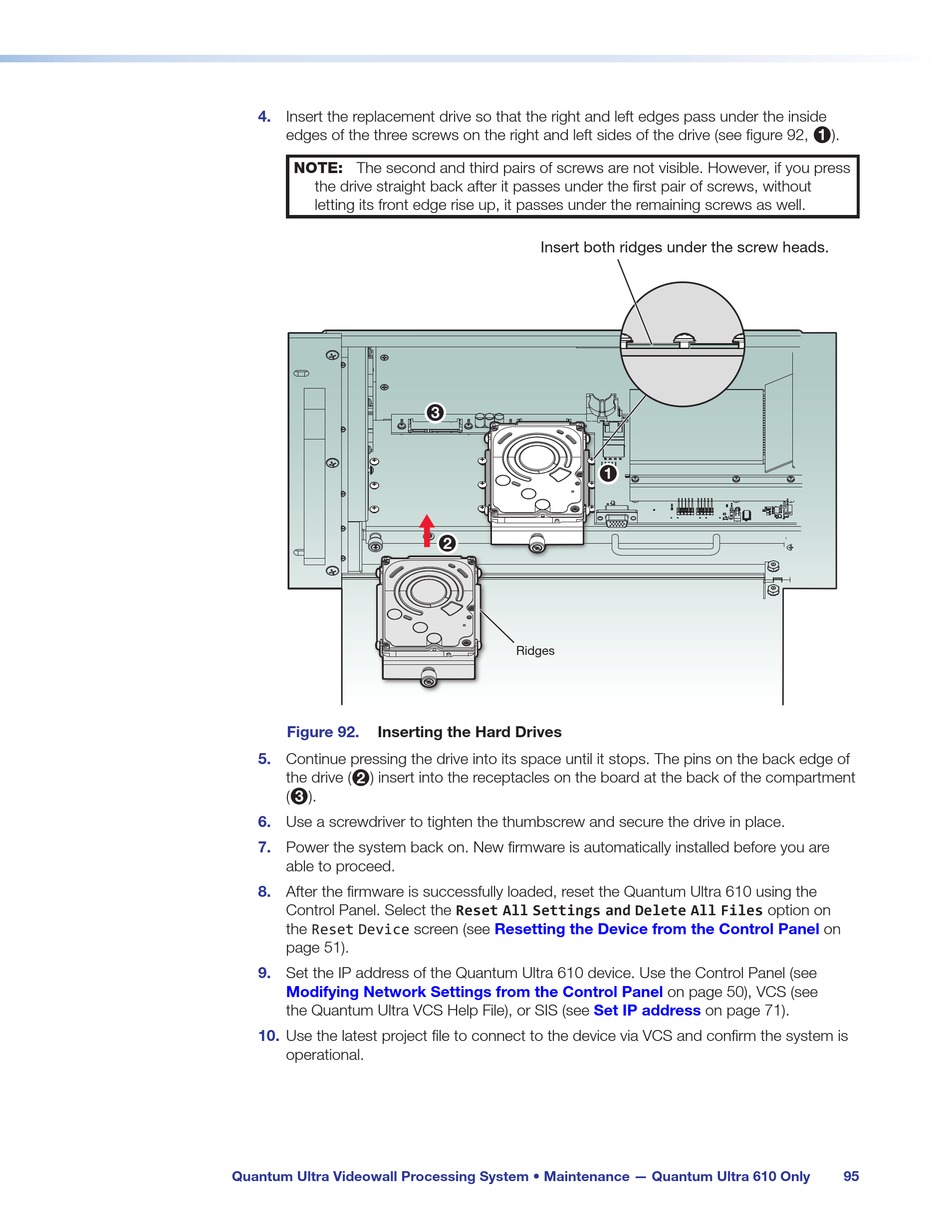

Figure 92.
Inserting the Hard Drives
5.
Continue pressing the drive into its space until it stops. The pins on the back edge of
the drive (
) insert into the receptacles on the board at the back of the compartment
2
(
).
3
6.
Use a screwdriver to tighten the thumbscrew and secure the drive in place.
7.
Power the system back on. New firmware is automatically installed before you are
able to proceed.
8.
After the firmware is successfully loaded, reset the Quantum Ultra 610 using the
Control Panel. Select the Reset All Settings and Delete All Files option on
the Reset Device screen (see
page 51).
9.
Set the IP address of the Quantum Ultra 610 device. Use the Control Panel (see
Modifying Network Settings from the Control Panel
the Quantum Ultra VCS Help File), or SIS (see
10.
Use the latest project file to connect to the device via VCS and confirm the system is
operational.
Quantum Ultra Videowall Processing System • Maintenance — Quantum Ultra 610 Only
Insert both ridges under the screw heads.
3 3
1 1
2 2
Ridges
Resetting the Device from the Control Panel
Set IP address
).
1
on
on page 50), VCS (see
on page 71).
95
