HDMI
1
4K Media Player
1
4K Media Player
1
4K Media Player
1
4K Media Player
1 2 3 4
WiFi
4K PC
WiFi 1 2 3 4
4K PC
Figure 2.
Extron
Quantum Ultra
Ultra-high Bandwidth
4K Videowall Processor
QUANTUM ULTRA 610
INPUTS
INPUTS
INPUTS
OUTPUTS
OUTPUTS
OUTPUTS
POWER SYSTEM REMOTE LAN
DISCONNECT POWER
CORD BEFORE
SERVICING
A B
RS-232
CONFIG
Tx Rx G
HDMI

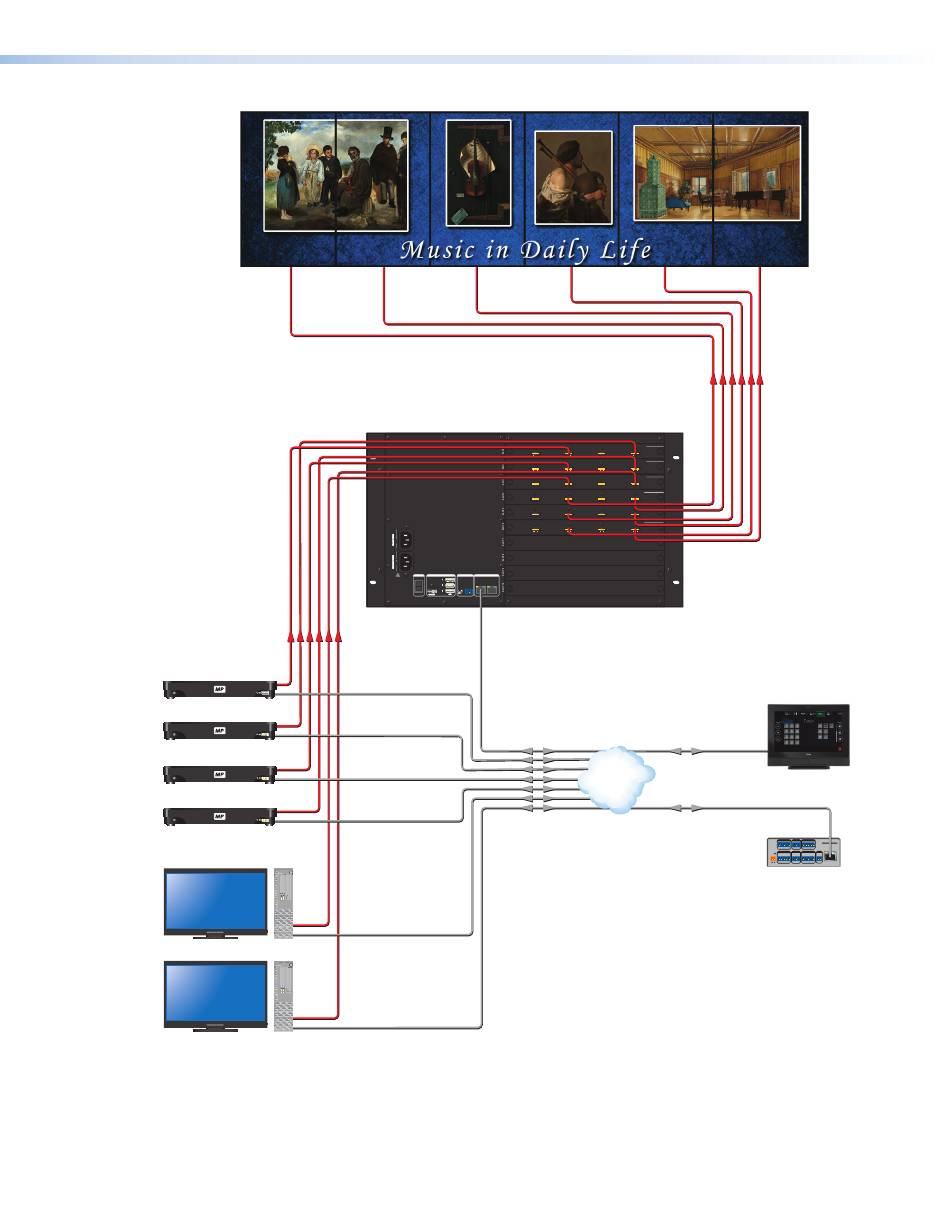

Connection Diagram for a Quantum Ultra 610, HDMI Only
Quantum Ultra Videowall Processing System • Introduction
HDMI
QUANTUM IN4HDMI
1 2 3 4
QUANTUM IN4HDMI
1 2 3 4
QUANTUM IN4HDMI
1 2 3 4
QUANTUM OUT4HDMI
1 2 3 4
1 2 3 4
QUANTUM OUT4HDMI
1 2 3 4
Ethernet Ethernet
Control
LAN
Ethernet Ethernet
HDMI
Extron
TLP Pro 1022T
10" Tabletop
TouchLink Pro
Touchpanel
COM 1 COM 2 DIGITAL I/O
IPCP PRO 250
Tx Rx G RTS CTS Tx Rx G 1 2 3 4 G
POWER
VOL RELAYS eBUS IR/S
12V
--A MAX V C G 1 2 C + V + S -S G
PWR OUT = 6W S G LAN
Extron
IPCP Pro 250
IP Link Control
Processor
