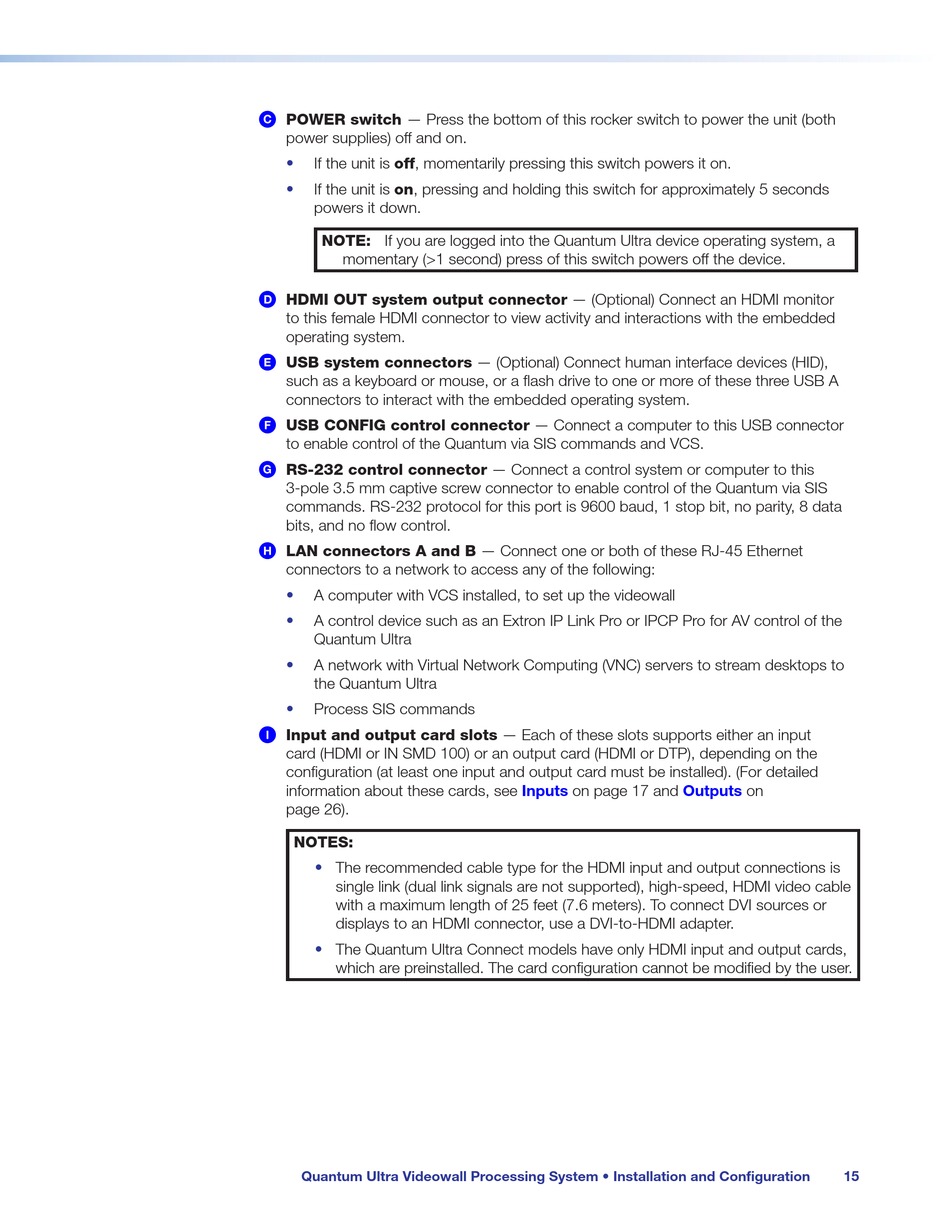

POWER switch — Press the bottom of this rocker switch to power the unit (both
C
power supplies) off and on.
• If the unit is off, momentarily pressing this switch powers it on.
• If the unit is on, pressing and holding this switch for approximately 5 seconds
powers it down.
NOTE: If you are logged into the Quantum Ultra device operating system, a
momentary (>1 second) press of this switch powers off the device.
HDMI OUT system output connector — (Optional) Connect an HDMI monitor
D
to this female HDMI connector to view activity and interactions with the embedded
operating system.
USB system connectors — (Optional) Connect human interface devices (HID),
E
such as a keyboard or mouse, or a flash drive to one or more of these three USB A
connectors to interact with the embedded operating system.
USB CONFIG control connector — Connect a computer to this USB connector
F
to enable control of the Quantum via SIS commands and VCS.
RS-232 control connector — Connect a control system or computer to this
G
3-pole 3.5 mm captive screw connector to enable control of the Quantum via SIS
commands. RS-232 protocol for this port is 9600 baud, 1 stop bit, no parity, 8 data
bits, and no flow control.
LAN connectors A and B — Connect one or both of these RJ-45 Ethernet
H
connectors to a network to access any of the following:
A computer with VCS installed, to set up the videowall
•
• A control device such as an Extron IP Link Pro or IPCP Pro for AV control of the
Quantum Ultra
• A network with Virtual Network Computing (VNC) servers to stream desktops to
the Quantum Ultra
Process SIS commands
•
Input and output card slots — Each of these slots supports either an input
I
card (HDMI or IN SMD 100) or an output card (HDMI or DTP), depending on the
configuration (at least one input and output card must be installed). (For detailed
information about these cards, see
page 26).
NOTES:
• The recommended cable type for the HDMI input and output connections is
single link (dual link signals are not supported), high-speed, HDMI video cable
with a maximum length of 25 feet (7.6 meters). To connect DVI sources or
displays to an HDMI connector, use a DVI-to-HDMI adapter.
• The Quantum Ultra Connect models have only HDMI input and output cards,
which are preinstalled. The card configuration cannot be modified by the user.
