12.6 OSC
External equipment sending OSC messages to the CueCore2 need to be aware
of the number specified in the 'Port' field. This is the port the CueCore2 listens
to for incoming messages.
The CueCore2 will send its outgoing OSC messages to the IP addresses speci-
fied in the 'Out IP' fields. Up to four IPs can be specified here. Use the 'ipad-
dress:port' format in these fields, e.g. "192.168.1.11:9000". If a field should not
be used that it can be filled with IP 0.0.0.0:0. It is possible to enter a broadcast
IP address like 192.168.1.255 in order to reach more than four recipients.
Enabling the Forward checkbox will have the CueCore2 copy every incoming
OSC message and send it the addresses specified in the 'Out IP' fields.
12.7 Timecode
The CueCore2 can receive SMPTE, MTC and Art-Net timecode. This section
allows to choose one of these protocols as the timecode source. Alternatively,

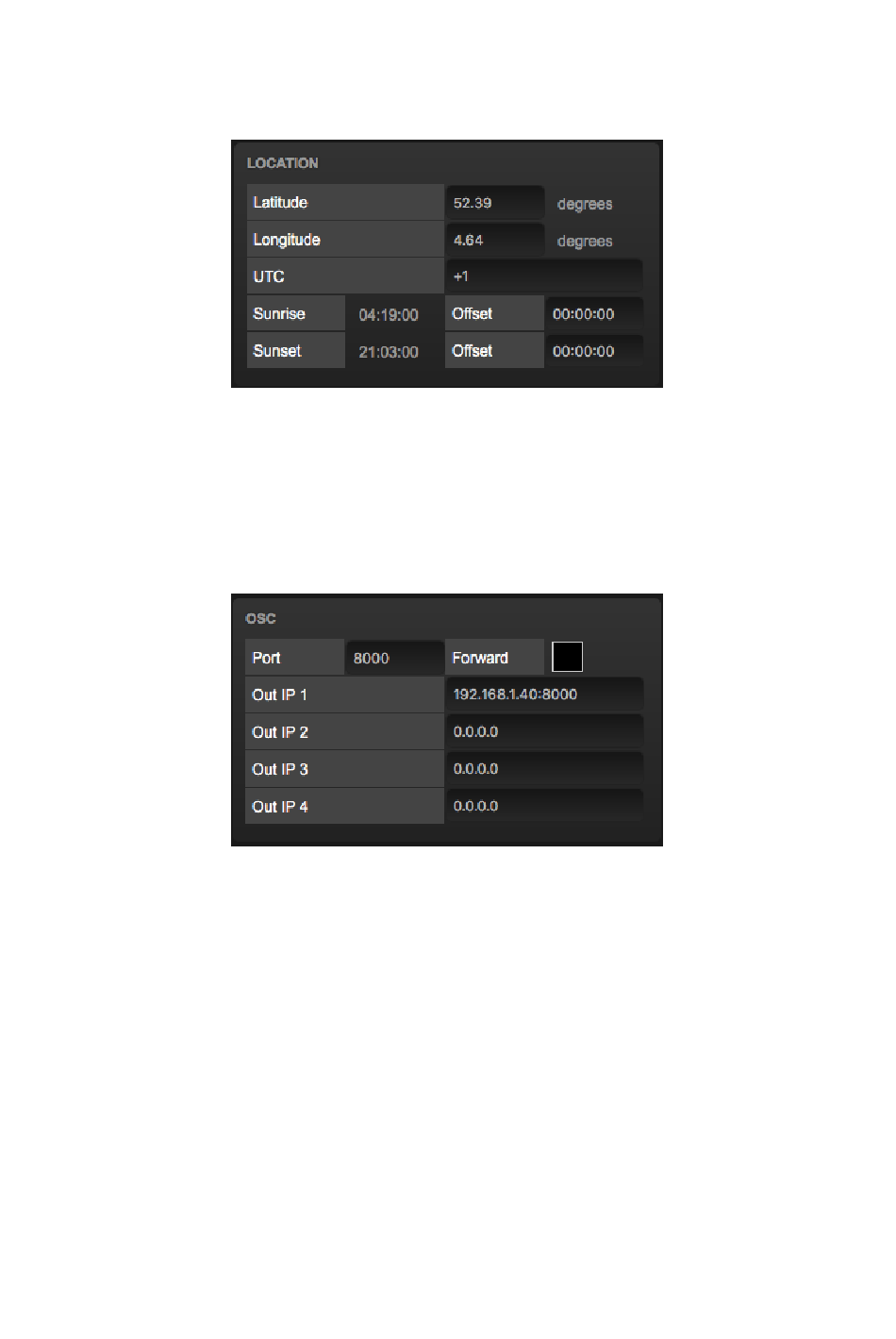

Figure 12.6: Location settings
Figure 12.7: OSC Settings
