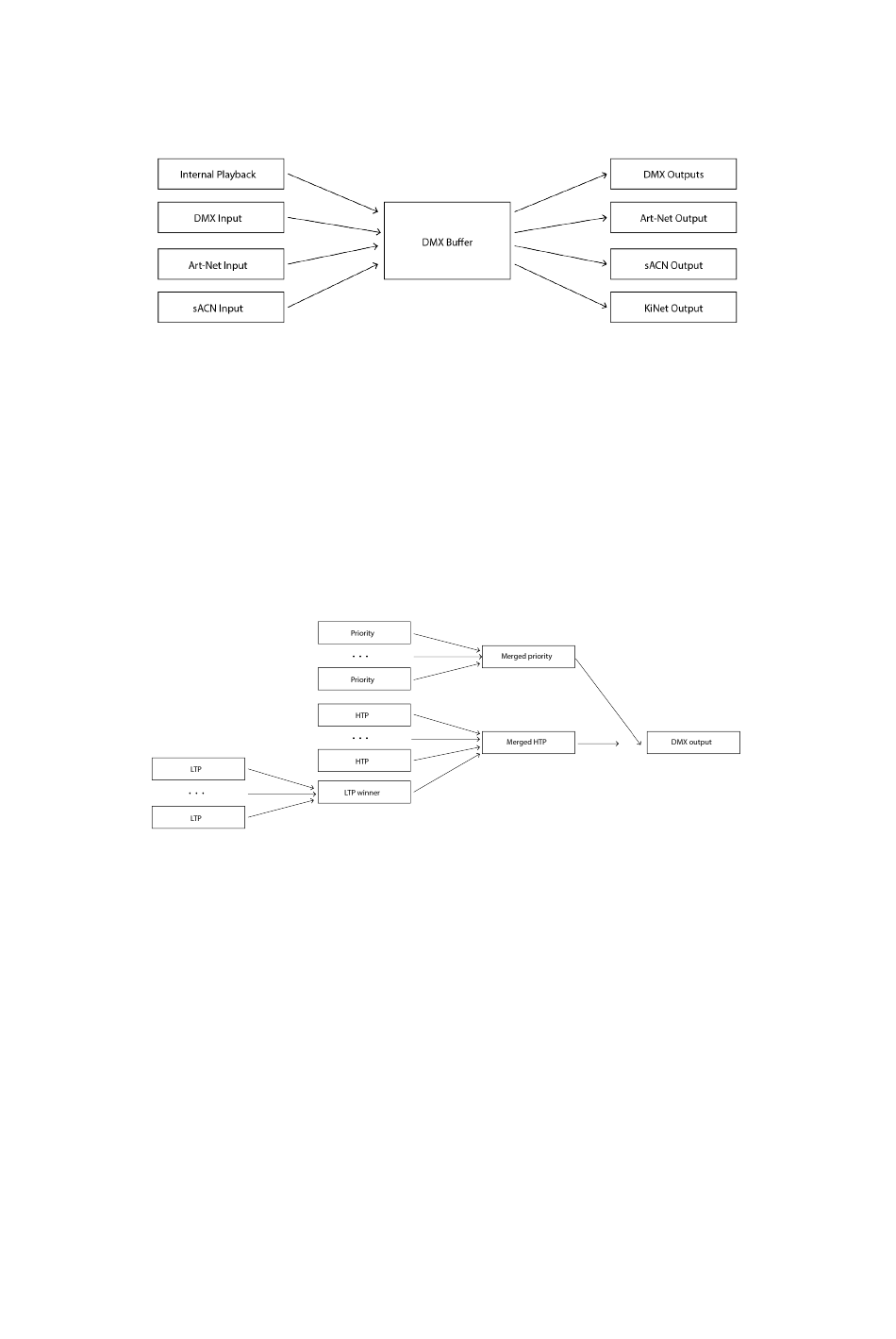

Figure 10.3: DMX merging data flow
The HTP precedence is the default choice where all channels are compared and
the highest levels are used for the merged output. Amongst all the playbacks
set to LTP only one of them is included in the HTP merge; the LTP playback
that has been activated latest. If there is task function set to Priority and this
signal is actively received, then this data will be send directly to the output,
temporarily suspending all HTP and LTP sources. When multiple conversions
are set to Priority then those will be merged according to highest takes prece-
dence. Figure 10.4 illustrates this mechanism.
Figure 10.4: DMX merging precedence
The additional 'Clear' function is not related to the data merging precedence;
it is just a function to clear the whole universe to zero.
Please note that the 'Templates' table provides pre-programmed configurations
for the most popular conversions.
A very typical conversion that can illustrate as an example is to convert Art-Net
universes 0.0 and 0.1 to DMX output A and B respectively. Figure 10.5 shows
action-list, figure 10.6 show the contents of 'Action 1' and figure 10.7 show the
required configuration of the Settings page.
