Visual Productions CUECORE2 Manual page 24

7. Test with netcat and monitor

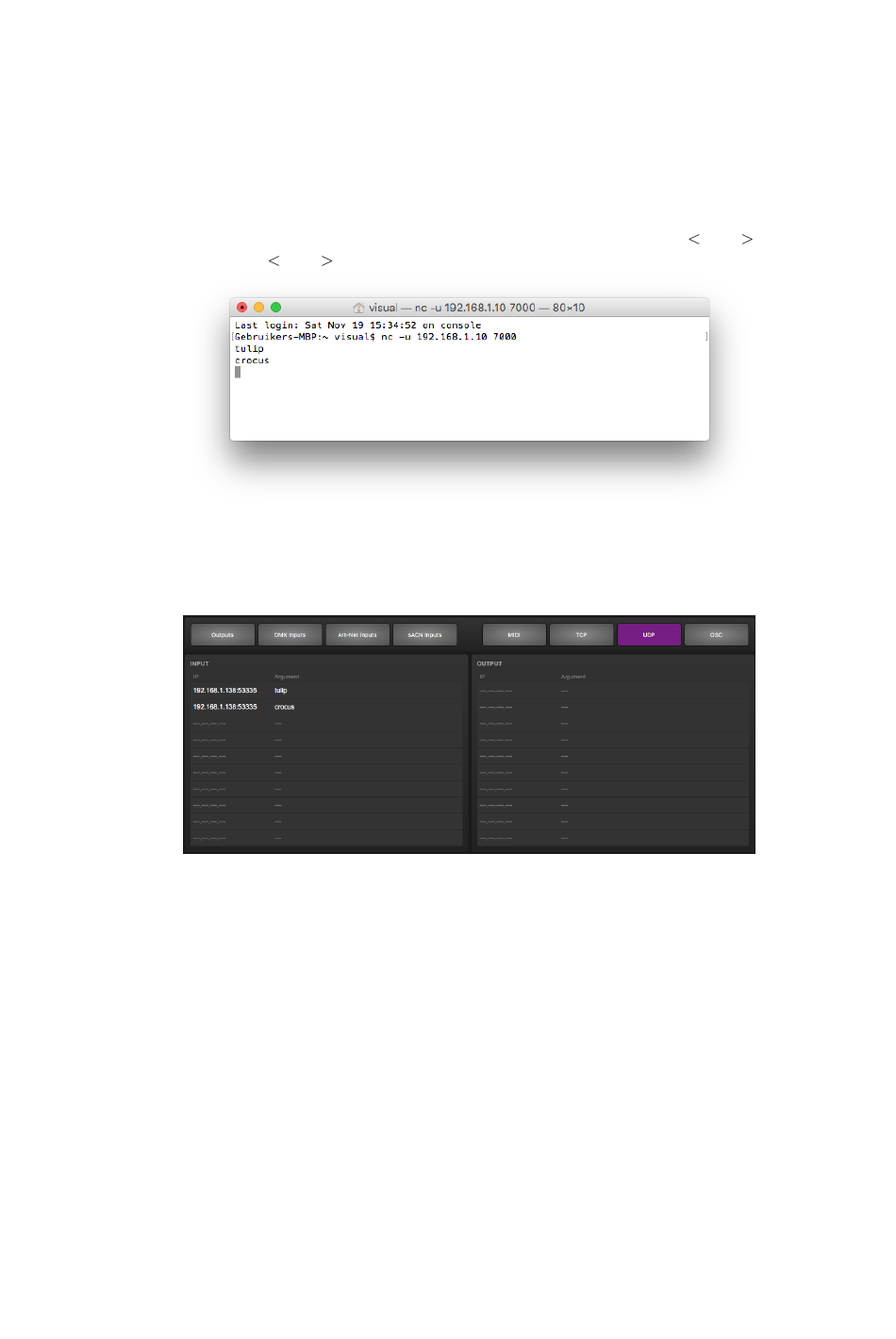

On your computer, use a simple command-line tool like netcat to send
a UDP string to the CueCore2. On Mac OSX netcat is started with
the command nc -u 192.168.1.10 7000 (replace 192.168.1.10 with IP
address of your CueCore2). From now on you can type tulip
or crocus enter
Go to the 'Monitor' page in your browser and select 'UDP In' to verify
your device is receiving the UDP messages correctly. On the 'Playback'
page you should see playback #1 respond to the incoming UDP com-
mands by activating either cue #1 or cue #2.
3.3 Record a show from an external DMX
The CueCore2 is capable of recording DMX data. This tutorial explains the
required procedure.
to send this messages to the CueCore2.
24
enter
