Monitors - Visual Productions CUECORE2 Manual

Chapter 11

Monitors

This page allows the user to inspect the incoming and outgoing data, both
DMX-type data (See figure 11.1) as well as control messages (See figure 11.2).
Monitoring incoming and outgoing data can help the user troubleshoot during
programming.

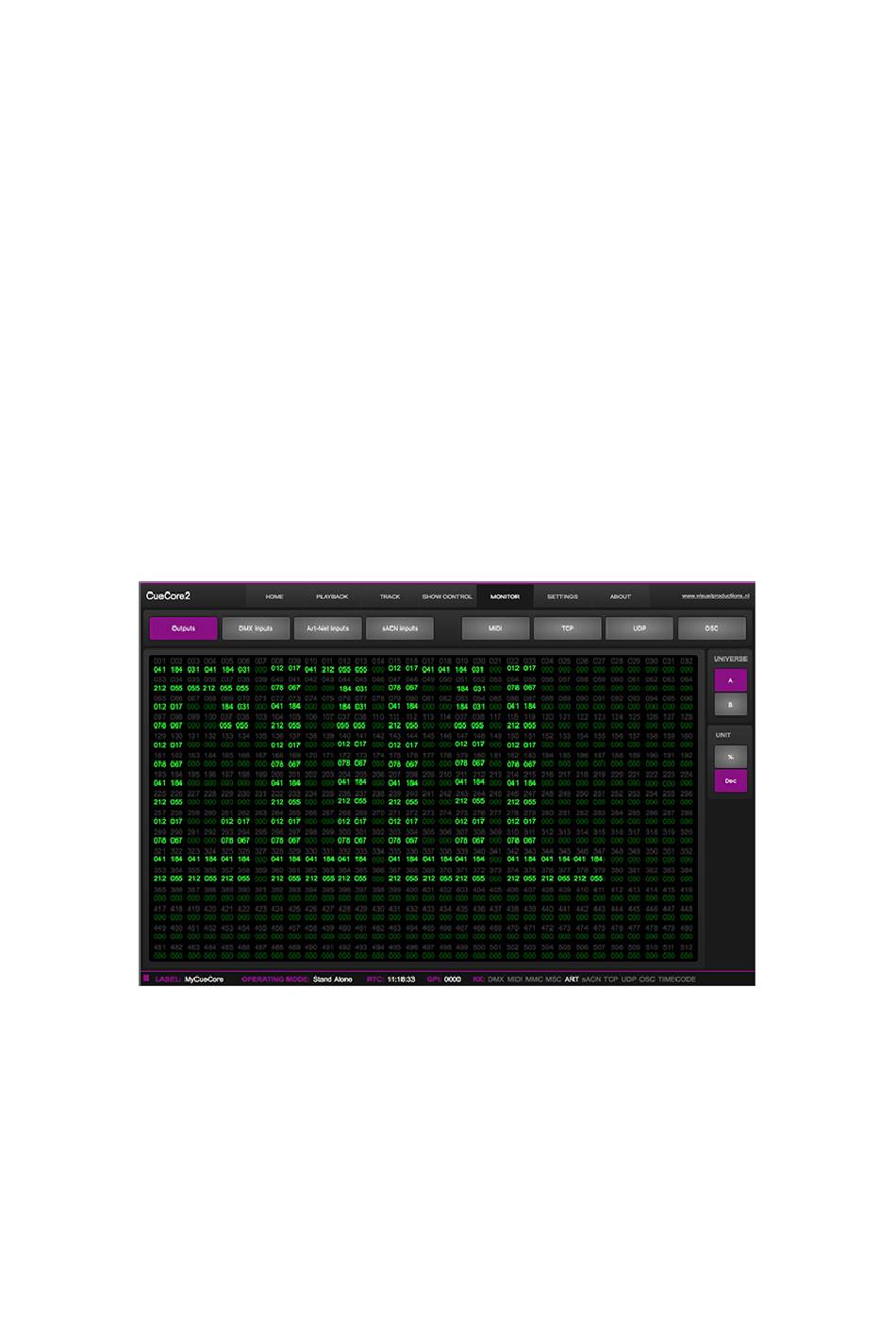

Figure 11.1: DMX Monitor page
In the Monitor page three different sources of input can be found (DMX, Art-
Net and sACN), along with the control input and output sources (TCP, UDP
and OSC). On the right side of the page there are the universes were the user
can swap between the four of them or choose a preferable unit for displaying
the requested information.
63
