84RT Series Speed Level™

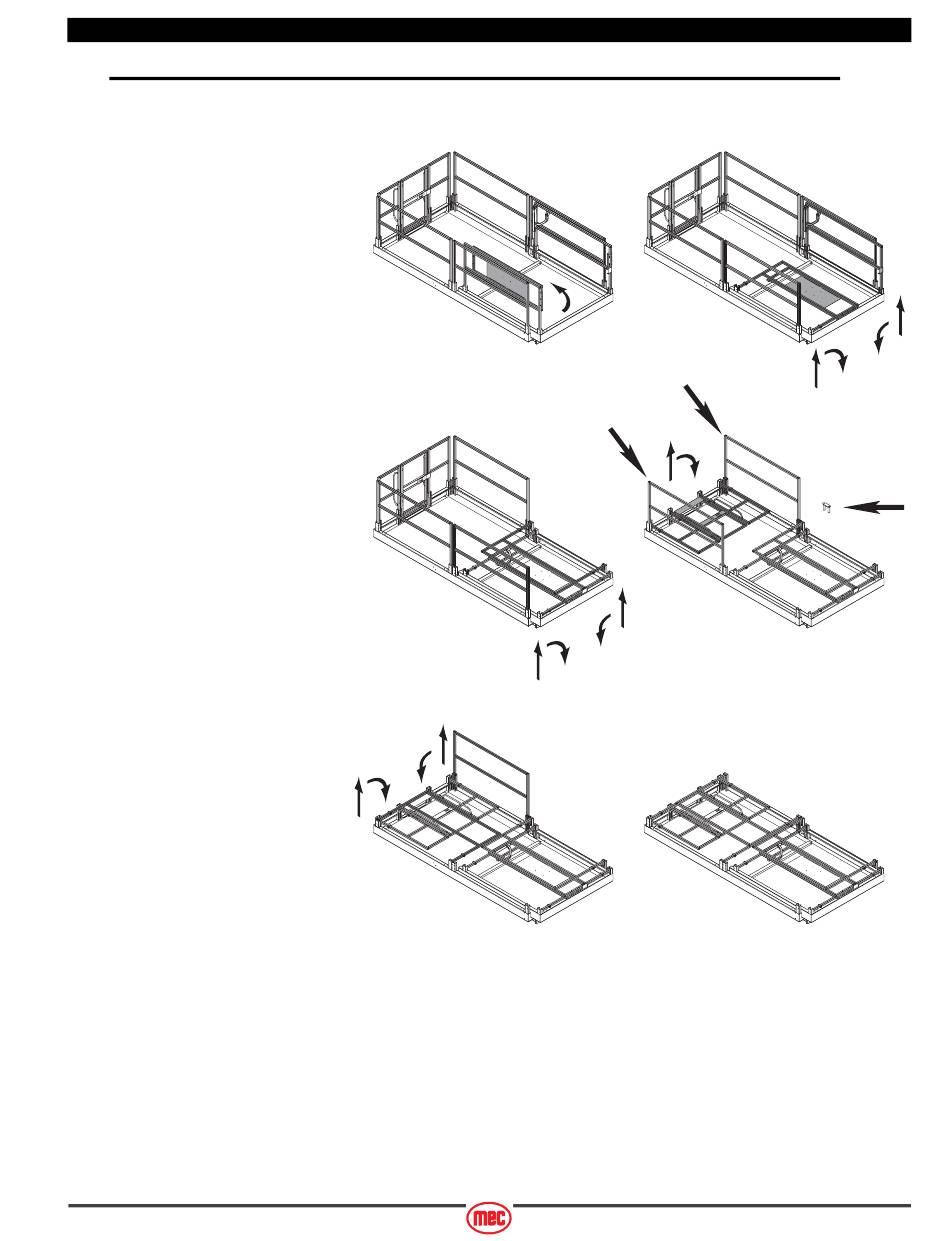

Fold Down Rails (continued)
1 Open & Secure
The Material Loading Gate
• Lift the upper Control Box off
the Deck Extension Rail and
place out of the way.
• Lift the gate latch and swing the
Material Loading Gate open.
• Secure the gate to the side
guardrail with the gate latch.
2
Lift & Lower
The Deck Extension Rails
• Lift and lower the right-side
deck extension rail.
• Lift and lower the left-side deck
extension rail.
3
Lift & Lower
The End Side Rails
• Lift and lower the left-side
end rail.
• Lift and lower the right-side
end rail.
4
Lift & Lower
The Entry Rails
• Remove the corner caps that
connect the rear side rails to
the entry rails.
• Lift and lower the gate-side
entry rail.
• Lift and lower the left-side
entry rail.
5
Lift & Lower
The Rear Side Rails
• Lift and lower the left rear
side rail.
• Lift and lower the right rear
side rail.
6
Guard rail fold-down is complete.
91857rev2– February 2013
1
3
5
To return the machine to normal operation mode:
• Lift all rails into their upright position, then push down to secure them in their sockets
• Install all corner caps and secure all gates
• Position the platform control box on the right side rail at the front of the deck extension.
DO NOT use the machine until all gates and guard rails are in position and properly secured.
Fold Down Platform Railings
2684 Models
2
4
6
Corner Cap
2 places
ART_3483
