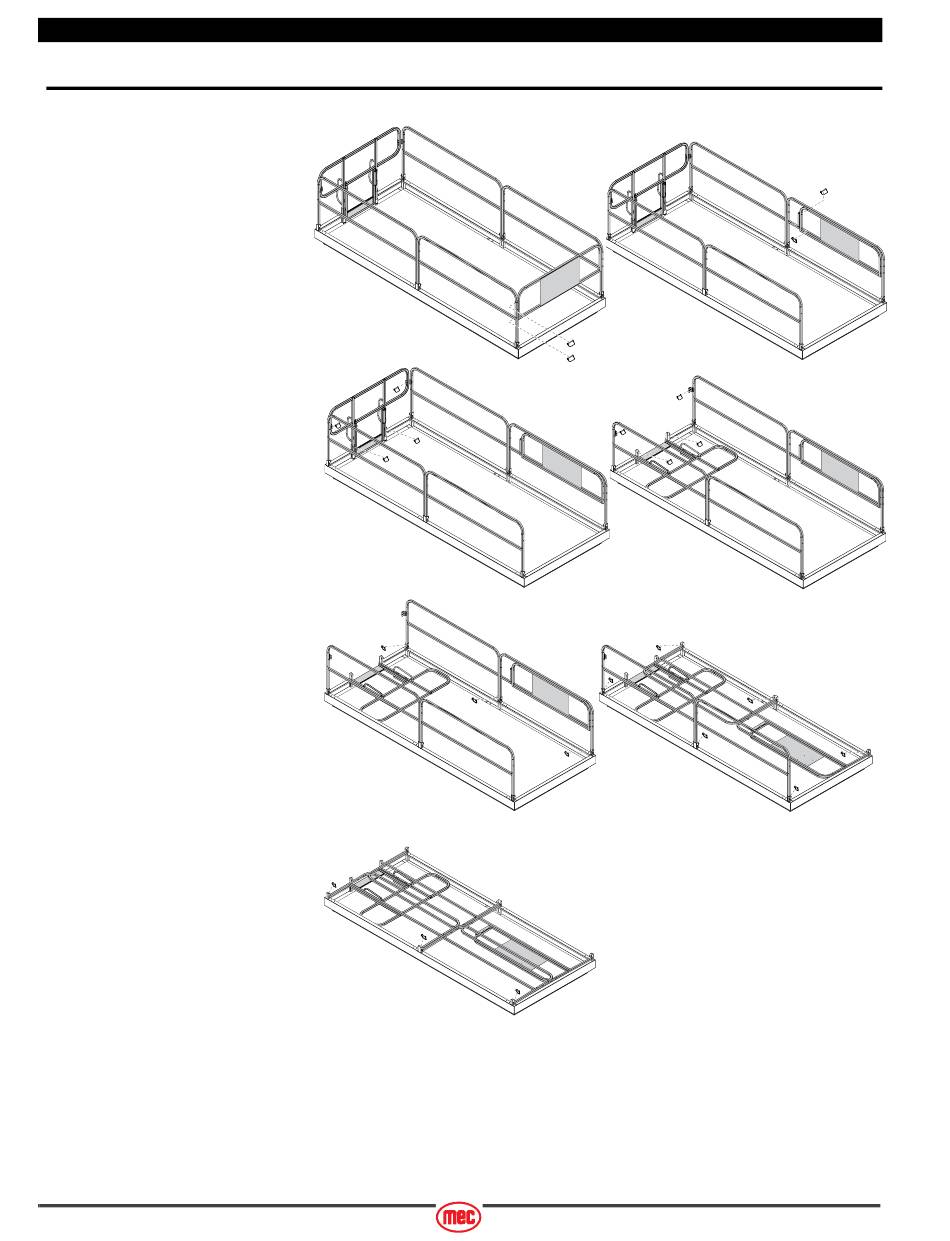

Fold Down Platform Railings

1 Open & Secure the Loading Gate
• Remove the 2 snap pins that
hold the loading gate to the
side guardrail.
• Swing the loading gate open
• Secure the gate to the side
guardrail using one of the
snap pins.
• Return the other snap pin to its
place.
2
Release & Lower the Entry Rail
• Remove the 2 snap pins from the
top corners of the entry guardrail.
• Remove the 2 snap pins from the
base of the entry guardrail.
• Lower the entry guardrail to
the platform floor.
• Return the snap pins to their places.
3
Release & Lower Left Side Rail
• Remove the 3 snap pins
from the base the guardrail
with the loading gate.
• Lower the guardrail and
loading gate to the
platform floor.
• Return the snap pins to their
places.
4
Release & Lower Right Side
Rail
• Remove the 3 snap pins from
the base of the right side
guardrail.
• Lower the guardrail to the
platform floor.
• Return the snap pins to their
places.
To return the machine to normal operation mode:
• Lift all rails into their upright position, then push down to secure them in their sockets
• Install all spring pins and secure all gates
• Position the platform control box on the right side rail at the front of the platform.
DO NOT use the machine until all gates and guard rails are in position and properly secured.
Page 20
Fold Down Platform Railings
