Chapter 4: Installing the E-CODER
)R450i™

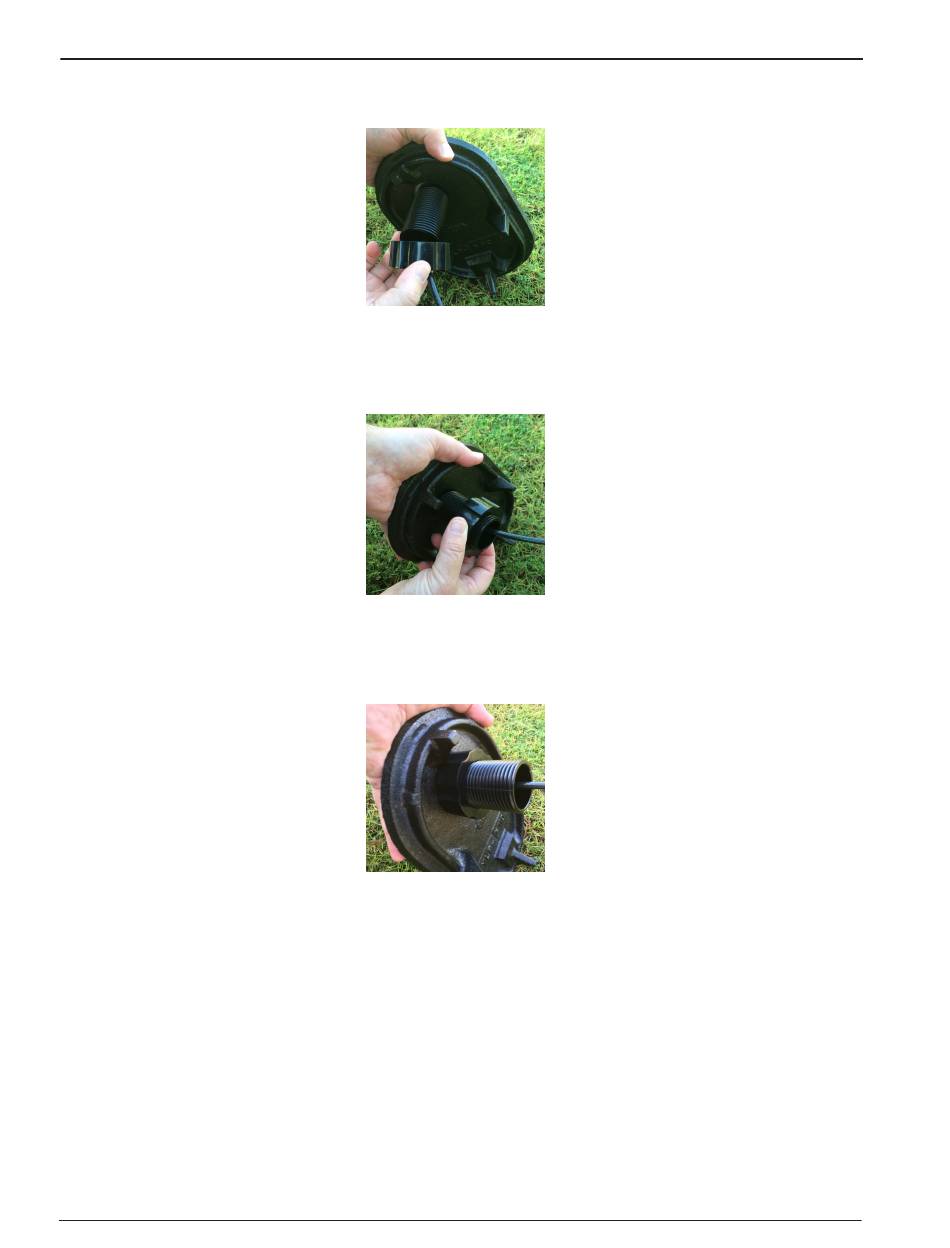

2. Thread the locking nut onto the antenna, smooth end toward lid.
Figure 5 – Locking Nut on Antenna
3. Hand tighten the nut securely to the lid.
Figure 6 – Secure the Locking Nut
This figure shows a completed installation of the antenna.
Figure 7 – Installation Complete
E-CODER ®
10
)R450
i ™ Installation and Maintenance Guide
