Page 162 of 408 Installing System Controller Cards

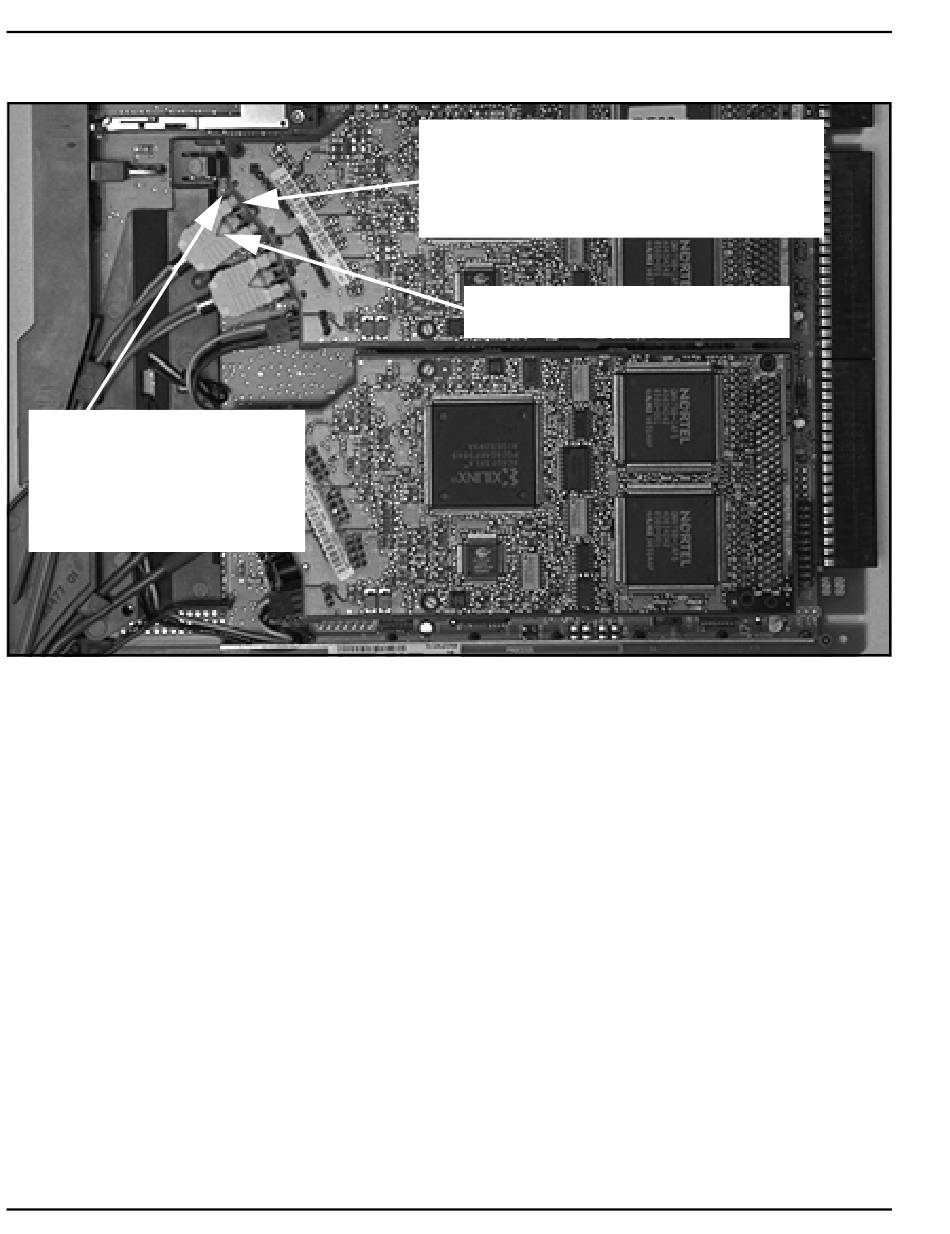

Figure 68
Plastic Fiber Cable Connection on Dual Port Daughterboard
If the connector is equipped
with a marking, it should be
hidden by the clasp when
properly connected.
553-3021-210 Standard 7.00
Procedure 17
Installing glass fiber optic cable:
1 Put on the anti-static wrist strap.
2 Place the SSC card on a clean flat surface.
3 Remove the protective plugs from one connector on the Fiber
Daughterboard.
4 Remove the protective cap from the corresponding plug (Tx or
Rx) on the glass fiber optic cable.
5 Insert the plug in its designated connector on the daughterboard.
Once inserted, lock the connector in place by turning it a half turn
clockwise. Refer to Figure 69 on page 163.
6 Repeat the steps above for the remaining connector and plug.
January 2002
Insert the connector firmly. A distinct
'snapping' sensation is felt when the
connector is properly seated and the clasps
are engaged.
'V' shaped groove facing outward
