Hardware description

1
Hardware description

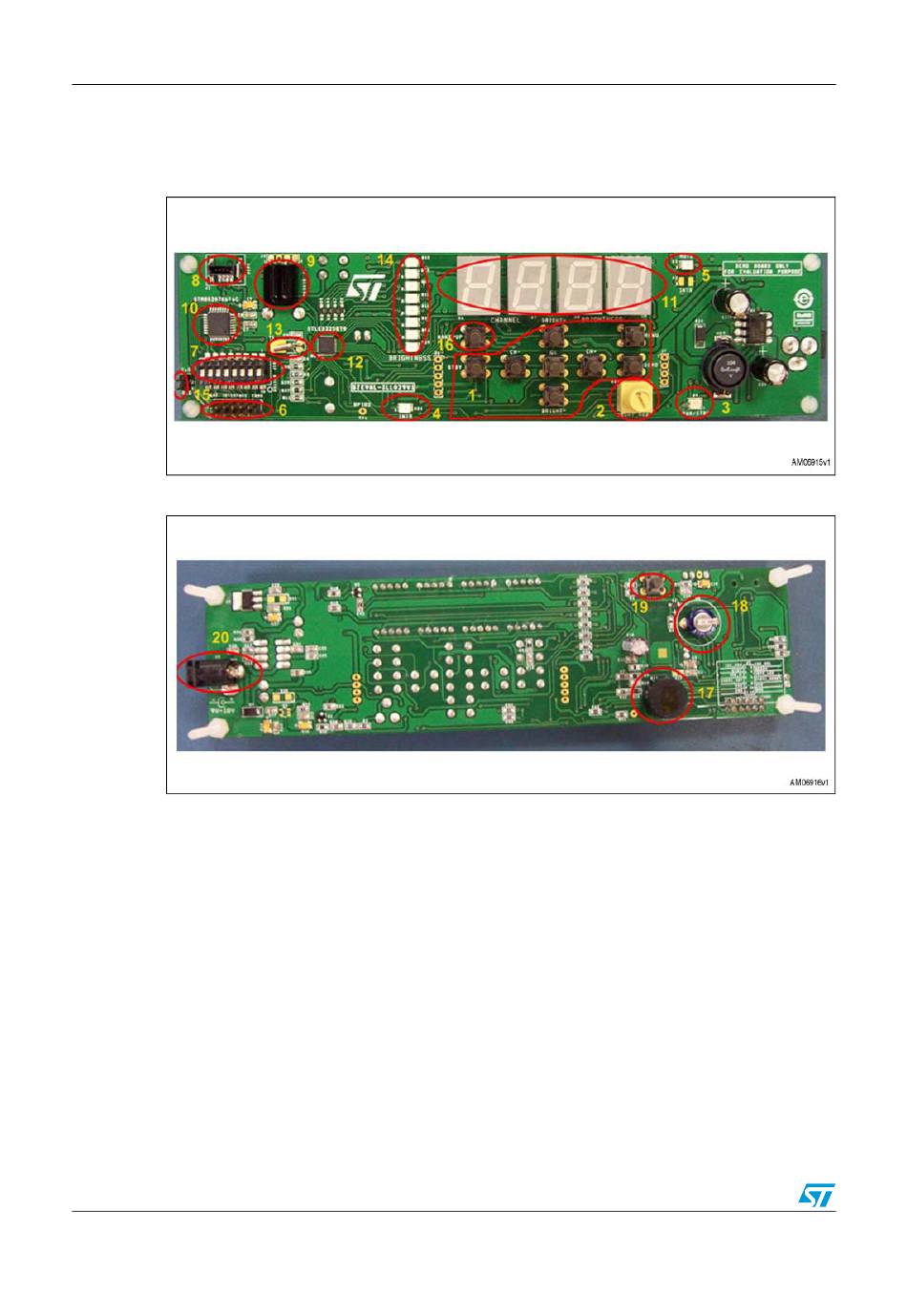

Figure 2.
Figure 3.
Major components present on the board are (the numbers in parentheses refer to the
numbers marked on the board images):
8 front panel keys (1): CH+, CH-, BRGHT+, BRGHT-, STBY, MENU, OK, DEMO
BRGHT_ADJ potentiometer (2)
PWR/STBY LED (3)
Interrupt LED (4)
MUTE LED (5)
External host interface connector (6)
DIP switch (7)
SWIM connector (8)
IR sensor circular header (9)
STM8S207K6 microcontroller (10)
4/22
www.BDTIC.com/ST
Demonstration board front view
Demonstration board rear view
Doc ID 17476 Rev 1
UM0943
