UM0943
● 7-segment (+dot) display (11)
● STLED325 (12)
● 32.768 kHz RTC crystal (13)
● 8 discrete LEDs for brightness (14)
● UART pinouts (15)
● Wake-up key: WAKE UP (16)
●
DC buzzer for alarm function (17)
●
Super cap for backup (18) (battery backup can be replaced by a lithium ion battery for
longer backup time)
● System reset switch (19)
● DC power jack (20)
1.1

Power supply unit

The board is equipped with a DC jack into which an external adaptor (9 V-18 V, 500 mA) can
be plugged. The board consists of a 5 V output switching regulator for higher efficiency and
a 3.3 V output linear regulator onboard to give regulated outputs, as required. The board
may also be powered up using a PC laptop adaptor. The user must ensure that the external
PSU jack is of the center positive type, although reverse polarity does not damage the
demonstration board. A bicolor "PWR/STBY" LED (D4) is shown in
normal operation the PWR/STBY LED is green and turns red when the system is in standby
condition.

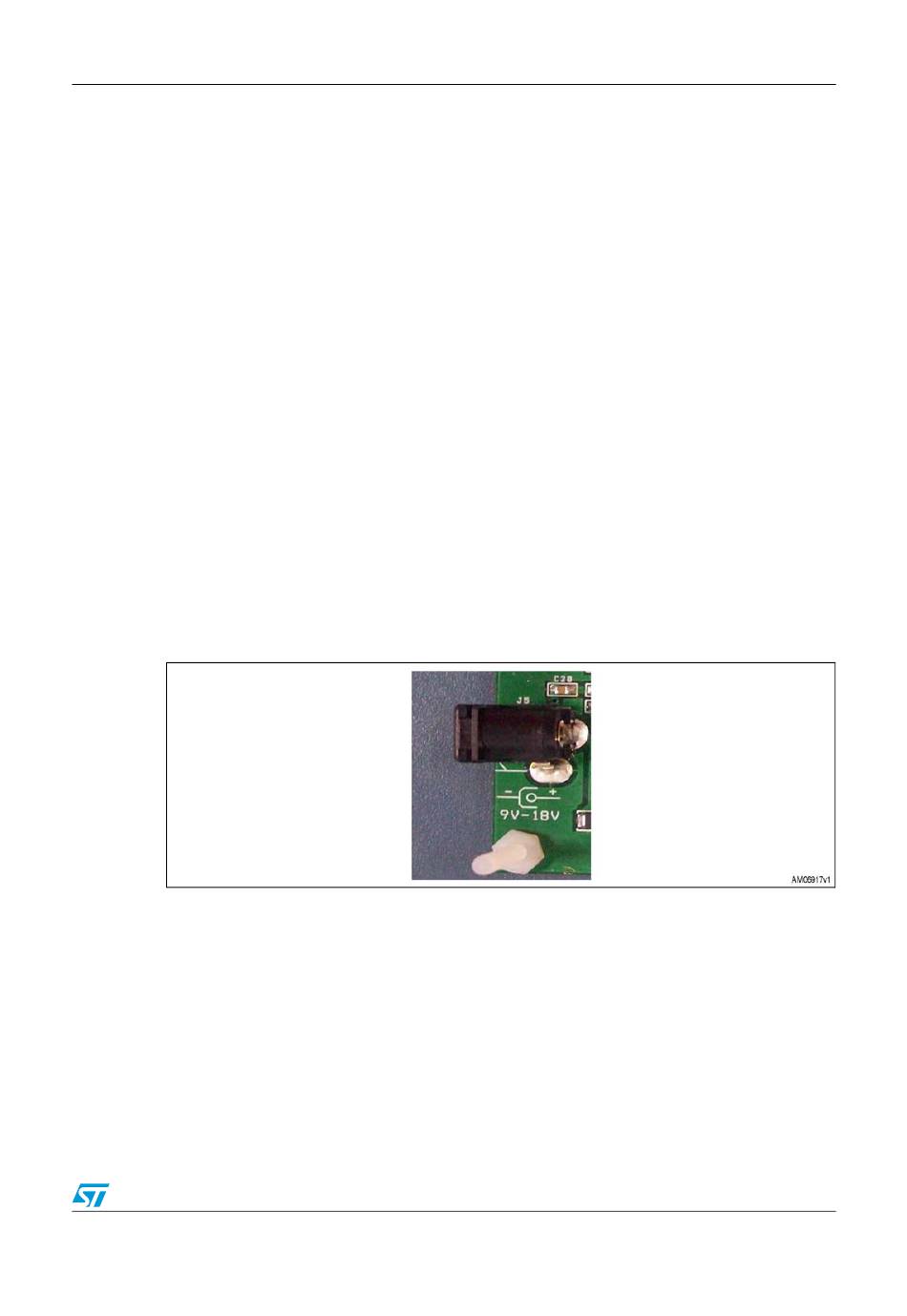

Figure 4.
www.BDTIC.com/ST
DC power jack
Doc ID 17476 Rev 1
Hardware description
Figure 2. When in
5/22
