Standby Mode/Hot Keys; Figure 8. Example Rc5 Remote - STMicroelectronics STEVAL-ILL029V1 User Manual

UM0943
The following RC operations can be done using the IR decoding feature of the STLED325:
●
Device address programmed: 0x08
●
Channel up (key value: 7 and key value: 45)
●
Channel down (key value: 14 and key value: 44)
●
Brightness increase (key value: 8)
● Brightness decrease (key value: 27)
● Demo (key value: 21)
● Standby (key value: 12)

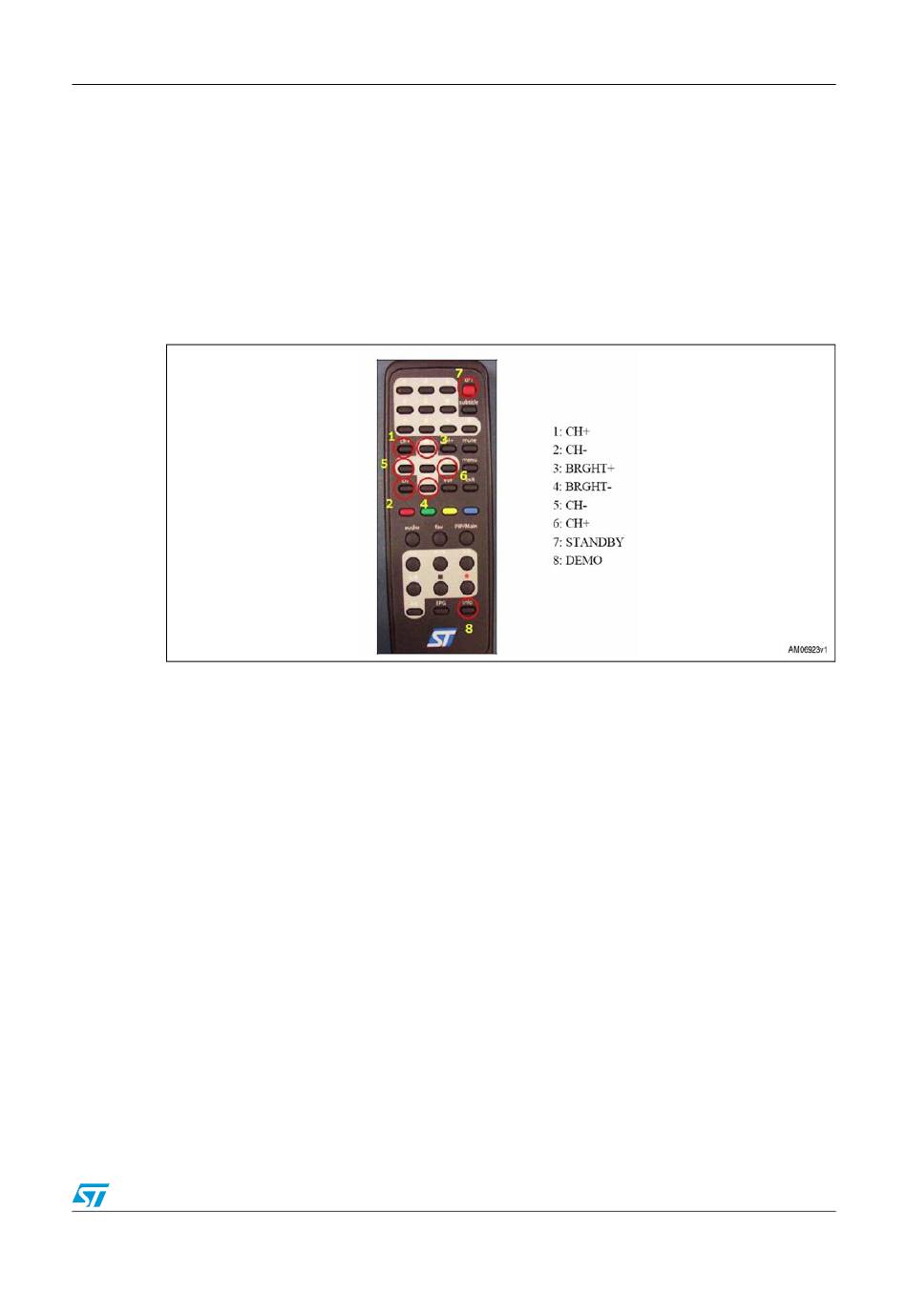

Figure 8.
3.6

Standby mode/hot keys

The STLED325 also features standby power management to host. The system can enter
into standby mode by:
●
Pressing the front panel standby key
●
Remote control standby key
On entering standby mode PWR/STBY LED (D4) turns red. MUTE LED (D3) also turns ON.
"STBY" is displayed on the LED panel for about two seconds (refer to
the complete display is blanked (discrete LEDs also turned off, refer to
system was in display RTC mode (time/date display) when the standby key was pressed,
the 7-segment display does not get blanked but displays RTC during standby mode.
(discrete LEDs are off). During standby all the front panel and RC keys except the hot keys
are non-functional.
