Step 2
1. Remove the Balance block 1 (43), Balance block 2 (44), Balance block 3 (45) from the
Handlebar frame (4).

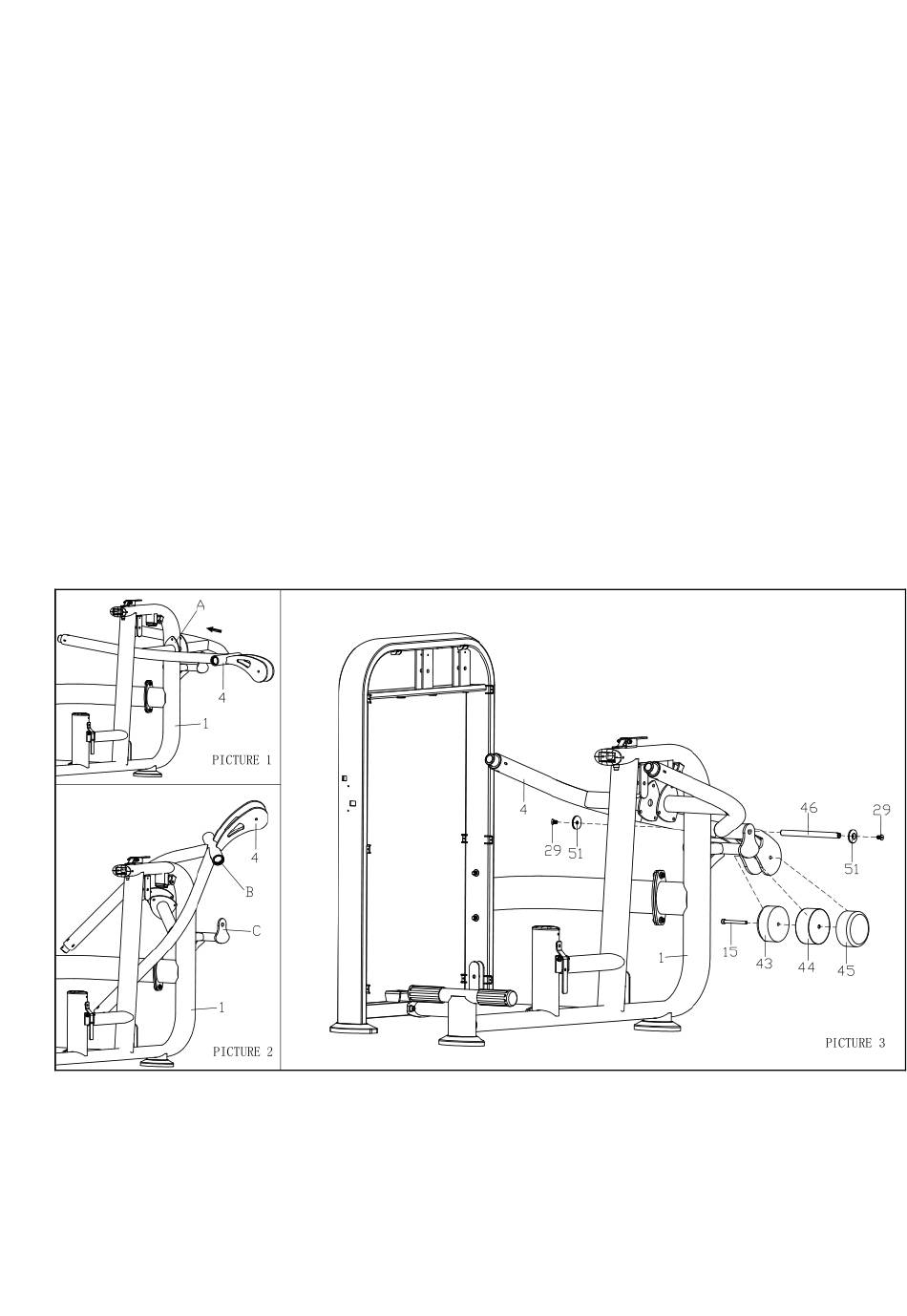

2. Install the Handlebar frame (4) according to the angle as the picture 1 shown, when the
part A of the Handlebar frame (4) pass through the Seat frame (1), please rotate the Handlebar
frame (4) counterclockwise till it like the picture 2 shown, then Lift the Handlebar frame (4) up
obliquely, make the part B of the Handlebar frame (4) align to the part C of the Seat frame (1),
like the picture 3 shown.
3. Lock the Handlebar frame (4) on the Seat frame (1) with the Hex countersunk head bolt (29),
End cap (51) and Shaft pin (46).
4. Lock the Balance block 1 (43), Balance block 2 (44), Balance block 3 (45) on the Handlebar
frame (4) with Hex socket head cap bolt (15). (Please be careful when you install the balance
block, do not let the balance block fall-down and injure you.)
