Dmx Chart - Event Lighting ORBIT2 User Manual

IR Remote
Button
Black Out
Auto
Sound
Strobe
Fade/ Jump
Sensitivity
R/G/B/W/A/UV/W
+
-
0-8
9

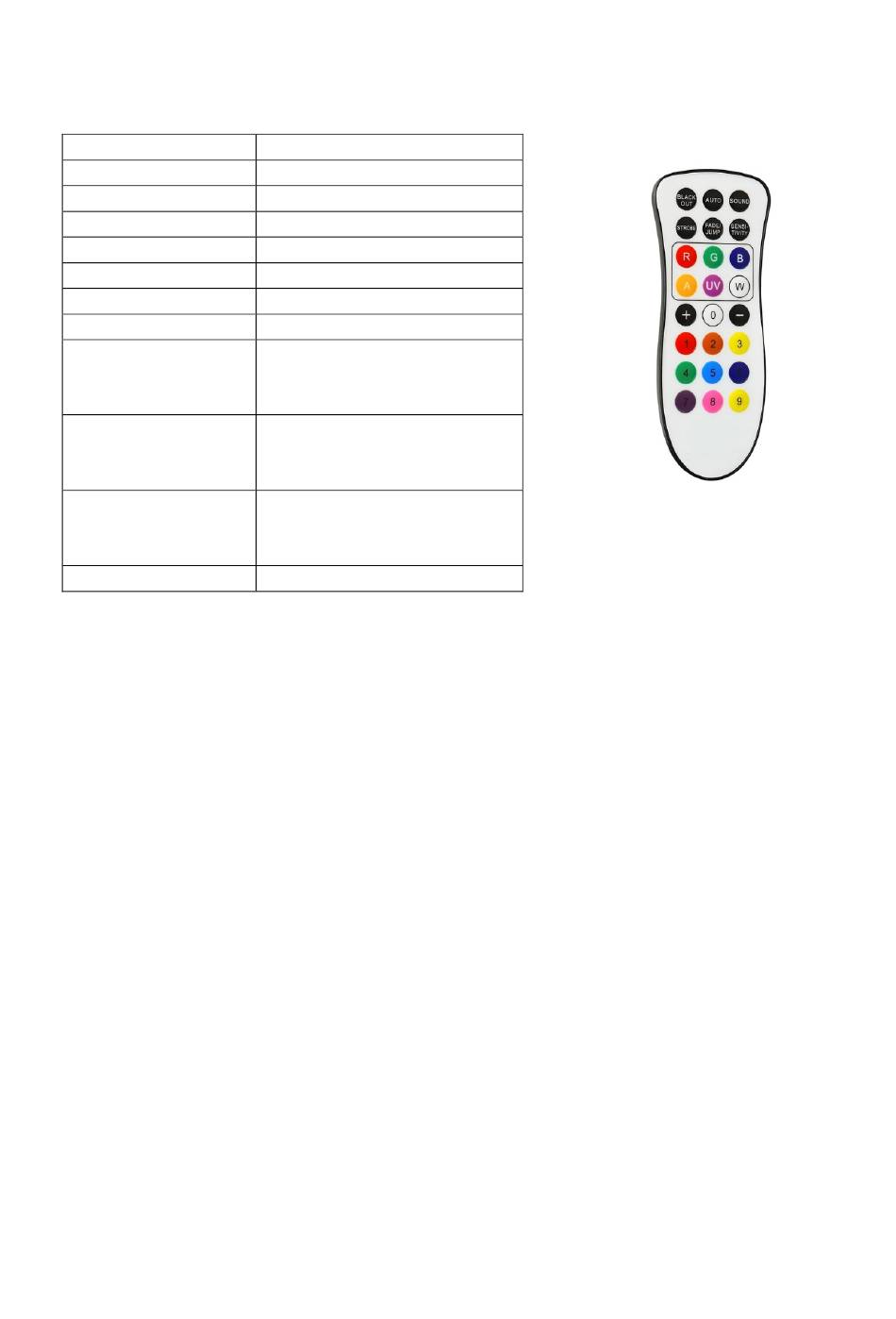

DMX Chart

The device is controlled by universal DMX 512 protocol, DMX address is the start channel used
to receive instructions from the external controller. For independent control, each fixture must be
assigned its unique address control channels. For example, this device has three channel
modes: 2/11, if we set the mode to standard 2 channels mode, and there are several models that
need to be independently controlled, we just simply address first fixture at 1, and second fixture
at 3, third one at 5, etc.
•
If the devices have the same address, they will behave synchronically.
•
Display is flashing when no DMX signal is received.
Description
Turn on/off
Autoplay
Sound Active mode
Strobe mode
No Function
Adjust sound sensitivity
No Function
Increase parameter (strobe
speed, sound sensitivity, auto
speed)
Decrease parameter (strobe
speed, sound sensitivity, auto
speed)
Switch between functions in
Auto Mode and Sound Active
Mode
No Function
