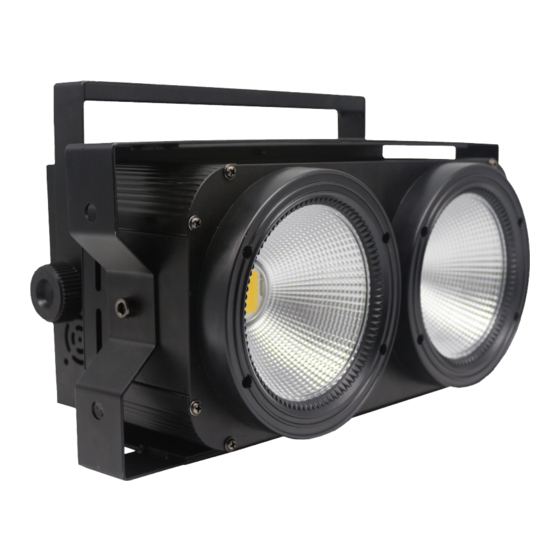

Model No. BLINDER2100, BLINDER2100W
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
BLINDER
USER MANUAL
www.event-lighting.com.au
Ver 3.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting BLINDER Series
Summary of Contents for Event Lighting BLINDER Series
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
-
Page 2: Table Of Contents
www.event-lighting.com.au CONTENTS Safety Instructions Power input & power Linking Product Installation Fuse replacement Diagrams Lux chart Dimensions Fade Mode Chart Control Board Operation DMX address setting DMX modes setting Dimmer Speed Setting Static colour setting Manual colour setting Auto run and sound active setting Master/slave setting DMX chart Technical specifications... -
Page 3: Safety Instructions
www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 4: Control Board Operation
www.event-lighting.com.au CONTROL BOARD OPERATION Blinder2100W Display Options / Values Function A001 <001> - <512> Set DMX address for 8 channel mode D001 <001> - <512> Set DMX address for 4 channel mode CC50 <01> - <99> Select auto colour switch mode at different speed DE50 <01>... -
Page 5: Dmx Chart
www.event-lighting.com.au DMX Chart Blinder2100W 4 channels Mode Channel Value Function 000-255 Cool white 1: 0% ~ 100% 000-255 Warm white 1: 0% ~ 100% 000-255 Cool white 2: 0% ~ 100% 000-255 Warm white 2: 0% ~ 100% Blinder2100W 8 channels Mode Channel Value Function... - Page 6 www.event-lighting.com.au Blinder2100 8 channels Mode Channel Value Function 000-255 Red 1: 0% ~ 100% 000-255 Green 1: 0% ~ 100% 000-255 Blue 1: 0% ~ 100% 000-255 White 1: 0% ~ 100% 000-255 Red 2: 0% ~ 100% 000-255 Green 2: 0% ~ 100% 000-255 Blue 2: 0% ~ 100% 000-255...
-
Page 7: Technical Specifications
4-button LED Display Control Panel DMX Protocol DMX512 DMX Channel Mode 4 / 8 8 / 12 DMX Interface 3-Pin XLR Input / Output WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au.
