Menu Operation

Menu
Display
Addr
ChNd
SLNd
Soun
Auto
Led
diSP
Ver
5

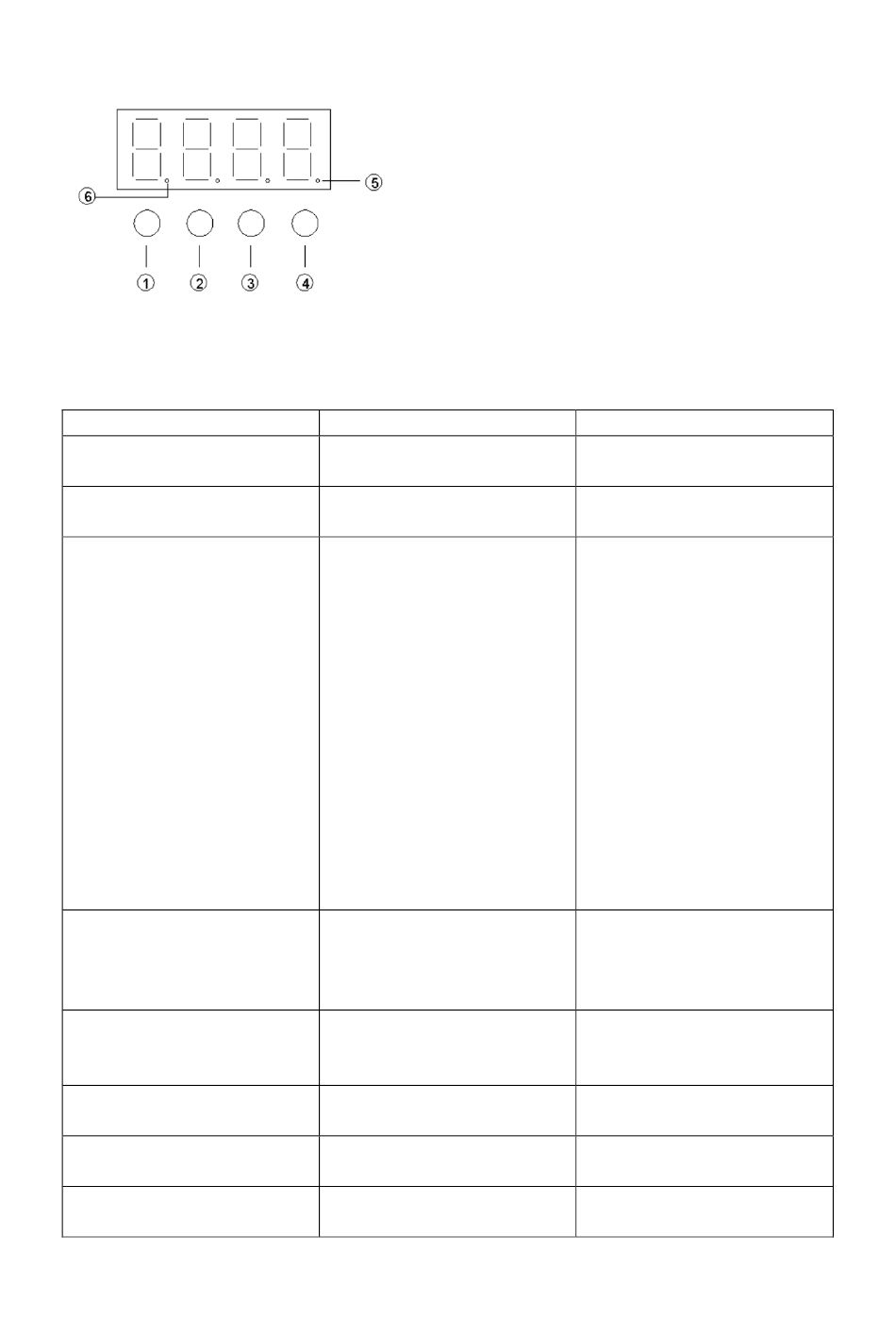

1. Menu – Move up a level.
2. Up – Move selection up one item.
3. Down – Move selection down one item.
4. Enter – Select / Move down a level.
5. DMX Signal LED indicator. LED will flash when
DMX connected.
6. Master/Slave mode indicator. LED will flash when
in Slave mode.
Function
DMX Address
DMX Channels
Master/Slave Mode
Sound Mode and Sound
Sensitivity
Auto-run Mode
Display backlight
Display normal/inverted.
Software Version
www.event-lighting.com.au
Description
Change DMX Address (A001-
A512).
Change DMX Channel Mode
(2Ch / 11Ch).
Change between Master
(NASt) and Slave (SL1/SL2)
mode.
In Slave Mode 1 (SL1), slave
fixtures will follow the Master
fixture when in Sound Active
Mode.
In Slave Mode 2 (SL2), each
slave fixture will use its own
microphone and behave
independently when in Sound
Active Mode.
When not in Sound Active
Mode, SL1 and SL2 function
identically.
Change between Sound
Active Modes (So0-So8) and
Sound Sensitivity (Se00-
Se99)
Change between Auto-run
Modes (Aut0-Aut8) and Auto-
run Speed (SP1-SP9)
Turn the display backlight on
or off.
Switch between normal or
inverted display mode.
Display the current software
version.
