Event Lighting SABER2 User Manual

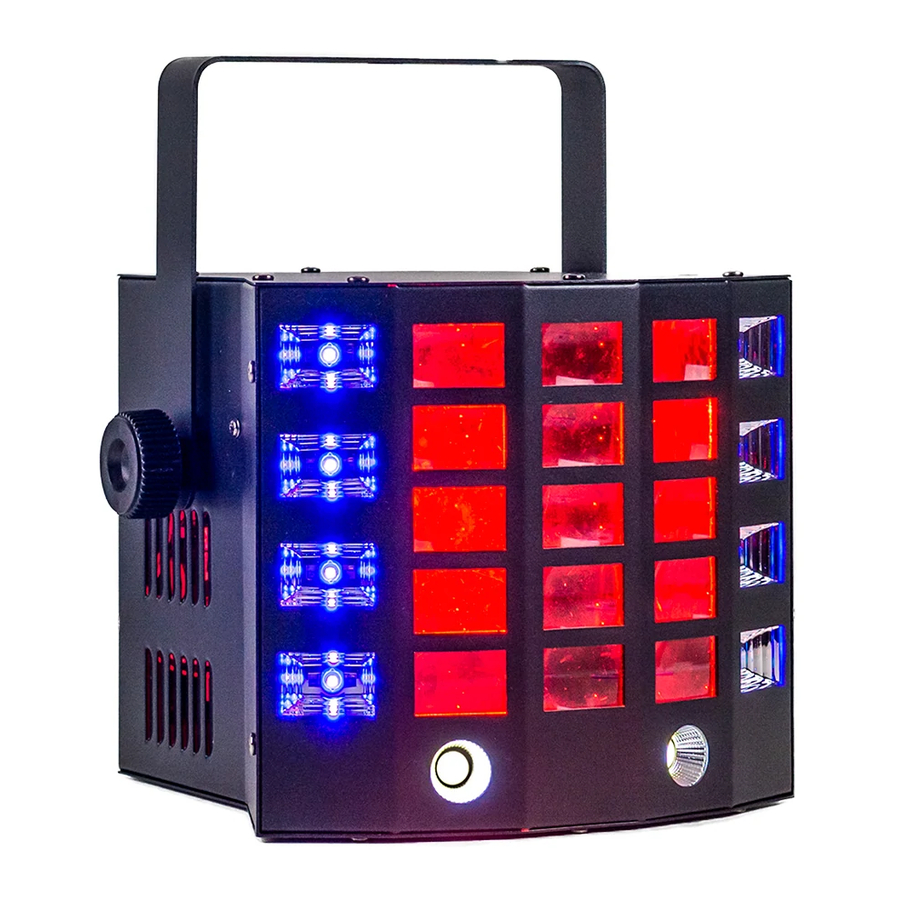

3-in-1 disco effect featuring derby, uv and strobe
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

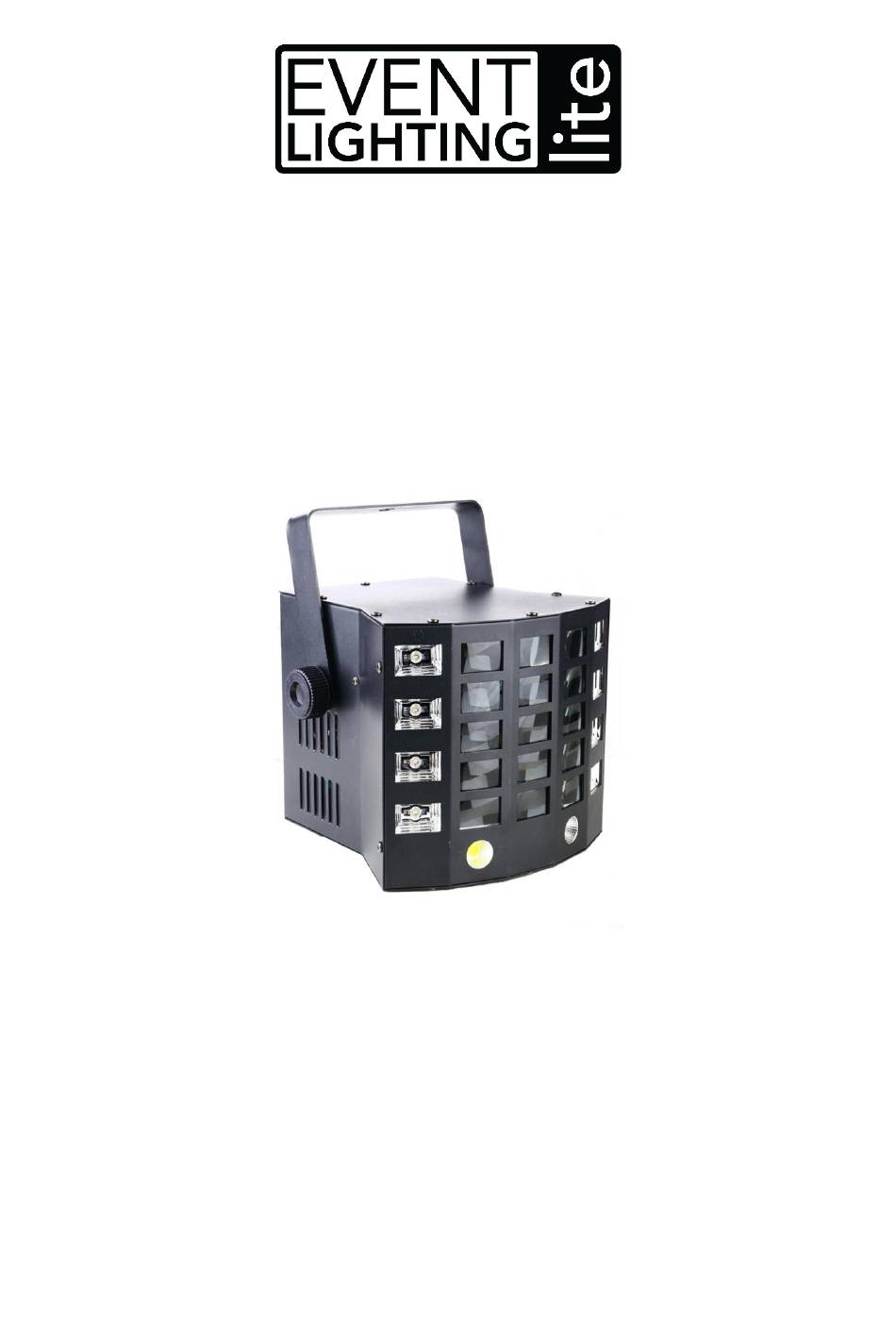

SABER2
3-in-1 Disco Effect Featuring Derby, UV and Strobe
USER MANUAL
For your safety, please read this user manual carefully before use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SABER2 and is the answer not in the manual?

Questions and answers

Related Manuals for Event Lighting SABER2

Summary of Contents for Event Lighting SABER2

  • Page 1 For your safety, please read this user manual carefully before use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.

  • Page 2: Safety Instructions

    Stop using this device immediately if a serious operating problem becomes apparent. Product Installation SABER2 can be mounted in many orientations, provided each individual device is secured by the use of the correct mounting bracket. Use a safety chain when mounting SABER2 overhead.
  • Page 3 www.event-lighting.com.au Dimensions...

  • Page 4: Control Panel

    www.event-lighting.com.au Control Panel Buttons (1) MENU – Select program functions. (2) ENTER – Confirm the selected function. (3) UP – Increase parameters. (4) DOWN – Decrease parameters. Input and Output (5) IEC power in. (6) 3-pin DMX in. (7) 3-pin DMX out.

  • Page 5: Dmx Chart

    www.event-lighting.com.au Menu Display Function Value/Description Addr DMX Address A001-A512 SLAV Master/Slave No/Yes A1-1 ~ A1-9 Derby effects Red, 1-9 to adjust motor speed. A2-1 ~ A2-9 Derby effects Green, 1-9 to adjust motor speed. A3-1 ~ A3-9 Derby effects Blue, 1-9 to adjust motor speed. A4-1 ~ A4-9 Derby effects White, 1-9 to adjust motor speed.

  • Page 6: Technical Specifications

    Operation modes: DMX, Manual, auto, sound active, master/slave • Display: LED Display with 4-button control. Housing • Finishing: Matte Black. • Net Weight: 2.15kg • Dimensions: 260x260x250 mm (packaging). Warranty Please refer to your local dealer or contact Event Lighting.
