Removing the Back
B: For Mid Storage Tall
Shared Slider Units
1.
Remove both outer sides by
performing steps 1 and 2 on page 2.
2.
Remove the top by performing
steps 2 and 3 on page 3.
NOTE: Just remove the (1/2) back
that needs to be replaced.
3.
The back pops in and out. Gently
slide a putty knife in at the top and
use it to flex the back flange out of
the track (3a). Start at one end and
work across. The flange will "unzip".
Remove the back (3b).
NOTE: A wide putty knife may work
better.
4.
To re-install the back, flex the
bottom so the tabs insert into the track.
Then carefully flex/feed the top into
its track until it pops/springs into
place.
NOTE: Align the center hook feature,
on the back, to the center slot in the
track.
4
Side View

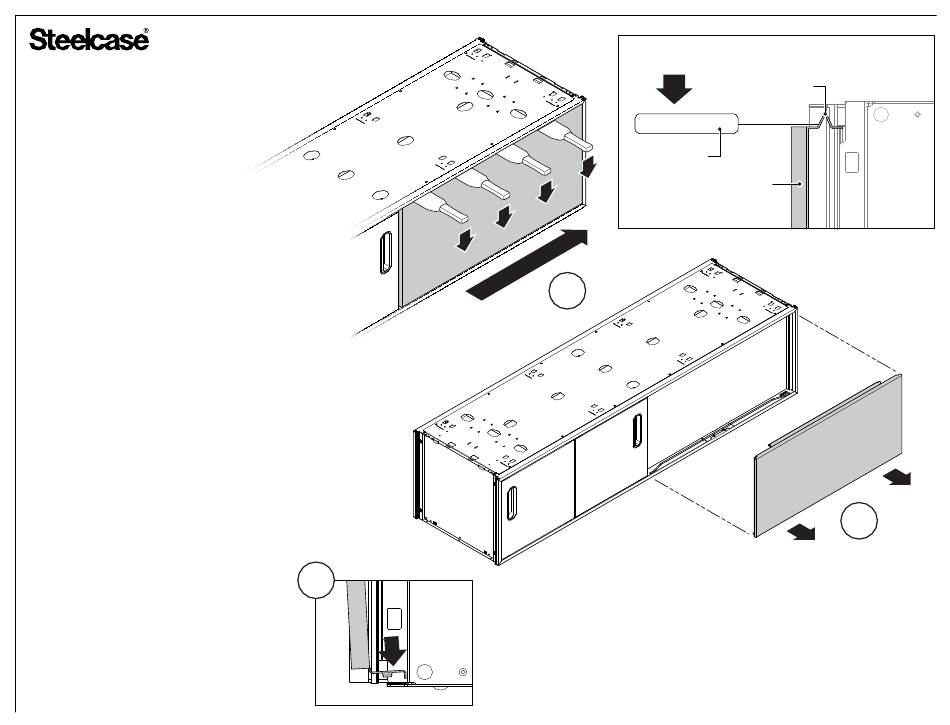

BACK FLANGE
PUTTY
KNIFE
3a
BACK
3b
Page 5 of 5
939500421 Rev A
