Steelcase c:scape Replacement Manual page 4

Removing the Back
A: For All Units Except
Mid Storage Tall
Shared Slider Units
1.
Remove both outer sides by
performing steps 1 and 2 on
page 2.
2.
Remove the top by
performing steps 2 and 3 on
page 3.
NOTE: For a shared tall unit,
just remove the (1/2) back that
needs to be replaced.
3.
Remove the #8-18 x 3/8"
screws (outer row of screws)
securing the back from the top
(3a) for each top. (Number of
screws will vary depending on
size and configuration.) Remove
the back (3b).
4.
To re-install the back, reverse
steps 1 thru 3.

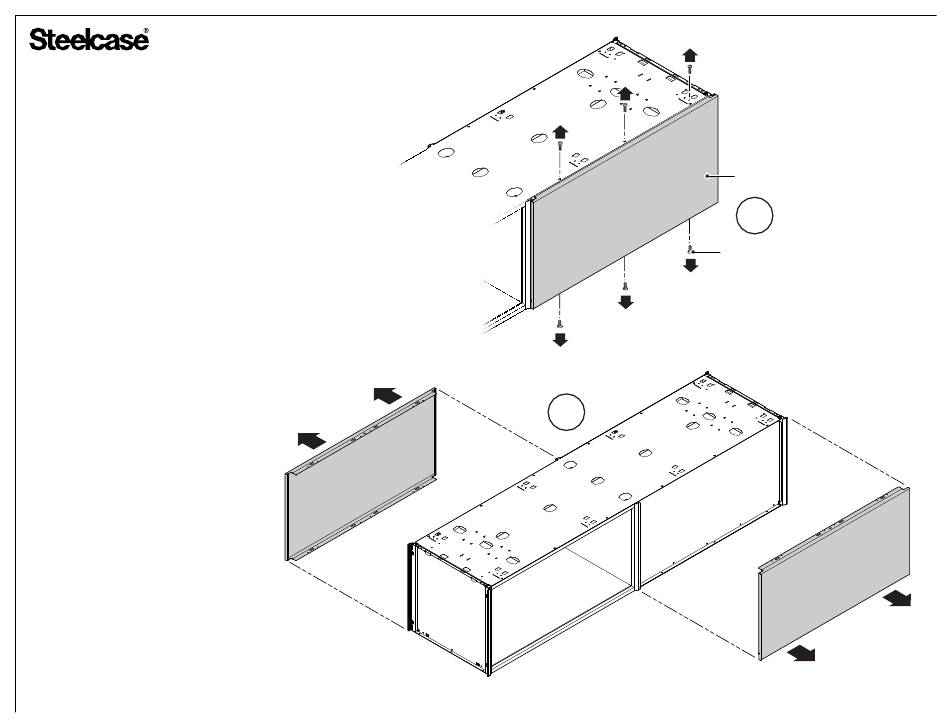

#8-18 X 3/8" SCREW
3b
BACK
3a
Page 4 of 5
939500421 Rev A
