INSTALLATION MANUAL
DIGIWAY PLUS
CURRENT CALCULATION CYCLES
At the end of the door calibration, the door will operate normally.
However, to complete the calibration the system needs 2 more complete cycles to calculate the 2 currents ( called "i" and "I") necessary for
obstacle management. Until the 2 cycles are completed, the external LED LP will blink RED. During the 2 cycles, before the completion of
this calculation, if the door knocks meets an obstacle, the obstacle sensitivity used will be the factory value, which may not fit perfectly with
the door characteristics, therefore:
"It is highly recommended to ensure the door completes these 2 cycles without any interruption. When completed,
the external LED will illuminate Green, and the door calibration is completed."
ADJUSTMENTS
The maximum speed, the torque and the pause time are automatically calculated by the system during the door calibration.
If you prefer to adjust the parameters manually to tailor the door travel, then it is necessary to access the submenu MAIN FUNCTIONS
from the main menu. See following table for the explanation of the parameters.
Each parameter can be adjusted using the keyboard buttons or transmitter keys.
Open Speed
|||||||||||||||||....................
To increase the value press the key UP
To decrease the value press the key DOWN
Press OK to confirm.
Press ESC to exit without saving.
A bar will appear on the display, proportional to the value and the numeric value of the parameter .
Main Functions
Sets the maximum speed reached by the
Open Speed
door during opening.
Sets the maximum speed reached by the
Close Speed
door during closing.
Pause time - this is the time remains
Pause Time
open before automatically closing again
Pause Time ext
Extended Pause time
Open Torque
Max torque of the door during opening.
Close Torque
Max torque of the door during closing
Velocity of the door: rapidity of the door
Velocity
to reach the max speed set, and to
mantain this value along all its travel.
v
Vmax

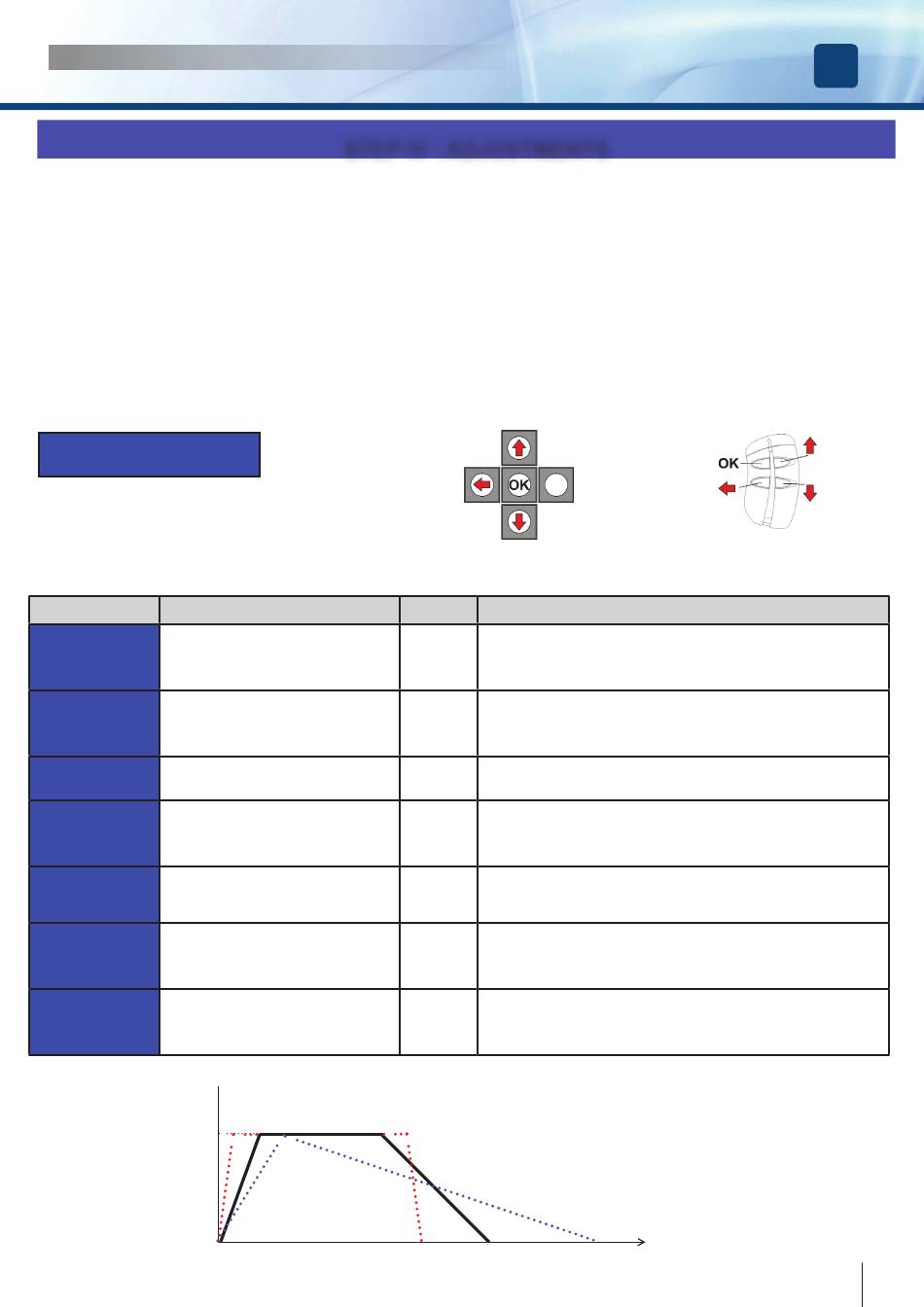

STEP IV : ADJUSTMENTS
45%
Description
Velocity = 0%
UP
ESC
DOWN
Values
At the end of the door calibration the systems sets automatically the
max open speed at a special value. By increasing this value, the total
0 - 100%
open time can reduce - be aware that in order to respect the end
opening point, the door may slow down before reaching the max speed.
At the end of the door calibration the systems sets automatically the
max close speed at a special value. By increasing this value, the total
0 - 100%
close time can reduce - be aware that in order to respect the end closing
point, the door may slow down before reaching the max speed.
1 - 99 SEC.
When the Disabled mode is enabled, if the door is opened through a
command at the inputs 15-16, it will re-close after the Ext Pause time.
1 - 99 SEC.
The Pause time for the remaining commands ( radar, push&go, remote
controls) the pause time remains the regular one.
The max opening torque is set automatically by the system at the end of
0 - 100% the door calibration to the max value (100 %). In the case of very light or
sensitive doors, it may be necessary to decrease this value.
The max closing torque is set automatically by the system, at the end
of the door calibration, to the max value ( 100 %). Decrease this value
0 - 100%
in case of very light or sensitive doors, or to respect the regulations for
The default value for this parameter is 70%. The more this value, the
less is the total travel time, because the door maintains a high value of
0 - 100%
speed for a longer time. Values too high for this parameter can cause
"door bounce", especially for heavy doors (see motion diagram).
Velocity = 100%
t
t
2
1
ESC
NOTES
The preset factory value is 10 sec.
disabled access.
Motion
diagram
t
t
3
EN
UP
DOWN
DOWN
