INSTALLATION MANUAL
DIGIWAY PLUS
Screws for plugs SX8
Plugs SX8
Sliding arm
Screw M6x14
provided
articulated arm
universal arm
The Universal arm kit allows to realize both the arms. The kit is composed by a complete sliding arm, with the
guide and by an adjustable forearm with the door bracket. To transform the sliding arm into the articulated arm
unscrew the sliding block making use of a monkey spanner dim 13 (not provided ) and screw on the hole M10X1 of
the sliding arm the screw of the articulation located on the adjustable forearm.
Screw M6x14
provided
cdvi.com
8
cdvigroup.com

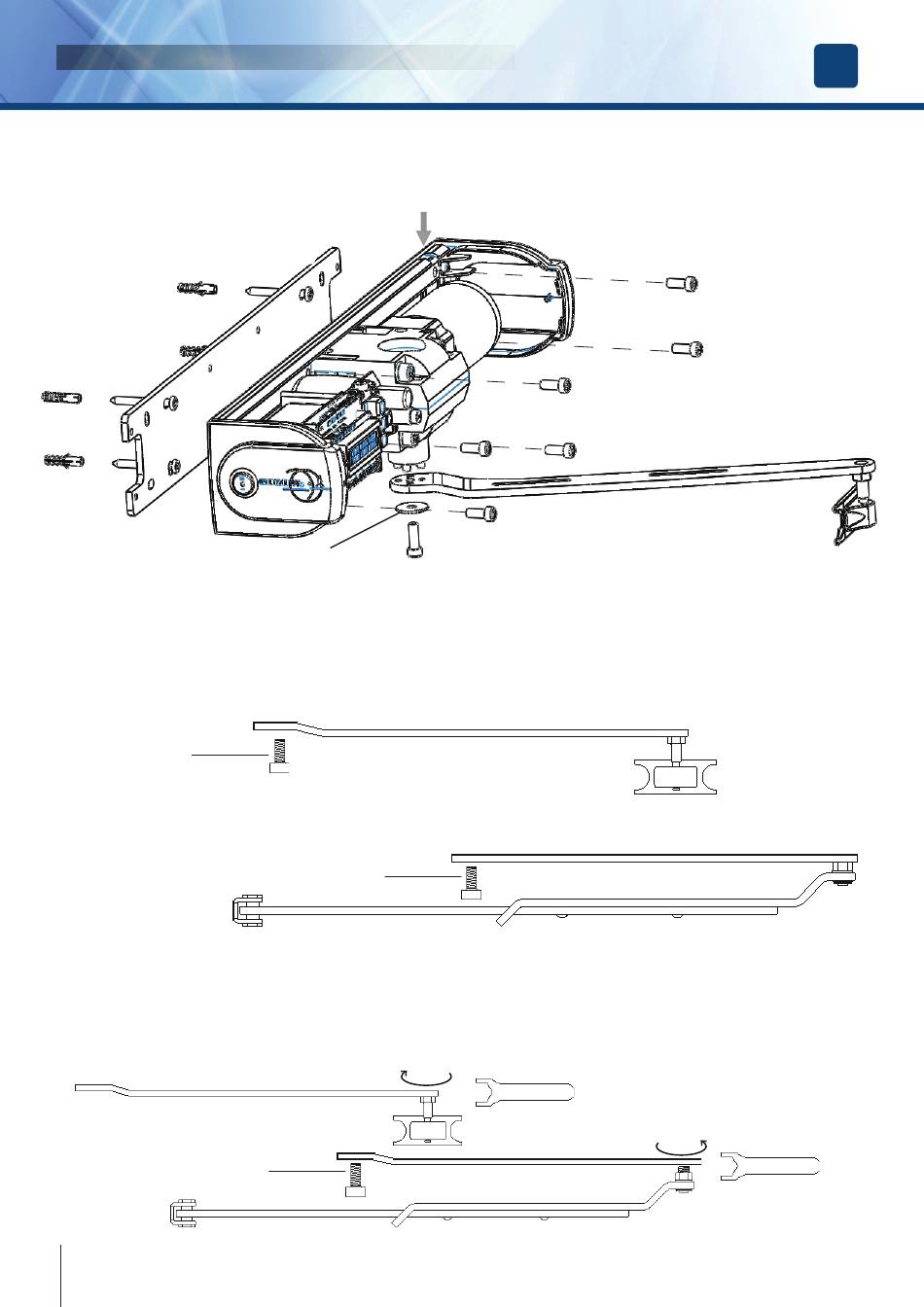

mounting diagram
Cover lift point
Washer
M6x14
accessories
Screw M6x14
provided
M6x14
Turn clockwise
EN
M6x14
Turn anti-clockwise
