INSTALLATION MANUAL
DIGIWAY PLUS
-
+
ftc-S (*)
ftc (*)
(*) See next page for the
connection

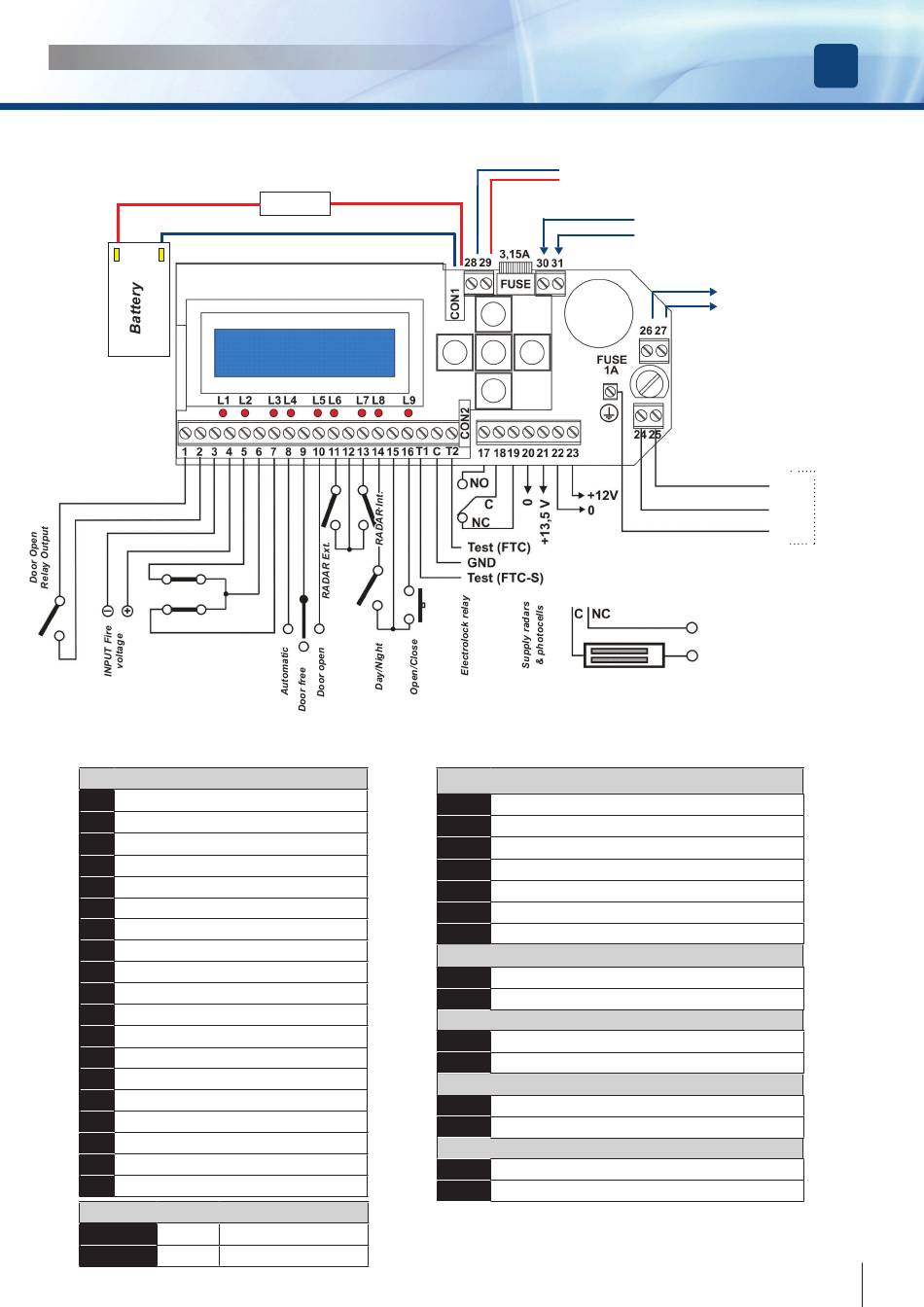

19-way terminal block
1 Output C Open door relay
2 Output NO Open door relay
3 Input V- Fire alarm voltage
4 Input V+ Fire alarm voltage
5 Safety Input NC Stop Photocells [FTC-S]
6 Safety Input C Photocells
7 Safety Input NC Re-open Photocells [FTC]
8 Input NO switch pos. I
9 Input C switch pos. 0
10 Input NO switch pos. II
11 Input NA Radar external
12
Input C Radar
13
Input NO Radar internal
14
Input NO Day/Night switch
15
Input common
16
Input NO push-button open/close/stop
T1
Output (+12) Test FTC-S
C
Common test photocells ( GND)
T2
Output (+12) Test FTC
Door open relay
Door Status Closed
Relay OFF
electrical connections
fuSe 5a
connections detail
Opening/Open/Closing
ON
to the motor
electrolock
Supply
magnet
7-way terminal block
17
Output NO relay electrolock
18 Output C relay electrolock
19 Output NC relay electrolock
20
Output 0V external devices power
21
Output 13,5 Vdc external devices power
22 Output 0V electrolock power
23 Output 12 Vdc electrolock power
2-way terminal block
24
Input Line 230 Vac
25
Input Neutral 230 Vac
2-way terminal block
26 Output 230 Vac to internal toroidal transformer
27 Output 230 Vac to internal toroidal transformer
2-way terminal block
28 Input Motor BLACK cable
29 Input Motor RED cable
2-way terminal block
30 Input from internal toroidal transformer
31 Input from internal toroidal transformer
from toroidal transformer
to toroidal
transformer
n
L
pe
external
magnet
supply
cdvi.com
cdvigroup.com
EN
230 Vac
