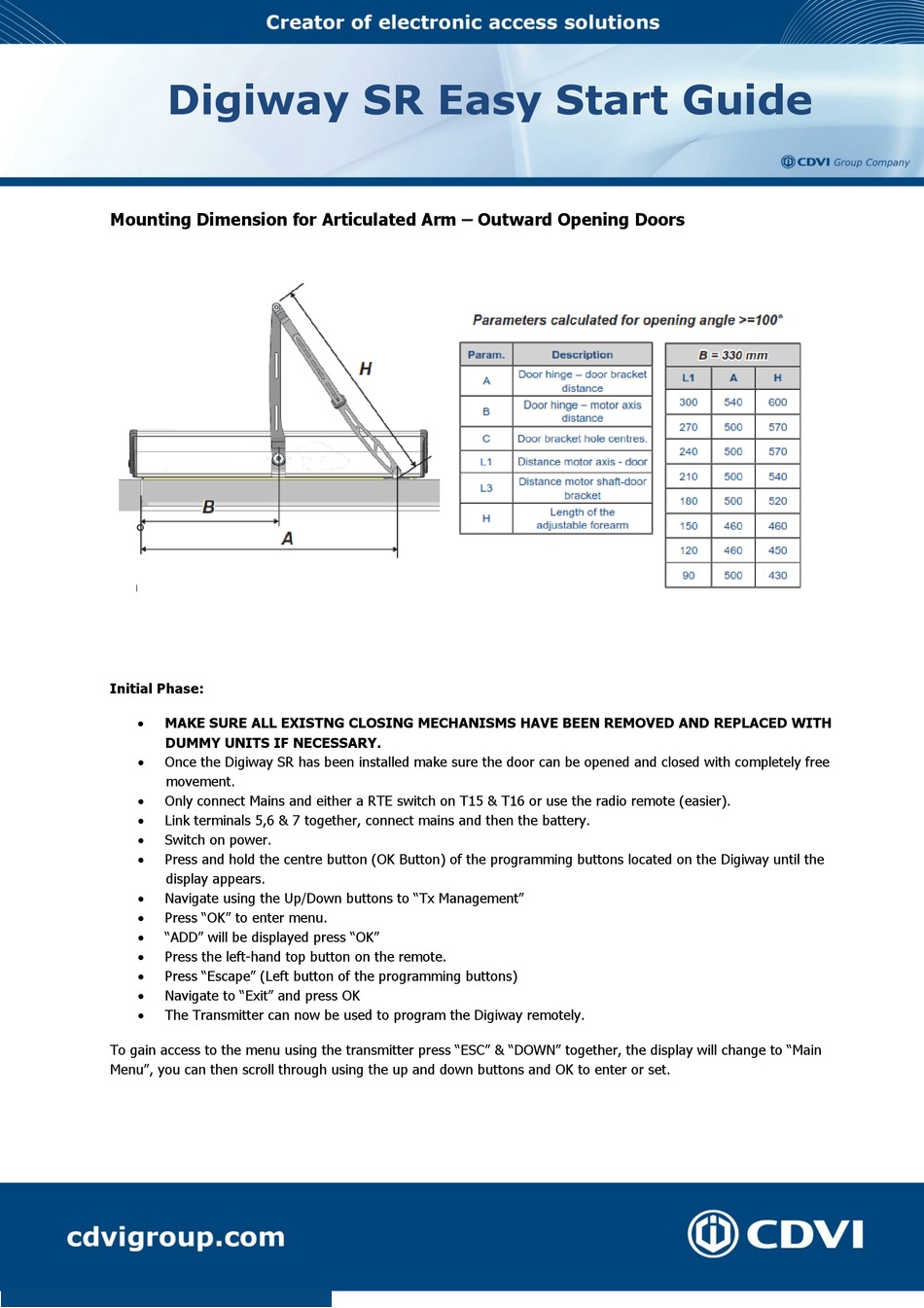

Digiway SR Easy Start Guide

Mounting Dimension for Articulated Arm – Outward Opening Doors

Initial Phase:



MAKE SURE ALL EXISTNG CLOSING MECHANISMS HAVE BEEN REMOVED AND REPLACED WITH

DUMMY UNITS IF NECESSARY.



Once the Digiway SR has been installed make sure the door can be opened and closed with completely free

movement.



Only connect Mains and either a RTE switch on T15 & T16 or use the radio remote (easier).



Link terminals 5,6 & 7 together, connect mains and then the battery.



Switch on power.



Press and hold the centre button (OK Button) of the programming buttons located on the Digiway until the

display appears.



Navigate using the Up/Down buttons to "Tx Management"



Press "OK" to enter menu.



"ADD" will be displayed press "OK"



Press the left-hand top button on the remote.



Press "Escape" (Left button of the programming buttons)



Navigate to "Exit" and press OK



The Transmitter can now be used to program the Digiway remotely.

To gain access to the menu using the transmitter press "ESC" & "DOWN" together, the display will change to "Main

Menu", you can then scroll through using the up and down buttons and OK to enter or set.

Page 1 MAKE SURE ALL EXISTNG CLOSING MECHANISMS HAVE BEEN REMOVED AND REPLACED WITH DUMMY UNITS IF NECESSARY.  Once the Digiway SR has been installed make sure the door can be opened and closed with completely free movement.  Only connect Mains and either a RTE switch on T15 & T16 or use the radio remote (easier).
Page 2 Digiway SR Easy Start Guide Pre Calibration:  Check door has full free movement.  Make sure any locking is completely released.  Check the door travel area is free of any potential blockages.  Assure no one can enter the area while calibration is in progress, set “DANGER TESTING PROGRESS”...
