INSTALLATION MANUAL
DIGIWAY PLUS
Digiway type DWPx102xx is a indoor operator for swing doors, with integrated electronic controller and radio receiver.
The opening and closing motion is electromechanical with backup battery which assures the operation in cases of power
failure. The following versions are available:
P/N Reference
F0543000093 DWPS102SCD
F0543000094 DWPS102ACD
F0543000095 DWPS102UCD
The operator is suitable for swing doors with max width of 1,2 m or max weight of 120 Kg ( refer to diagram on page 7).
At the max speed the door can open and close within 3 sec. ( 90°), depending on door weight and dimensions .
See the technical specifications in the following pages of this manual.
Warning : the operator is suitable only for top-jamb fixing. Door leaf fixing is not allowed.
1
3
10
1 - Anodized aluminium cover
2 - Motor shaft
3 - Status led LP
4 - Receiver Card
5 - Display LCD
6 - 5-buttons keyboard
7 - Gear box
cdvi.com
6
cdvigroup.com

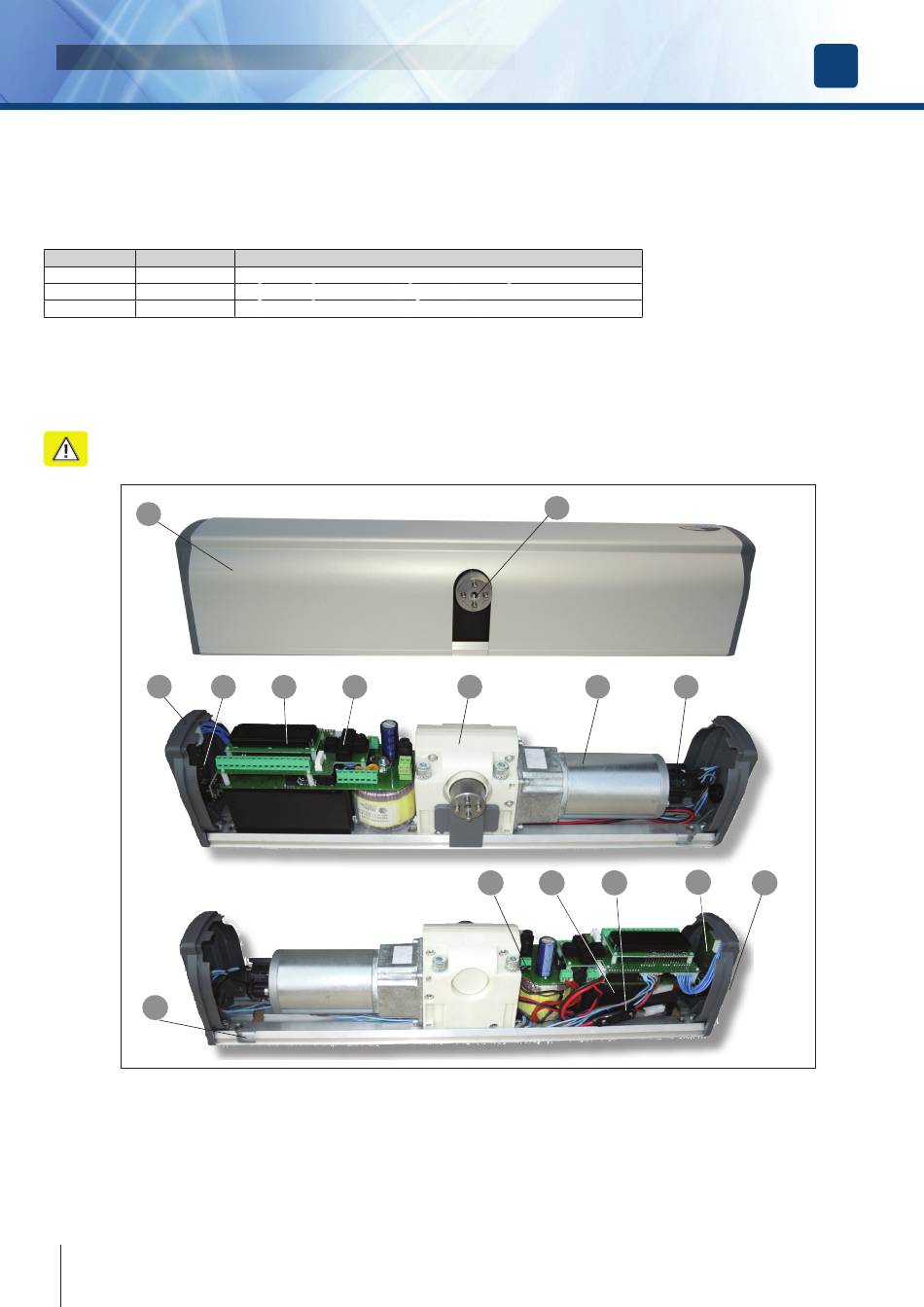

Identifying the product and its parts
Single door operator for inswing doors with sliding arm
Single door operator for outswing doors with articulated arm
Single door operator for inswing or outswing doors with universal arm
4 5 6
Description
2
7
11 12
Legend
8 - Motoriductor
9 - Encoder
10 - Slot for cover opening
11 - Toroidal transformer
12 - Backup battery
13 - Battery cable with protection fuse
14 - Jumper for external selector exclusion
15 - Operating mode selector
8 9
14
13 15
