Main Functions
O.D. Type
Sets the obstacles detection criteria
Sets the reaction time against an
O.D. Reactivity
obstacle
Once installed the operator, check that frictions or unbalancing don't cause the systematic obstacle detection. Select the obstacle detection
criteria which best fits to the type of installation.
The closing cycle next to an obstacle detection is executed at low speed.
ATTENTION: Reactivity values higher than 0,1 Sec, allow to overcome to possible frictions but extend the reaction time and so can
generate higher impact of the door on the obstacle.
DIGIWAY PLUS is equipped with many further parameters (all adjustable) to fit better to any type of installation. From the main menu select
ADVANCED SET to enter this submenu, which allows more adjustments.
Advanced Setting
1)
Electrolock Time
Advanced Setting
2)
Opening Jolt Time
Advanced Setting
3)
Open Jolt Torque
Advanced Setting
4)
Open Delay
Advanced Setting
5)
Wind Stop Torque
cdvi.com
20
cdvigroup.com
STEP IV: ADJUSTMENTS (continued...)
Description
B3+B4+B5
0,1 - 5 sec.

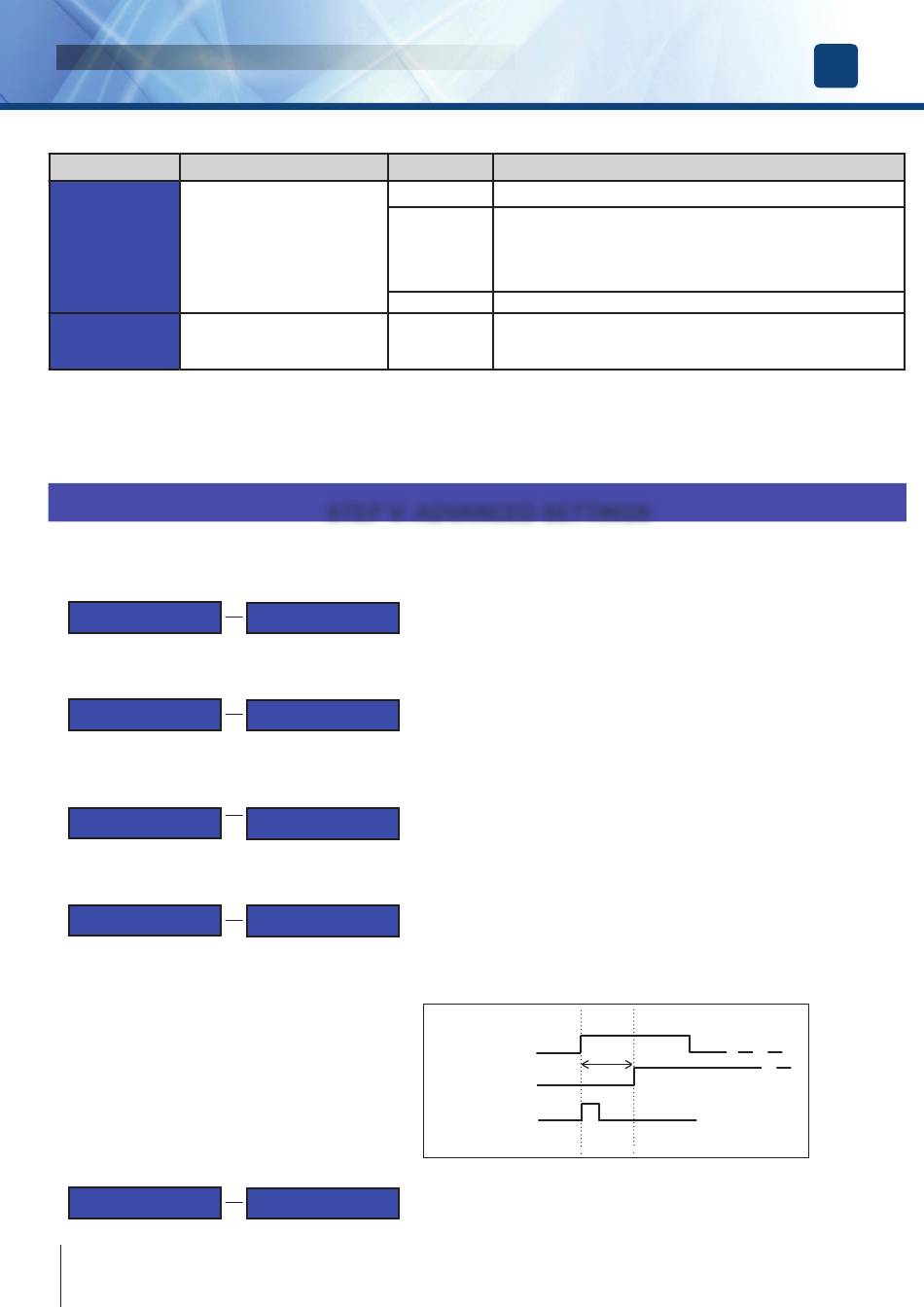

STEP V: ADVANCED SETTINGS
Electrolock Time
|||||||||||||||||......0,5 SEC.
Opening Jolt Time
|||||||||||||..........0,5 SEC.
Open Jolt Torque
|||||||||||||||||............20%
Open Delay Time
0,5 SEC.
|||||||||||||||||............
Wind Stop Torque
|||||||||||||||||............10%
Value
B1 & B2 B1 and B2 sono are basic criteria always active
B3 B3 = intervenes after the speed decreases under 2/3 of the max speed,
B4 calculated during the calibration.
B5 B4 = intervenes if the current consumed exceeds 175% of the current
B3+B4 consumed during the preset.
B5 = intervenes if the door is manually pushed during the closing
Bf Bf = obstacle detected by the slave leaf in double door configuration
Use the UP or DOWN keys to adjust this time : the higher the value,
the longer will be the contact of the door against the obstacle (less sen-
sitive). Default value = 0,1 Sec.
It is possible to pause the electrolock release time from 0,1 to 40 sec. depending on the
lock/door type . Press the UP or DOWN buttons to increase or decrease the pause time
and confirm with OK.
Default value = 0,5 Sec
The opening jolt, when enabled, is a short closing motion before the operator begins
opening - this relieves pressure of "side-load" for some locking devices. It's possible to
adjust this time from 0,1 to 40 sec. depending on the type of electrolock and door. Press
the UP or DOWN buttons to increase or decrease the time and confirm with OK.
Default value = 0,5 Sec
It is possible to adjust the torque of the motor during the opening jolt pulse.
This is adjusted depending on the mechanical resistance of the door. Press the UP or
DOWN buttons to increase or decrease the value and confirm with OK.
Default value = 20%.
It is possible to add a short delay to the door motion to allow the electrolock bolt to
exit completely from its keeper, ensuring the door is fully unlocked. This can be useful
when using motorised locks. The open delay is set by pressing UP or DOWN buttons to
increase or decrease from 0,1 to 40 sec and confirm with OK.
Default value = 0,5 Sec
LOCK
Delay
MOTOR
START
It is possible to adjust the torque of the motor when the wind stop utility is enabled. This
allows changing the value of the force applied by the door related to the wind pressure.
Press the UP or DOWN buttons to increase or decrease the torque and confirm with
OK.
Default value = 50%.
