Mechanic Installation - Articulated Arm Version - CDVI DIGIWAY PLUS Instructions For Installation, Use And Maintenance Manual

INSTALLATION MANUAL
DIGIWAY PLUS
This part is addressed to outward door installations
1) Identify the dimensions of the motor, locate the fixing position, the holes for the cables and the 6 fixing holes making
use of the mounting template provided;
2) Make sure that the bracket of the articulated arm falls in the right position;
3) Make 6 holes diameter Ø 8 mm and insert the 6 special plugs provided ;
4) Fix the plate to the wall using the special screws provided;
5) Fix the motor to the mounting plate with the screws M6x14 provided;
6) Fix the bracket to the door referring to the distance A of the table below;
7) Plug in the articulated arm on the motor shaft and screw the fixing screw M6;
8) If the distance between the motor and the door is higher than that allowed, use the extension ( optional );
9) Fix the arm to the motor by using the screw M6x14 or M6x70 provided;
10) Check full free movement whilst in free mode;
11) Make all the electrical connections;
12) Apply power;
13) Follow the procedure : «Getting started»;
14) Connect the Ground wire to the cover terminal and fix the cover.

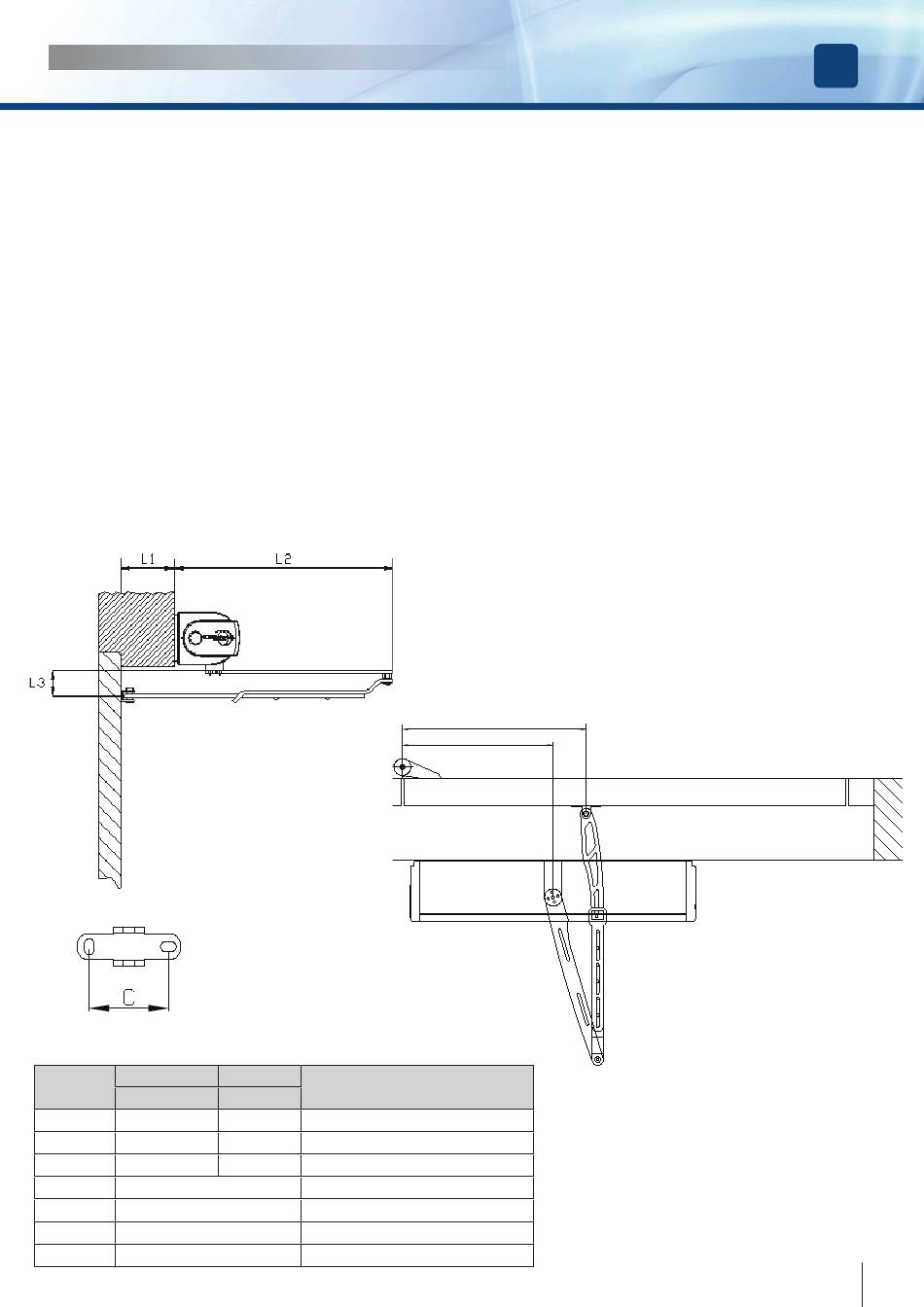

Speed
Parameter
(mm)
410
A
270
B
A - B 140
C 40
L1 55 - 195
L2 371
L3 43
articulated arm version
Power
Description
(mm)
430
Door hinge – door bracket distance
360
Door hinge – motor axis distance
70
Motor axis – door bracket distance
Bracket holes distance
Door jamb width
Distance wall - articulation
Distance motor shaft-door bracket
A
B
