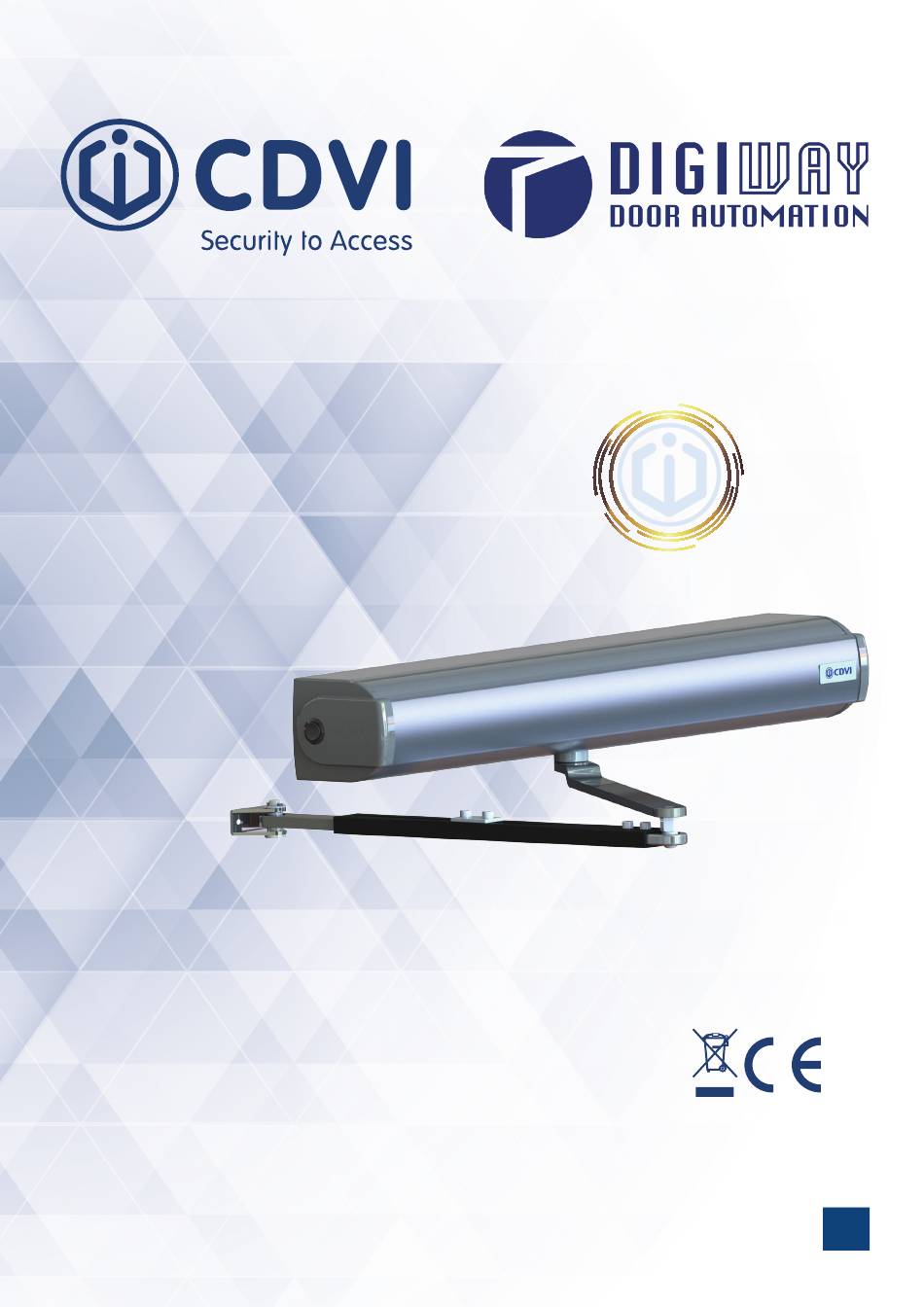

- Page 1 YEAR WARRANTY DIGIWAY SR Automated operator for inward or outward opening doors, spring return...
-
Page 2: Table Of Contents
DIGIWAY SR Spring Return Door Operator Summary Summary page page Important safety instructions and precautions ............3 Machinery Directive ..................... 4 Instructions of use ....................5 Declaration of the Manufacturer ................5 1] IDENTIFYING PRODUCT AND PARTS ............... 6 Accessories ......................7 Overall dimensions .................... -
Page 3: Important Safety Instructions And Precautions
DIGIWAY SR Spring Return Door Operator Important Safety Instructions and Important Safety Instructions and Precautions Precautions This document contains important information for safe use and operation. It is important for the safety of persons to follow these instructions. Save these instructions. -
Page 4: Machinery Directive
DIGIWAY SR Spring Return Door Operator Handling of electronic parts must be carried out wearing grounded antistatic bracelets to avoid any static damage. Servicing the actuator is of fundamental importance if the system is to operate correctly and safety. Comply with the manufacturer’s instructions described in this manual. -
Page 5: Instructions Of Use
DIGIWAY SR Spring Return Door Operator Instructions for use Instructions for use The operator DIGIWAY-SR type DWSR102XCD belongs to the Service Class 5 (600 cycles a day for 5 years). Applications: HEAVY DUTY, for pedestrian access to institutional complexes with very intense use. -
Page 6: Identifying Product And Parts
DIGIWAY SR door operator for outswing doors - articulated arm DIGIWAY SR door operator for outswing doors - articulated arm F0543000165 DWSR102UCD DIGIWAY SR door operator for inswing or outswing doors - universal arm DIGIWAY SR door operator for inswing or outswing doors - universal arm F0543000202... -
Page 7: Accessories
DIGIWAY SR Spring Return Door Operator Accessories Accessories Description F Code Articulated Articulated arm short tube arm short tube DWAA35 F0543000217 extension extension Articulated Articulated arm long tube arm long tube DWAA55 F0543000218 extension extension Only tube Only tube DWAA55E... -
Page 8: Overall Dimensions
DIGIWAY SR Spring Return Door Operator Overall dimensions Overall dimensions Backplate Backplate Universal arm: articulated arm into sliding arm conversion Universal arm: articulated arm into sliding arm conversion Turn clockwise with a Turn clockwise with a 15 mm 15 mm spanner... -
Page 9: Technical Specifications
DIGIWAY SR Spring Return Door Operator Technical specifications Technical specifications General specifications General specifications Power supply Power supply 230 Vac - 50 Hz 230 Vac - 50 Hz Motor torque Motor torque 15 Nm 15 Nm Max power Max power... -
Page 10: Main Features
DIGIWAY SR Spring Return Door Operator Electronic card specifications Electronic card specifications Operating modes: Operating modes: Automatic (I) - Door free (0) - Door always open (II) Automatic (I) - Door free (0) - Door always open (II) - -... -
Page 11: Installation
DIGIWAY SR Spring Return Door Operator 2] INSTALLATION 2] INSTALLATION First, check the stability of the door that is to be motorised, verifying smooth uninterrupted motion in both directions (open and close) to full travel. If the travel is not clear adjustments must be made to acheive satisfactory travel. - Page 12 DIGIWAY SR Spring Return Door Operator M6 x 12 The closing spring is always loaded in the same direction, (see direction arrow on casing) therefore the motor must be mounted according to its discharge direction so that the spring discharges by closing the door.
-
Page 13: Rotation Of The Lcd Display
DIGIWAY SR Spring Return Door Operator ORIENTATION OF THE OPERATOR FOR USE IN DIFFERENT SCENARIOS ORIENTATION OF THE OPERATOR FOR USE IN DIFFERENT SCENARIOS WHEN FIXING ON THE TOP JAMB. WHEN FIXING ON THE TOP JAMB. Hinges at LEFT - side motor with sliding arm... - Page 14 DIGIWAY SR Spring Return Door Operator 3 - Turn the operator to the correct orientation and replace the LCD display into the connector making sure that all the pin connections between the module and lower PCB are seated with the LCD module the correct way up. (fig. 2);...
-
Page 15: Mechanical Installation
DIGIWAY SR Spring Return Door Operator Mechanical Installation: Mechanical Installation: articulated arm version articulated arm version The Articulated Arm is designed for push applications, outward opening doors. Type I Installation: For most door types, type I installation gives the most options for mounting taking into consideration the wall depth (reveal). - Page 16 DIGIWAY SR Spring Return Door Operator The following tables show the recommended mounting dimensions for the DIGIWAY SR referencing to B, L1, H and C shown in the previous diagrams. B = 270 mm B = 300 mm Distance Distance...
- Page 17 DIGIWAY SR Spring Return Door Operator B = 270 mm B = 300 mm Distance Distance Length Motor axis - Door hinge - Length of the Max opening Motor axis - Door hinge - Max opening of the Door Door bracket...
-
Page 18: Wiring Diagram And Connections
DIGIWAY SR Spring Return Door Operator Wiring diagram & connections Wiring diagram & connections 6 x 0.8 mm 6 x 0.8 mm FTC-S [ Stop ] FTC-S [ Stop ] 6 x 0.8 mm 6 x 0.8 mm FTC [ Re-open ]... - Page 19 DIGIWAY SR Spring Return Door Operator 5 6 7 5 6 7 8 9 10 8 9 10 Safety photocells (*) External switch (*) Safety Input NC Stop Photocells [FTC-S] Input NO switch pos. I Safety Input C Photocells Input C switch pos. 0 Safety Input NC Re-open Photocells [FTC] Input NO switch pos.
-
Page 20: Monitored Safety Photocells
If devices type ESPE (photocells) are used, they must be monitored by the drive system. The DIGIWAY SR is equipped with output test signals (Test1, C, Test2) that check the photocells’ status before any motion. (see “Advanced Settings” to match the signal test to the sensor type). -
Page 21: Low Energy Mode
DIGIWAY SR Spring Return Door Operator BEA LZR - Flatscan SW or LZR - Flatscan 3D SW BEA LZR - Flatscan SW or LZR - Flatscan 3D SW 5 6 7 5 6 7 T1 C T2 T1 C T2... -
Page 22: System Configuration And Settings
O (slow) O (slow) Alarms Alarms The electronic card of DIGIWAY SR is equipped with 3 alarm LEDs indicating 3 different anomalies which will set the door into free swing mode. Description Abnormal current consumption > 9A for 2 sec. -
Page 23: Guided Configuration
DIGIWAY SR Spring Return Door Operator ACCESS to the MAIN MENU ACCESS to the MAIN MENU OK for 4 sec for 4 sec ESC + ESC + Main Menu Main Menu Main Menu Main Menu Languages TX Management Wizard Setup... -
Page 24: Step I: Master Transmitter Memorization
DIGIWAY SR Spring Return Door Operator STEP I: MASTER TRANSMITTER MEMORIZATION Scroll through the main menu, select TX MANAGEMENT submenu and press OK Select the option ADD TX MASTER and press OK Press the transmitter key OK (top-left button): the display will show the S/N, confirming the memorisation Exit from the menu by pressing the ESC button. -
Page 25: Wizard Setup
DIGIWAY SR Spring Return Door Operator WIZARD SETUP In the Main menu, select Setup Wizard to proceed with a basic setup of the operator. The guided menu will ask you to specify the main parameters for basic operation of the unit and will complete the adjustment with the calibration of the door. -
Page 26: Step Ii: Spring Preload Adjusting
DIGIWAY SR Spring Return Door Operator STEP II: SPRING PRELOAD ADJUSTING The device is equipped with a torsion spring that closes the door in absence of mains power. The holding force when the door is closed, depends on the level of preload set: this can be adjusted electronically using the buttons on the card. - Page 27 DIGIWAY SR Spring Return Door Operator Press the UP button of the keyboard and the system will rotate the motor shaft, loading the spring. Keep on pressing the button until the 4 pins enter into the 4 holes of the forearm.
-
Page 28: Step Iii: Configuration
DIGIWAY SR Spring Return Door Operator STEP III: CONFIGURATION Step III allows the setup of all the basic parameters of the operator according to the type of required automation. The submenu CONFIGURATION consists of several parameters. Each parameter can have 2 or more values. For each one there is a preset factory value. If the FACTORY DEFAULT function in the Main Menu is used all parameters will be set to default as shown below. - Page 29 DIGIWAY SR Spring Return Door Operator (1): in case of maglock, the lock is always activated if the side switch is set in pos. 0: door free. Note: When a maglock is used the lock relay is always activated to allow free manual use when the side switch is set in pos.
- Page 30 Articulated arm (*) Factory setting DIGIWAY SR is equipped with a software which sets the internal parameters to the door characteristics. Door calibration sets the door travel limits and launches a special 5-cycle routine for automatic detection of door characteristics. Follow the next steps:...
-
Page 31: Calibration Completion
DIGIWAY SR Spring Return Door Operator Continued Continued Display Display Action Action Door Calibration Select Door Limits from the submenu of Door Calibration and Door Limits DOOR LIMITS press OK Open Door Then Press OK Close Door OPEN THE DOOR COMPLETELY... - Page 32 DIGIWAY SR Spring Return Door Operator If the external switch is moved to 0 (free door) or II (open door) the 2 profiles are recalculated and the 2 letters i and I disappear from the display, to reappear again at the end of the next cycle.
-
Page 33: Step V: Main Functions
DIGIWAY SR Spring Return Door Operator STEP V: MAIN FUNCTIONS Main Description Values NOTES Functions In AUTOMATIC mode the door is triggered by the external devices (opening command, radar, radio, push & go): opens by AUTOMATIC motor and closes by motor. Automatic mode would normally be used when the door is locked utilising the internal lock drive relay. -
Page 34: Speed Adjustments
DIGIWAY SR Spring Return Door Operator Cycle Mode Parameter Description Approach point on OPENING (% of the full travel) [range : 85 - Automatic 100%] Opening & Semi- OPENING Speed automatic Final OPENING Speed Auto & Semi Approach point on CLOSING (% of the full travel) -
Page 35: Pause Time
DIGIWAY SR Spring Return Door Operator To have a higher speed in closing, for rearming a lock, for example, you need to change 2 parameters: • P2 = point after which the leaf changes its speed, which would follow the SOFT- STOP profile •... - Page 36 DIGIWAY SR Spring Return Door Operator Opening and Speed difference caused by the impact against an Closing in obstacle. The parameter expresses the minimum AUTOMATIC percentage speed fall from the nominal value that causes OD Delta Vel 0 - 100% &...
-
Page 37: Step Vi: Advanced Settings
DIGIWAY SR Spring Return Door Operator STEP VI: ADVANCED SETTINGS DIGIWAY-SR is equipped with many further parameters (all adjustable) to suit any type of installation. From the main menu select ADVANCED SETTINGS to enter this submenu, which allows many adjustments. - Page 38 DIGIWAY SR Spring Return Door Operator Advanced Setting Enable / Disable Dynamic Pause The dynamic pause is a function which automatically adjusts the pause time programmed, avoiding too many closing attempts of the door in high traffic situations. When enabled, this function increases by 1 sec.
- Page 39 DIGIWAY SR Spring Return Door Operator Advanced Setting OD Close [Auto] OD Close [Auto] Reopen In automatic mode, after the detection of an obstacle during closing, the door can react in different ways, according to the following settings: • REOPEN: the door reopens and after the pause time recloses •...
- Page 40 DIGIWAY SR Spring Return Door Operator STOP / Advanced Setting Advanced Setting STOP / LOW ENERGY Test FTC Fail Test FTC-S Fail LOW ENERGY In case of malfunction of the safety photocells In case of malfunction of the safety photocells FTC it’s possible to set the operating mode:...
- Page 41 DIGIWAY SR Spring Return Door Operator Output Relay Advanced Setting STATUS/SERVICE Output Relay Set the status relay mode: • STATUS: activates when the door is in OPEN / OPENING / CLOSING • SERVICE: it is activated if the partial counter that indicates the maintenance request has exceeded the intervention threshold.
-
Page 42: Remote Controls Management
DIGIWAY SR Spring Return Door Operator Remote controls management Remote controls management The unit is equipped with a superetherodyne AM receiver with Keeloq® Hopping code security protocol. In the TX Management menu you can manage the memory of the receiver, which can store up to 50 transmitters. -
Page 43: Disabled Persons Access Settings
DIGIWAY SR Spring Return Door Operator Disabled persons access settings Disabled persons access settings If the operator is used for disabled persons access, adjust the opening and closing speed of the leaf for Low Energy setting Door weight Door weight... - Page 44 DIGIWAY SR Spring Return Door Operator MENU MAIN SECURE MODE SERVICE ENABLE/DISABLE SERVICE COUNTER COUNTER THRESHOLD SERVICE PASSWORD THRESHOLD 1111 0500 SERVICE PASSWORD CONFIRM SERVICE RESET COUNTER RESET COUNTER? 1111 PASSWORD NEW PASSWORD SERVICE 0000 CHANGE PASSWORD 1111 CONF PASSWORD...
-
Page 45: Obstacle Register
DIGIWAY SR Spring Return Door Operator Information Information DISPLAY LEGEND DISPLAY LEGEND i / k i / k I / K I / K M / S M / S 1,2,3,4,5,6,f 1,2,3,4,5,6,f restart restart Master Master Opening Opening Closing Closing... -
Page 46: Factory Defaults & System Reset
DIGIWAY SR Spring Return Door Operator Factory Defaults Factory Defaults If the set-up of the parameters hasn’t been successful, it’s possible to recover the If the set-up of the parameters hasn’t been successful, it’s possible to recover the factory settings using the sub-menu Factory Defaults from the Main Menu. After the factory settings using the sub-menu Factory Defaults from the Main Menu. -
Page 47: Double Doors Configuration
DIGIWAY SR Spring Return Door Operator 4] DOUBLE DOOR CONFIGURATION 4] DOUBLE DOOR CONFIGURATION Double door operation can be acheived using 2 x Digiway-SR units properly installed and Double door operation can be acheived using 2 x Digiway-SR units properly installed and connected for synchronised operation. - Page 48 DIGIWAY SR Spring Return Door Operator B. With central profile (NOT AVAILABLE IN UK) B. With central profile (NOT AVAILABLE IN UK) 5 different dimensions are available. The central backplate and profiled cover are 5 different dimensions are available. The central backplate and profiled cover are included in the packaging of the double door version.
- Page 49 DIGIWAY SR Spring Return Door Operator 3 - Motor fixing 3 - Motor fixing Fix the two operators following the rules of paragraph A, according to the type of Fix the two operators following the rules of paragraph A, according to the type of operation required, inward or outward.
- Page 50 DIGIWAY SR Spring Return Door Operator C. Arms fixing C. Arms fixing 1 - Door guides fixing (inward opening) • Fix the two arms on the motor shafts with the screws M6x12 provided; • Insert the guide on the sliding blocks;...
- Page 51 DIGIWAY SR Spring Return Door Operator SEL-NICK SEL-NICK E. Rebated doors in semiautomatic mode E. Rebated doors in semiautomatic mode With power-on and the doors operating in semi-automatic mode they will reclose by spring. The SW always controls the position of the 2 leaves.
- Page 52 DIGIWAY SR Spring Return Door Operator 1) Connect the motors referring to the electrical diagram of the single door. WARNING: in double door mode with overlapping leaves (rebated), it is very important to identify the type of unit • MASTER unit drives the leaf which opens first and closes last •...
- Page 53 DIGIWAY SR Spring Return Door Operator 3) Verify that the safety inputs (Terminals 5-6-7) of the SLAVE unit are shorted or connected to the corresponding safety photocells (FTC and FTC-S) and that LEDs L3 and L4 are stable on. 4) Verify that the safety inputs (Terminals 5-6-7) of the MASTER unit are shorted or connected to the corresponding safety photocells (FTC and FTC-S) and that the leds L3 and L4 are stable on.
-
Page 54: Instructions Of Use
DIGIWAY SR Spring Return Door Operator Operating mode Operating mode Rebated Doors Not Rebated Doors Master Slave Operating Master Slave Operating Both Doors Free Both Doors Free Both Doors Free Both Doors Free Both Doors always open Both Doors always open... -
Page 55: Maintenace
DIGIWAY SR Spring Return Door Operator 6] MAINTENACE 6] MAINTENACE An automatic door, realised through the installation of the operator DIGIWAY-SR, needs regular servicing (at least every 12 months) as listed in the following points: 1) Check the door balancing and the correct functionality of the hinges... -
Page 56: Troubleshooting
DIGIWAY SR Spring Return Door Operator 7] TROUBLESHOOTING 7] TROUBLESHOOTING Issue Cause Solution Door doesn’t close completely Inadequate spring preload Increase spring preload over a latch External LED blinks RED Check photocells, in case of their absence Photocell test failed quickly &... -
Page 57: Bluetooth Connection & Management
DIGIWAY SR Spring Return Door Operator The jumper is OFF or absent (see The side switch doesn’t work Insert the jumper page 20) The main LED blinks RED Service required Call assistance for service intervention slowly the Photocells are broken or... - Page 58 For communication with the module it is necessary to install the correct App on your smartphone, from either the App Store (Apple) or Google Play (Android). Search CDVI or Digiway BLE on the App Store and proceed with the download.
- Page 59 DIGIWAY SR Spring Return Door Operator Once the download is completed, start the App. You will be asked to The App will start The App will start specify the language searching the Bluetooth searching the Bluetooth of the App: select the...
- Page 60 DIGIWAY SR Spring Return Door Operator Press OK for 4 sec. to Click on the symbol Input the old password, enter the menu or push to access the “Change then the new password. open/close to give a password function” Retype it to confirm.
- Page 61 DIGIWAY SR Spring Return Door Operator Installing Manufacturer: Installing Manufacturer: (Name of the company who installed the Automatic Door Operator) (Name of the company who installed the Automatic Door Operator) Identification: Identification: (Identity of the door that has been automated such as door location or serial number)
- Page 62 DIGIWAY SR Spring Return Door Operator Hazard Description Installation notes and/or actions taken to eliminate or reduce the risk Impact Impact Crushing Crushing Shearing Shearing Wedging Wedging Conveying Conveying Cutting Cutting Hooking Hooking Service Service Date: Date: Operator name: Operator name:...
- Page 63 DIGIWAY SR Spring Return Door Operator Note ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................Manufactured by Manufactured by CDVI Wireless S.p.A.
- Page 64 +39 (0) 438 450860 www.erone.com CDVI MAROC +212 (0) 5 22 48 09 40 www.cdvi.ma CDVI NORDICS [SWEDEN - DENMARK - NORWAY - FINLAND] +46 (0) 31 760 19 30 www.cdvi.se CDVI UK [UNITED KINGDOM - IRELAND] +44 (0) 1628 531300 www.cdvi.co.uk...
