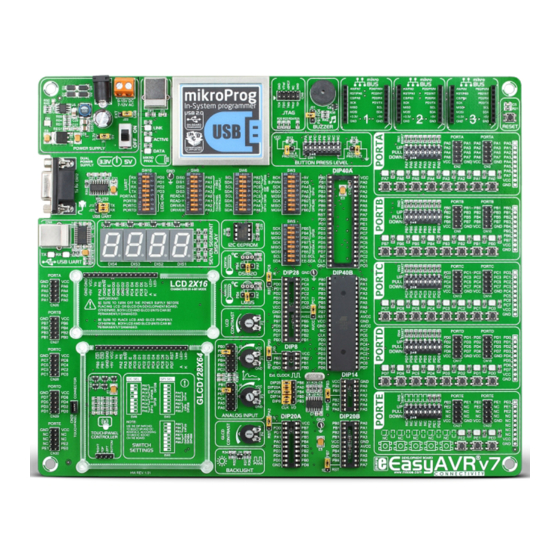

- Page 1 EasyAVR microcontrollers supported Supports 3.3V and 5V devices Easily add extra boards Four connectors for each port As fast as it gets The ultimate AVR® board Dual Power Supply mikroBUS sockets Amazing Connectivity USB 2.0 programmer ™...
- Page 2 And EasyAVR® v7 brings a whole new perspective to AVR developers. The 7th generation of the board brings many exciting new features. We hope that you will like it as much as we do. Use it wisely and have fun! Nebojsa Matic, Owner and General Manager of mikroElektronika...
-
Page 3: Table Of Contents
Introduction Connectivity mikroBUS sockets ....... . ™ Introduction ........Input/Output Group . -
Page 4: Introduction
Introduction EasyAVR is your old friend. It has been here for you for several generations. ™ Today it has many users among students, hobbyists, enthusiasts and professionals. We asked ourselves what else could be done to make such a great board even greater. As a result some brilliant changes have been made. -
Page 5: It's Good To Know
PRODUCT DVD www.mikroe.com www.libstock.com Copyright ©2012 Mikroelektronika. All rights reserved. MikroElektronika, MikroElektronika logo and other MikroElektronika trademarks are the property of MikroElektronika. All other trademarks are the property of their respective owners. Unauthorised copying, hiring, renting, public performance and broadcasting of this DVD is strictly prohibited. -
Page 6: Dual Power Supply
Dual power supply Board contains switching power supply that creates stable voltage and current levels necessary powering each part of the board. Power supply section contains two power regulators: ST1S10, which generates VCC-5V, and MC33269DT3.3 which creates VCC-3.3V power supply. The board can be powered in three different ways: with USB power supply (CN1), using external adapters via adapter connector (CN24) or additional screw terminals (CN25). - Page 7 EasyAVR v7 development board supports both Power supply: via DC connector or screw terminals ™ 3.3V and 5V power supply on a single board. (7V to 12V AC or 9V to 15V DC), This feature enables you to use wide range of or via USB cable (5V DC) peripheral boards.
-
Page 8: Supported Microcontrollers
Supported microcontrollers DIP20A Microcontroller sockets DIP40A VCC-BRD VCC-BRD VCC-BRD SKT2 SKT3 RST_PA2 SCK_PB7 MISO_PB6 The board contains seven DIP sockets: DIP40A, DIP40B, DIP28, DIP20A, DIP20B, SCK_MOSI_PB5 CLK_PA0 DIP14, DIP8 (Figure 4-1). With dual power supply and smart on-board mikroProg, the SCK_MOSI_PB5 MISO_PB6 board is capable of programming about 65 different microcontrollers from Atmel®... - Page 9 How to properly place your microcontroller into the DIP socket? Figure 4-2: Place both ends of microcontroller on Figure 4-3: with both fingers, evenly distribute Figure 4-4: Properly placed microcontroller will the socket so the pins are aligned correctly the force and press the chip into the socket. have equally leveled pins.
-
Page 10: On-Board Programmer
On-board programmer What is mikroProg ™ mikroProg is a fast USB 2.0 programmer. Smart engineering allows mikroProg ™ ™ to support about 65 AVR® microcontrollers from Atmel® in a single programmer! Outstanding performance and easy operation are among it's top features. How do I start? In order to start using mikroProg ™... - Page 11 VCC-BRD VCC-5V LINK ACTIVE DATA VCC-USB VCC-3.3V VCC-5V LED-DATA LED-ACTIVE USB-PROG_N LED-DATA LED-LINK USB-PROG_N LED-ACTIVE USB-PROG_P LED-LINK USB-PROG_P 100nF VCC-BRD mRST AVR JTAG VCC-5V BTN_RST 100nF DIP28 DIP20A DIP20B DIP14 DIP8 RESET SELECTION Figure 5-1: mikroProg block schematic ™ EasyAVR page 11...
-
Page 12: Installing Programmer Drivers
Copyright ©2012 Mikroelektronika. All rights reserved. MikroElektronika, MikroElektronika logo and other MikroElektronika trademarks are the property of MikroElektronika. All other trademarks are the property of their respective owners. Unauthorised copying, hiring, renting, public performance and broadcasting of this DVD is strictly prohibited. -
Page 13: Programming Software
DVD://download/eng/software/development-tools/avr/avr- www.libstock.com prog2/avrprog2_programmer_v214.zip Copyright ©2012 Mikroelektronika. All rights reserved. MikroElektronika, MikroElektronika logo and other MikroElektronika trademarks are the property of MikroElektronika. All other trademarks are the property of their respective owners. Unauthorised copying, hiring, renting, public performance and broadcasting of this DVD After downloading, extract the package and double click the is strictly prohibited. -
Page 14: Uart Via Rs-232
UART via RS-232 UART (universal asynchronous receiver/transmitter) is one of the most Enabling RS-232 common ways of exchanging data between the MCU and peripheral components. It is a serial protocol with separate transmit and receive lines, and can be used for full-duplex communication. -
Page 15: Uart Via Usb
In order to enable USB-UART communication, you must set J23 Copyright ©2012 Mikroelektronika. All rights reserved. MikroElektronika, MikroElektronika logo and other MikroElektronika trademarks are the property of MikroElektronika. All other trademarks are the property of their respective owners. Unauthorised copying, hiring, renting, public performance... -
Page 16: Mikrobus ™ Sockets
USB standard comes from it’s simplicity of usage and high and reliable data transfer rates. As we in mikroElektronika see it, Plug-and-Play devices with minimum settings are the future in embedded world too. This is why our engineers have come up with a simple, but brilliant pinout with lines that most of today’s accessory boards require, which... - Page 17 ™ ™ ™ Click Boards are plug-n-play! ™ mikroElektronika portfolio of over 200 accessory boards is now enriched hardware configuration. Just plug and play. Visit the Click boards ™ webpage compatible Click Boards by an additional set of mikroBUS ™...
-
Page 18: Input/Output Group
Input/Output Group One of the most distinctive features of EasyAVR ™ v7 are it’s Input/Output PORT groups. They add so much to the connectivity potential of the board. Everything is grouped together PORT headers, PORT buttons and PORT LEDs are next to each other, and grouped together. - Page 19 LEDs With enhanced connectivity as one of the key features The logic state of LED (Light-Emitting of EasyAVR v7, we have provided three connection all microcontroller Diode) is a highly headers for each PORT. I/O PORT group contains two digital...
-
Page 20: Lcd 2X16 Characters
LCD 2x16 characters Liquid Crystal Displays or LCDs are cheap and popular way of representing information to the end user of some electronic device. Character LCDs can be used to represent standard and custom characters in the predefined number of fields. -
Page 21: Glcd 128X64
GLCD 128x64 Graphical Liquid Crystal Displays, or GLCDs are used to display Display connector is routed to PB0, PB1, PA2, monochromatic graphical content, such as text, images, human- PA3, PD6, PD7 (control lines) and PORTC (data machine interfaces and other content. EasyAVR v7 provides lines) of the microcontroller sockets. -
Page 22: Touch Panel Controller
Touch panel controller Touch panel is a glass panel whose surface is EasyAVR v7 is equipped with touch panel controller ™ covered with two layers of resistive material. When and connector for 4-wire resistive touch panels. It the screen is pressed, the outer layer is pushed can very accurately register pressure at a specific point, onto the inner layer and appropriate controllers can representing the touch coordinates in the form of analog... -
Page 23: Digit 7-Seg Display
4 digit 7-seg display One seven segment digit consist of 7+1 which is used to enable the digit Enabling the display LEDs which are arranged in a specific to which the data is currently being formation which can be used to represent sent. -
Page 24: Ds1820 - Digital Temperature Sensor
DS1820 - Digital Temperature Sensor DS1820 is a digital temperature of 750ms for the DS1820 to calculate sensors can be connected on the same sensor that uses 1-wire® temperature with 9-bit resolution. line. All slave devices by default have interface for it’s operation. It is 1-wire®... -
Page 25: Lm35 - Analog Temperature Sensor
LM35 - Analog Temperature Sensor The LM35 is a low-cost precision obtain convenient Centigrade scaling. a separate socket (TS2) integrated-circuit temperature sensor, It has a linear +10.0 mV/°C scale factor for the LM35 sensor in whose output voltage is linearly and less than 60 μA current drain. -
Page 26: Adc Inputs
ADC inputs Digital signals have two discrete states, which are decoded as high and low, and interpreted as logic 1 and logic 0. Enabling ADC inputs Analog signals, on the other hand, are continuous, and can have any value within defined range. A/D converters are specialized circuits which can convert analog signals (voltages) into a digital representation, usually in form of an integer number. -
Page 27: I2C Eeprom
C EEPROM EEPROM is short for Electrically Erasable Programmable Read Only Memory. It is Enabling I C EEPROM usually a secondary storage memory in devices containing data that is retained even if the device looses power supply. Because of the ability to alter single bytes of data, EEPROM devices are used to store personal preference and configuration data in a wide spectrum of consumer, automotive,... -
Page 28: Piezo Buzzer
Piezo Buzzer Piezo electricity is the charge which accumulates a sequence of logic zeros and ones. Frequency of the square in certain solid materials in response to mechanical signal determines the pitch of the generated sound, and duty pressure, but also providing the charge to the cycle of the signal can be used to increase or decrease the piezoelectric material causes it to physically volume in the range from 0% to 100% of the duty cycle. -
Page 29: Additional Gnds
Additional GNDs EasyAVR v7 contains three GND pins located in three different sections of the ™ board, which allow you to easily connect oscilloscope GND reference when you monitor signals on microcontroller pins, or signals of on-board modules. GND is located between SW10 and SW8 DIP switches. GND is located between DIP20A and DIP20B sockets. -
Page 30: What's Next
AVR applications. www.libstock.com Copyright ©2012 Mikroelektronika. All rights reserved. MikroElektronika, MikroElektronika logo and other MikroElektronika trademarks are the property of MikroElektronika. All other trademarks are the property of their respective owners. Unauthorised copying, hiring, renting, public performance and broadcasting of this DVD is strictly prohibited. - Page 31 (including damages for loss of business profits and business information, business interruption or any other pecuniary loss) arising out of the use of this manual or product, even if MikroElektronika has been advised of the possibility of such damages.
- Page 32 If you are experiencing some problems with any of our products or just need additional information, please place your ticket at www.mikroe.com/esupport If you have any questions, comments or business proposals, do not hesitate to contact us at office@mikroe.com EasyAVR v7 User Manual ver. 1.01 0 100000 023297...
