MINI-32

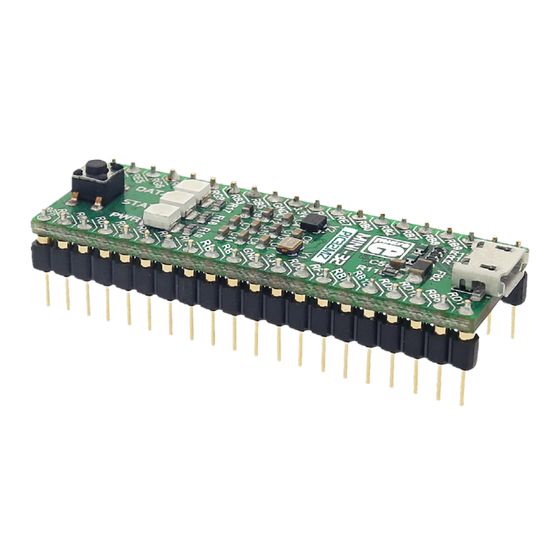

development board for PIC32MZ
PIC32 development board fitted in a DIP40 form
factor, containing a powerful microcontroller.
MINI
ARM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINI-32 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for mikroElektronika MINI-32

Summary of Contents for mikroElektronika MINI-32

  • Page 1 MINI-32 development board for PIC32MZ PIC32 development board fitted in a DIP40 form factor, containing a powerful microcontroller. MINI...
  • Page 2 TO OUR VALUED CUSTOMERS I want to express my thanks to you for being interested in our products and for having confidence in MikroElektronika. The primary aim of our company is to design and produce high quality electronic products and to constantly improve the performance thereof in order to better suit your needs.

  • Page 3: Table Of Contents

    Introduction to MINI-32 for PIC32MZ Key features System specifications 1. Programming with mikroBootloader step 1 – Connecting MINI-32 for PIC32MZ step 2 – Browsing for .HEX file step 3 – Selecting .HEX file step 4 – Uploading .HEX file step 5 – Finish upload 2.

  • Page 4: Introduction To Mini-32 For Pic32Mz

    Introduction to MINI-32 for PIC32MZ Key features Miniature and powerful development tool designed to work as a standalone device or as a MCU card in DIP40 socket. MINI-32 for PIC32MZ is preprogrammed with USB HID bootloader so it is not Connection pads necessary to have an external programmer.

  • Page 5: System Specifications

    System specifications power supply 3.3V via pads or 5V via USB power consumption depends on MCU state (max current into 3.3V pad is 300mA) board dimensions 50.8 x 17.78mm (2 x 0.7“) weight ~6g (0.013 lbs) Page 5...

  • Page 6: Programming With Mikrobootloader

    Figure 1-1: USB HID mikroBootloader window To start, connect the USB cable, or if already connected press the Reset button on your MINI-32 board. Click the Connect button within 5s to enter the bootloader mode, otherwise existing microcontroller program will execute.

  • Page 7: Step 2 - Browsing For .Hex File

    step 2 – Browsing for .HEX file step 3 – Selecting .HEX file Figure 1-2: Browse for HEX Figure 1-3: Selecting HEX Click the ”Browse for HEX” button and from a Select .HEX file using open dialog window. pop-up window (Figure 1-3) choose the .HEX file Click Open.

  • Page 8: Step 4 - Uploading .Hex File

    step 4 – Uploading .HEX file Figure 1-4: Begin uploading Figure 1-5: Progress bar To start .HEX file bootloading click the You can monitor .HEX file uploading via progress bar Begin uploading button. Page 8...

  • Page 9: Step 5 - Finish Upload

    step 5 – Finish upload Figure 1-6: Restarting MCU Figure 1-7: mikroBootloader ready for next job Click OK after uploading is finished and wait for 5 seconds. Board will automatically reset and your new program will execute. Page 9...

  • Page 10: Schematic

    2. Schematic 32.768kHz STAND-BY 0.10µF NCP1117ST33 #MCLR RD11 nMCLR SPI0-MISO RB15 SPI0-MOSI RB14 RD10 SPI0-SCK SCLK_IN RC14 SPI0-SS RB12 RC13 TCK/SWC RB10 TMS/SWD RD11 RD11 SPI1-SS INT0 PIC32MZ1024EFH064-I/MR RD10 RD10 INT1 VCC-USB INT2 RB13 #MCLR RB11 MCLR CAN-Tx I2C-SCL CAN-Rx I2C-SDA USBD_P 10µF...

  • Page 11: Pinout

    3. Pinout Pin functions Pin functions nMCLR #MCLR RD11 SPI0-MISO RB15 SPI0-MOSI SPI0 RB14 RD10 SPI0-SCK Analog I/O SPI0-SS RB12 TCK/SWC TMS/SWD RB10 INT0 SPI1-SS INT1 3.3V Power supply INT2 RB13 3.3V Power supply RB11 CAN-Tx I2C-SCL CAN-Rx I2C-SDA UART0-Rx INT3 UART0 UART0-Tx...

  • Page 12: Dimensions

    4. Dimensions 50.8 2000 50.8 2000 2.54 2.54 Legend mils Legend mils Page 12...
  • Page 13 Notes: Page 13...
  • Page 14 Notes: Page 14...
  • Page 15 No part of this manual, including product and software described herein, may be reproduced, stored in a retrieval system, translated or transmitted in any form or by any means, without the prior written permission of MikroElektronika. The manual PDF edition can be printed for private or local use, but not for distribution.
  • Page 16 MINI If you want to learn more about our products, please visit our website at www.mikroe.com If you are experiencing some problems with any of our products or just need additional information, please place your ticket at helpdesk.mikroe.com If you have any questions, comments or business proposals, do not hesitate to contact us at office@mikroe.com...
