mikroElektronika MINI-32 User Manual

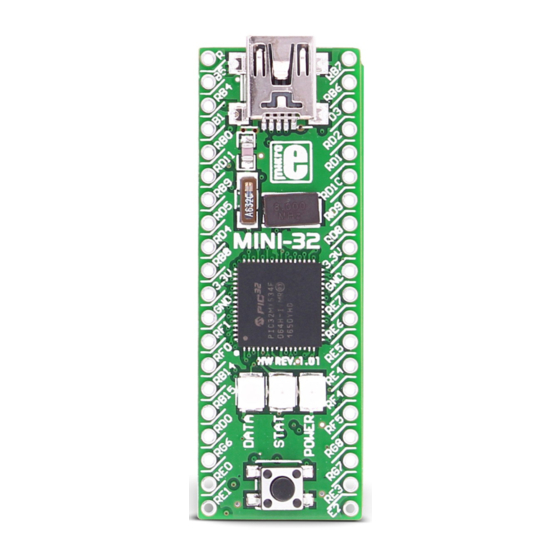

The whole pic32 development board fitted on dip40 containing powerful pic32mx534f064h microcontroller. it’s the first ever pic32 chip on dip40 socket, pin compatible with pic16f887 and pic18(l)f45k20 microcontrollers!
Hide thumbs Also See for MINI-32:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
MINI-32
The whole PIC32 development board fitted on DIP40 containing
powerful PIC32MX534F064H microcontroller. It's the first
ever PIC32 chip on DIP40 socket, pin compatible with
PIC16F887 and PIC18(L)F45K20 microcontrollers!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINI-32 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for mikroElektronika MINI-32

Summary of Contents for mikroElektronika MINI-32

  • Page 1 MINI-32 The whole PIC32 development board fitted on DIP40 containing powerful PIC32MX534F064H microcontroller. It’s the first ever PIC32 chip on DIP40 socket, pin compatible with PIC16F887 and PIC18(L)F45K20 microcontrollers!
  • Page 2 TO OUR VALUED CUSTOMERS I want to express my thanks to you for being interested in our products and for having confidence in Mikroelektronika. The primary aim of our company is to design and produce high quality electronic products and to constantly improve the performance thereof in order to better suit your needs.

  • Page 3: Table Of Contents

    Introduction to MINI-32 Key features System Specification 1. Programming with bootloader step 1 – Connecting MINI-32 step 2 – Browsing for .hex file step 3 – Select .hex file step 4 – .hex file uploading step 5 – Finish upload 2.

  • Page 4: Key Features

    Miniature and powerful development tool designed to work as stand alone device or as MCU in DIP40 socket. MINI-32 comes with preinstalled bootloader so it is not necessary to have external programmer. If there is need for external programmer (mikroProg) attach it to MINI-32 via pads marked with RB6 (PGC), RB7 (PGD) and MCLR.

  • Page 5: System Specification

    System Specification power supply 3.3V via pads or 5V via USB power consumption depends on MCU state (max current into 3.3V pad is 300mA) board dimensions 50.80 x 17.78mm (2 x 0.70“) weight ~9g (0.02 lbs) Page 5...

  • Page 6: Programming With Bootloader

    After software is downloaded unzip it to desired location and start mikroBootloader USB HID software. Figure 1-1: mikroBootloader USB HID Connect MINI-32 board with a PC via USB cable and USB icon will turn red Whitin 5s click on Connect button...

  • Page 7: Step 2 - Browsing For .Hex File Step 3 - Select .Hex File

    2 – Browsing for .hex file step 3 – Select .hex file MINI-32 Figure 1-2: Browse for HEX Figure 1-3: Selecting HEX Click on Browse for HEX button Select .hex file via open window Click on Open button Page 7...

  • Page 8: Step 4 - .Hex File Uploading

    4 – .hex file uploading MINI-32 MINI-32 Figure 1-4: Begin uploading Figure 1-5: Progress bar To start .hex file uploading click on Begin uploading button You can monitor .hex file uploading via progress bar Page 8...

  • Page 9: Step 5 - Finish Upload

    step 5 – Finish upload Figure 1-6: Restarting MCU Figure 1-7: mikroBootloader ready for next job To finish uploading click on OK button Page 9...

  • Page 10: Schematic

    VCC-USB VCC-3.3 VCC-3.3 VCC-3.3 REG1 VCC-3.3 VOUT 100nF 100nF MC33269DT-3.3 10uF 10uF 10uF VCC-3.3 VCC-3.3 SOSCO MCLR SOSCI RESET RD11 RD10 VCC-3.3 MCLR 100nF OSC2 PIC32MX534F064H SOSCI OSC1 VCC-3.3 SOSCO USBDP D+/RG2 USBDM D-/RG3 VUSB VCC-3.3 VBUS USB-ID 32.768kHz 22pF 22pF 100nF OSC1...

  • Page 11: Dimensions

    50.80mm (2") 2.54mm (0.10") Figure 3-1: Board dimensions Page 11...

  • Page 12: Pinout

    Pin functions Pin functions PGED2 MCLR Programming lines PGEC2 SCL3/SDO3/U1TX I 2 C Analog I/O AN1/VREF- SDA3/SDI3/U1RX SPI/UART AN0/VREF+ SCK3/U1RTS INT4 RD11 RD10 INT3 INT2 RTCC/INT1 Digital I/O 3.3V 3.3V Power supply AN8/U5RX 3.3V Power supply 3.3V Digital I/O C1TX C1RX U2RX AN14/U5TX...
  • Page 13 Notes: Page 13...
  • Page 14 Notes: Page 14...
  • Page 15 No part of this manual, including product and software described herein, may be reproduced, stored in a retrieval system, translated or transmitted in any form or by any means, without the prior written permission of MikroElektronika. The manual PDF edition can be printed for private or local use, but not for distribution.
  • Page 16 MINI-32 If you want to learn more about our products, please visit our website at www.mikroe.com If you are experiencing some problems with any of our products or just need additional information, please place your ticket at www.mikroe.com/en/support If you have any questions, comments or business proposals, do not hesitate to contact us at office@mikroe.com...
