- Page 1 100-pin TQFP PT ETHERNET with PIC32MX795F512L Downloaded from Arrow.com.

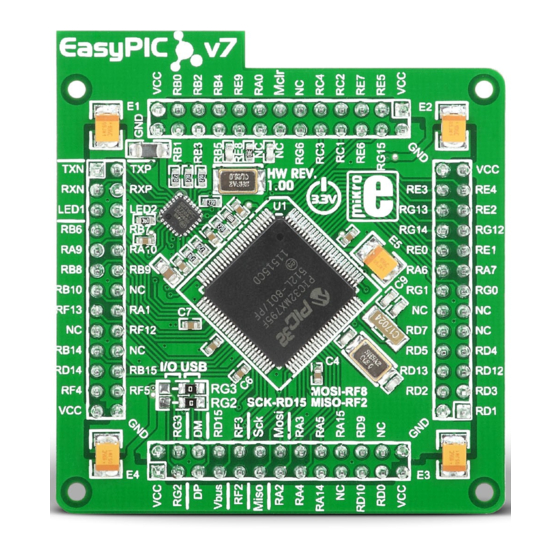

- Page 2 Card information The ETHERNET MCU card is shown on Figure 4-1. It contains PIC32MX795F512L microcontroller with on-chip peripherals and is a great choice for both beginners and professionals. After testing and building the final program, this card can also be taken out of the board socket and used in your final device. PIC32MX795F512L 80MHz 512K bytes...
- Page 3 100nF 100nF 100nF 100nF 100nF 100nF 100nF 10uF 10uF RA10 RG13 RA10 RG13 RG12 AVDD RG12 RG14 AVSS RG14 RB10 RB10 RB11_RXER RB11 LED1 LED2 RF1_ETH PIC32MX795F512L RF13 RF0_ETH RG13 RF13 RA10 RF12 RG14 RG12 RF12 RB12_ETH Vcap RB12 VCAP/VDDCORE RB10 RB13_ETH RB13...
- Page 4 Card dimensions 940 mils 2000 mils 2200 mils Figure 3: MCU card dimensions. page 4 Downloaded from Downloaded from Downloaded from Downloaded from Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 5 If you want to learn more about our products, please visit our website at www.mikroe.com If you are experiencing some problems with any of our products or just need additional information, please place your ticket at www.mikroe.com/esupport If you have any questions, comments or business proposals, do not hesitate to contact us at office@mikroe.com Downloaded from...
