ETC Installation Guide
Pro One-Cell
Preparing to Install the Driver
D1 Driver
D1 HO Driver
Note:
The D1, D2, and D4 Series drivers are compact, convection-cooled LED drivers with RJ45
connections for local DMX. Each driver has an IN and THRU option, using two separate connectors.
The D1 and D1 HO drivers can control a single luminaire each. The D2 driver can control two
ArcSystem Pro One-Cell Micro luminaires. The D4 driver can control up to four ArcSystem Pro One-
Cell or Pro One-Cell Small luminaires. Up to 32 drivers can be installed on one hard-wired line of
DMX.

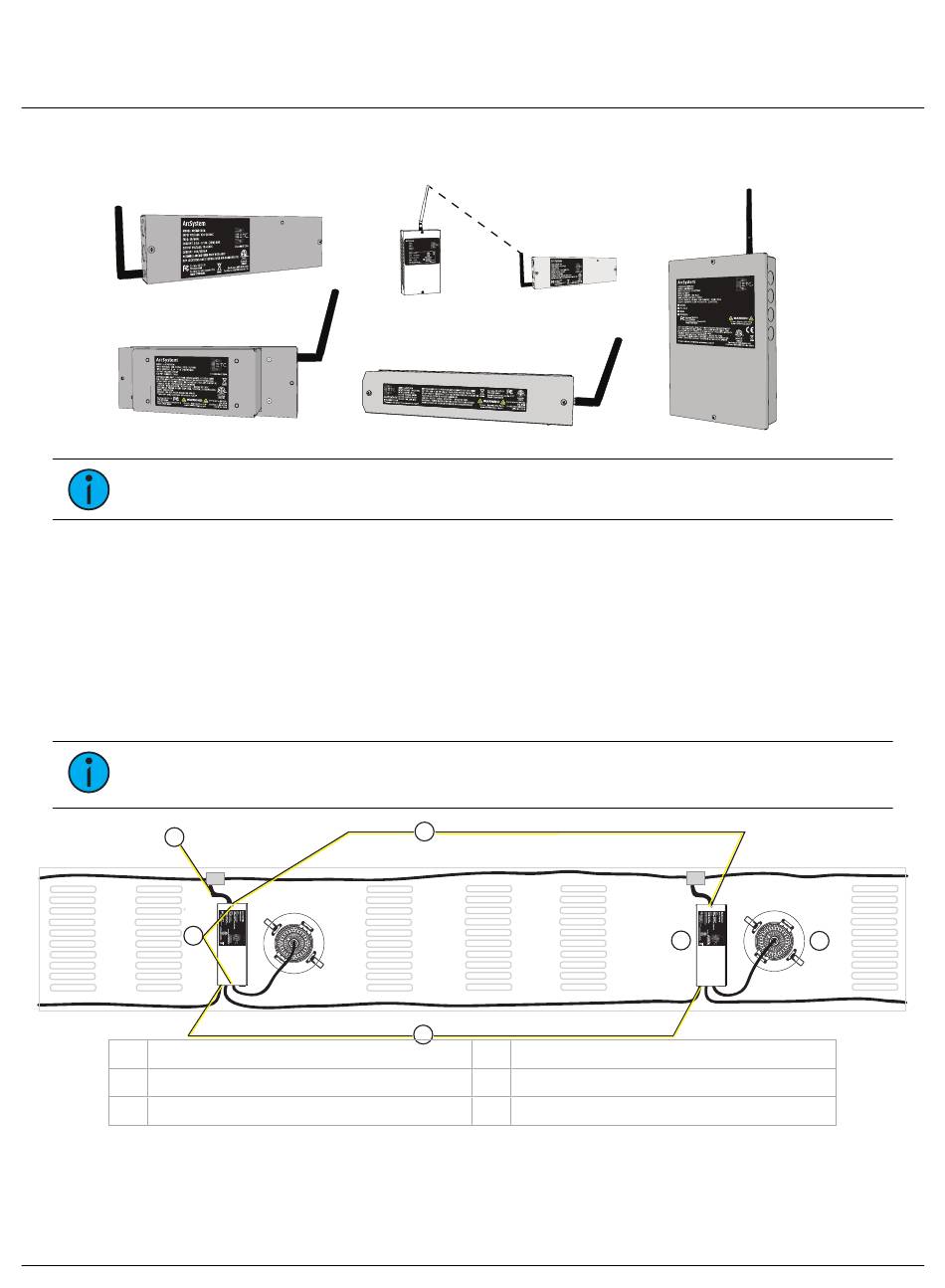

The following illustration shows an example of a linear ceiling installation with one luminaire for
each D1 Series driver. The cable between an ArcSystem Pro One-Cell Series luminaire and its driver
is approximately 1 m (40 in) long.
Note:
box as shown below. Follow all applicable local and national electrical codes.
C
D
A
Power connections
B
DMX In and Thru connections
C
Flexible conduit
Pro One-Cell
TX1 Transmitter
Antenna is not present on RDM models.
If you want to daisy chain power wiring, it must be connected through a junction
ArcMesh Wireless DMX
D1 Driver
D2 Driver
A
B
D
Screw mounting locations
E
D1 or D1 HO driver
F
Luminaire
Page 7 of 29
D4 Driver
E
F
