ZiLOG ZNEO Series Quick Start Manual page 7

Windows 98SE
Follow the steps below to install the USB Smart Cable for Windows 98SE:
1. Connect the USB Smart Cable to the host PC for the first time.
The Found New Hardware wizard should activate automatically.
2. In the Wizard, click Next.
3. Select Search for the best driver for your device (Recommended); then click Next.
4. Select Specify a location; then browse to one of the following driver directory:
<Zilog Developer Studio II Installation Directory>\
device drivers\USB
<Zilog Developer Studio II Installation CD>\Device Drivers\USB
5. Click Next, and then click Next again after the appropriate driver is found.
6. Click Finish to complete the installation.
Connecting the USB Smart Cable to the Target Board
Follow the steps below to connect USB Smart Cable to the development board:
1. Attach one end of the six-conductor ribbon cable (included) to the USB Smart Cable
six-pin DBG connector. See
2. Attach the free end of the ribbon cable to the DBG connector on the target board.
Ensure that pin 1 on the ribbon cable (indicated by the dark stripe) is aligned with
pin 1 on the target connector (see
ZNEO development board).

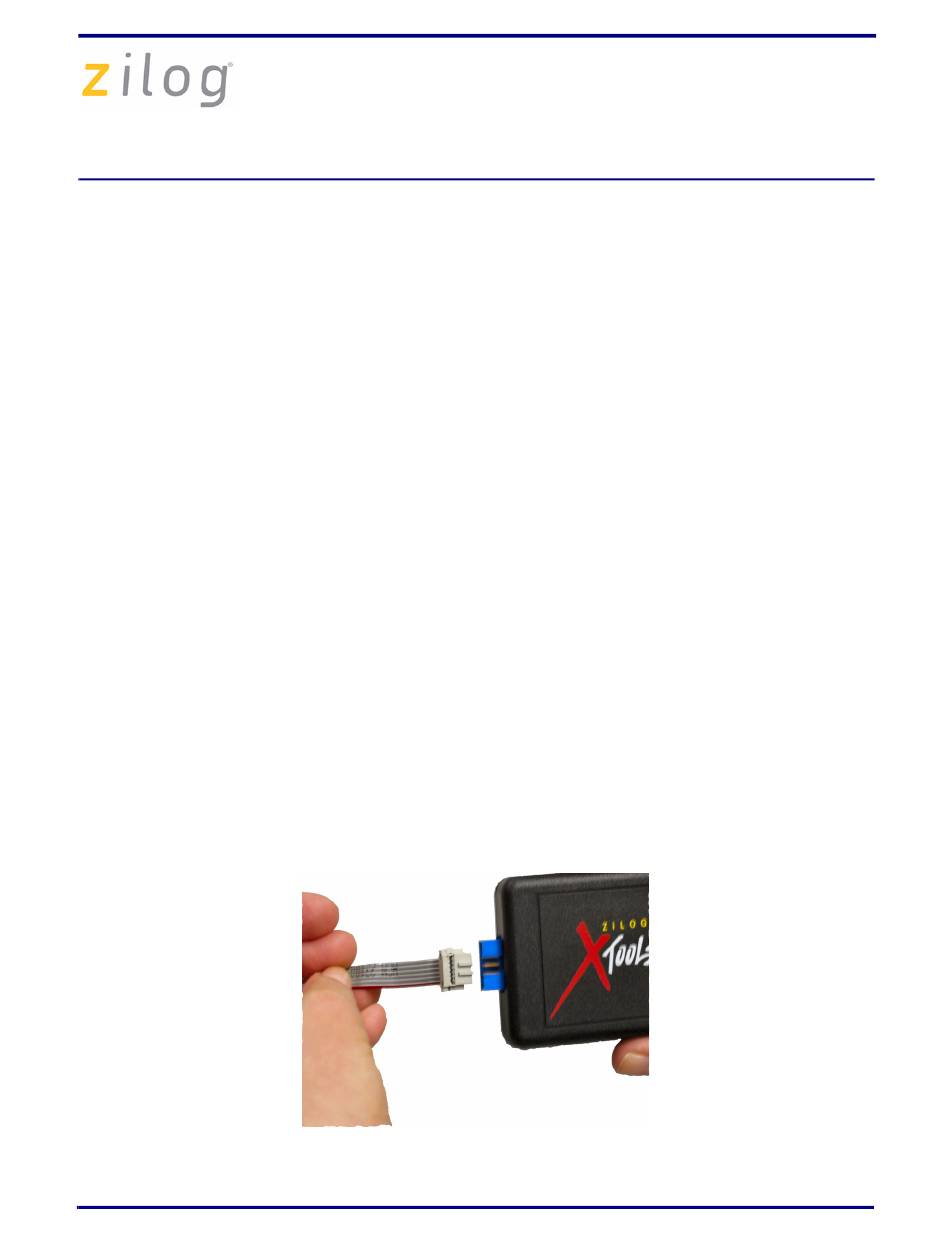

Figure 2. Connecting the Six-Conductor Ribbon Cable to the USB Smart
QS005703-0908
®
ZNEO Series of Microcontrollers Development Kit
Figure 2 on page 7.
Figure 1 on page 3 for location of pin 1 on the
Cable
Page 7 of 18
