ZNEO Series of Microcontrollers Development Kit

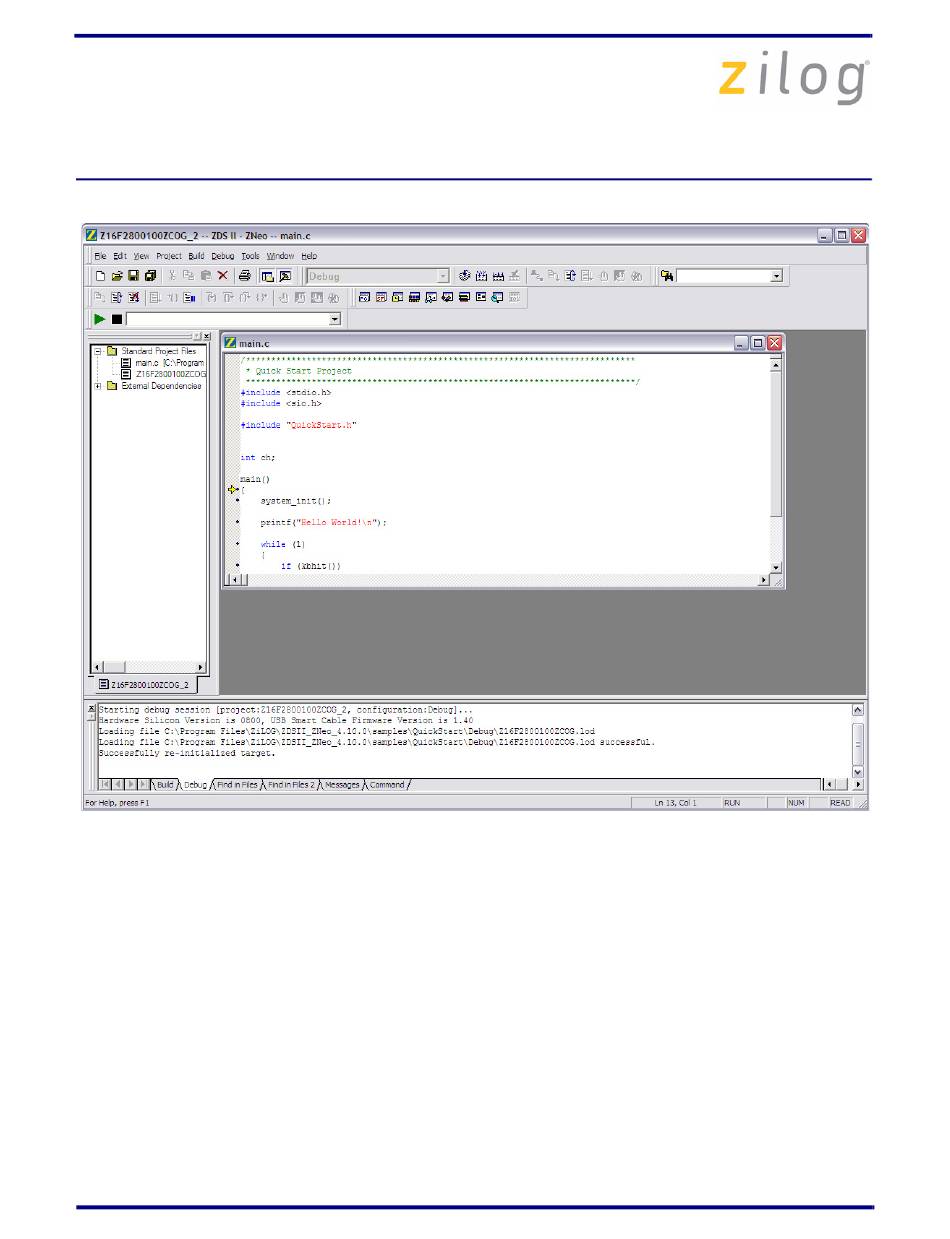

Figure 5. ZDS II Screen After Pressing GO
10. LEDs D2, D3, and D4 on the development board begin blinking in sequence. If the
LEDs do not blink, start over from
11. Two-position slide Switch S3 controls the order in which the LEDs blink. To reverse
the sequence of the LEDs and make them blink in the opposite direction, slide switch
S3 to the opposite position.
For more information on using ZDS II and building projects for your ZNEO
ment kit, refer to the Zilog Developer Studio II–ZNEO
QS005703-0908
step 3 on page 9.
®
Series User Manual (UM0171).
®
develop-
Page 12 of 18
