4. With wheels point straight forward, place rotary sensor on bracket with
shaft pointing down. Align shaft flatside so it is perpendicular to the notch
in the sensor.
5. With 3/8" rod in the slot in the sensor arm, attach the arm to the shaft
sensor using the supplied set screws. Be sure to keep the shaft flat
aligned with the notch on the face when tightening the arm.
6. Tighten bracket holding sensor keeping arm and shaft aligned as shown
above.

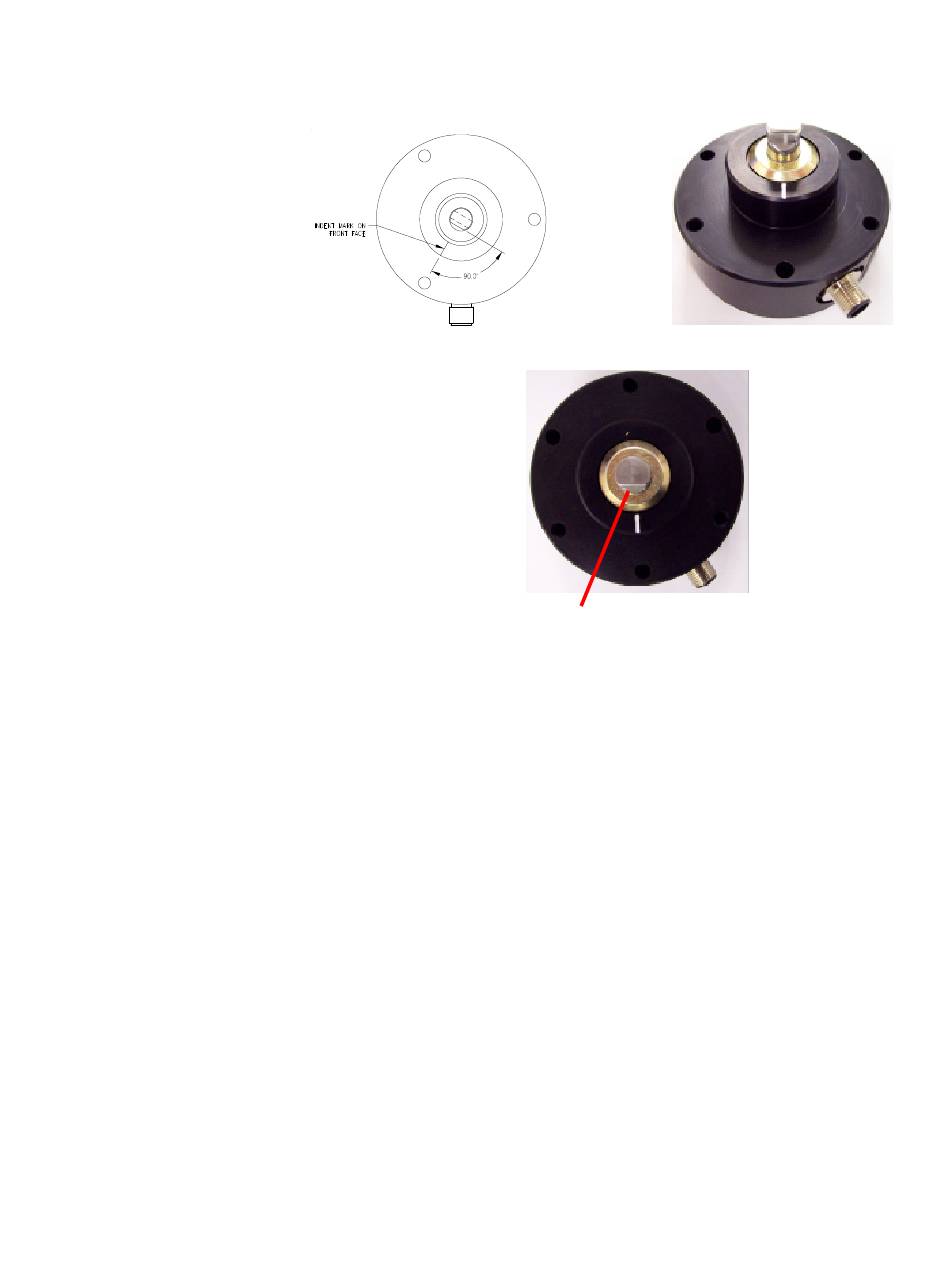

With wheels straight, sensor shaft
should be in this position.
