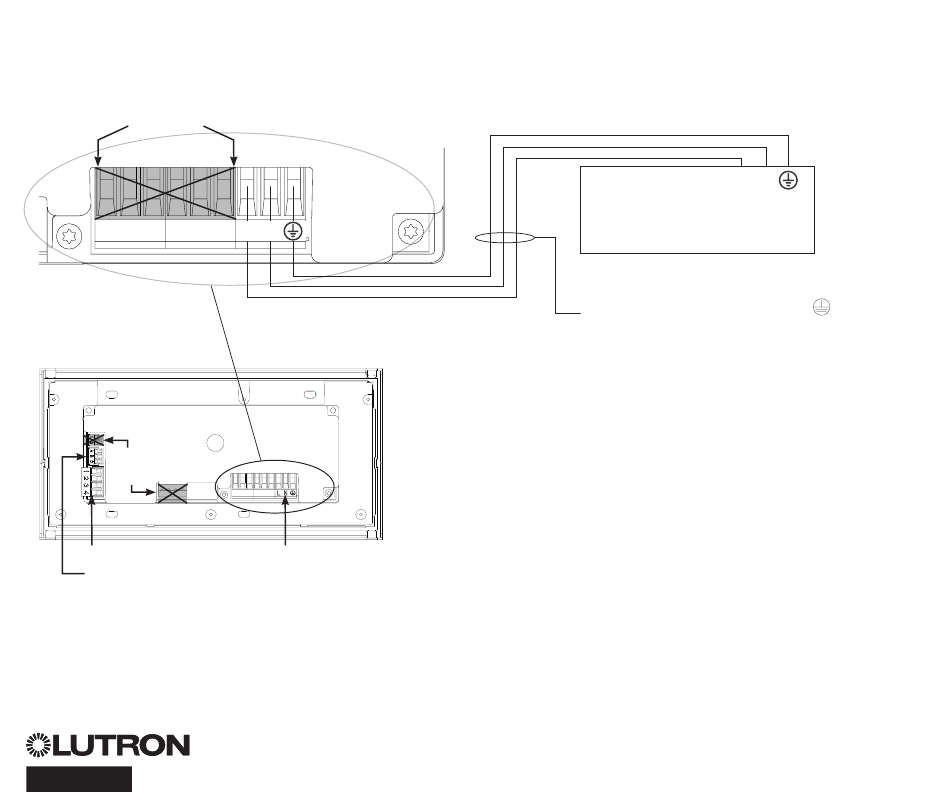

Line Voltage Wiring

• Pull power wiring from distribution panel to QS Timeclock.
• Each line voltage terminal can accept one 12 AWG (4.0 mm²) wire.
NOT USED
1 2 3 4 5 6 L N

Terminations

NOT
USED
D1 D1 D2 D2
QS Communication link
Contact closure input and 24 V- power
®
Rear of
QS Timeclock
Input Power
1 2 3 4 5 6 L N
Distribution Panel
Line voltage (Line / Hot)
is labeled L.
100–240 V~ only
QS Timeclock Quick Installation and Operation Guide 3
L: Line / Hot
N: Neutral
: Ground
