Installation Instructions
Cable Management
For attaching and adjusting cables, the MSTU mount
NOTE:
features a kickstand to allow access without having to
remove display from the wall.
1.
Ensure kickstand is firmly in down position.
2.
Attach or adjust cables as necessary on back of display.
3.
To disengage kickstand, slightly pull display away from wall
and pull down on cable management straps to release
kickstand. Slowly allow display to return to the wall. (See

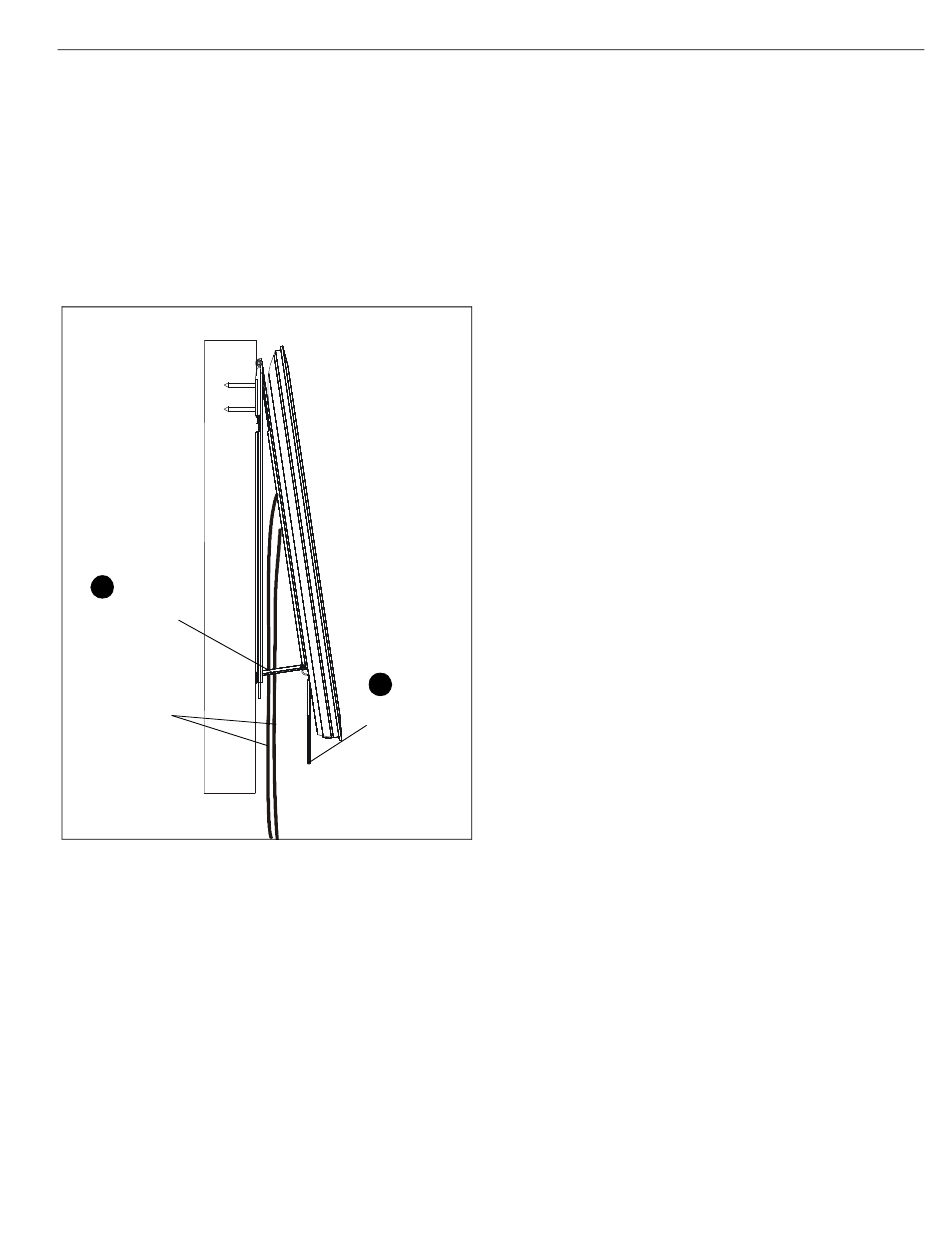

Figure 7)
1
Kickstand in down
position
Cables (typical)
WALL
Figure 7
NOTE:
NOTE:
3
Cable
management
straps
Due to the low-profile design of the Thinstall Series,
displays with cable connections coming straight out of
the back may require 90-degree cable connectors.
Chief offers in-wall accessories that can assist with
recessing cables and connections.
Certain displays may have limited space available for
cable management.
MSTU
