CHIEF Truss Pitch-Adjustable Mount TPP Instruction Manual

Truss pitch-adjustable mount
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

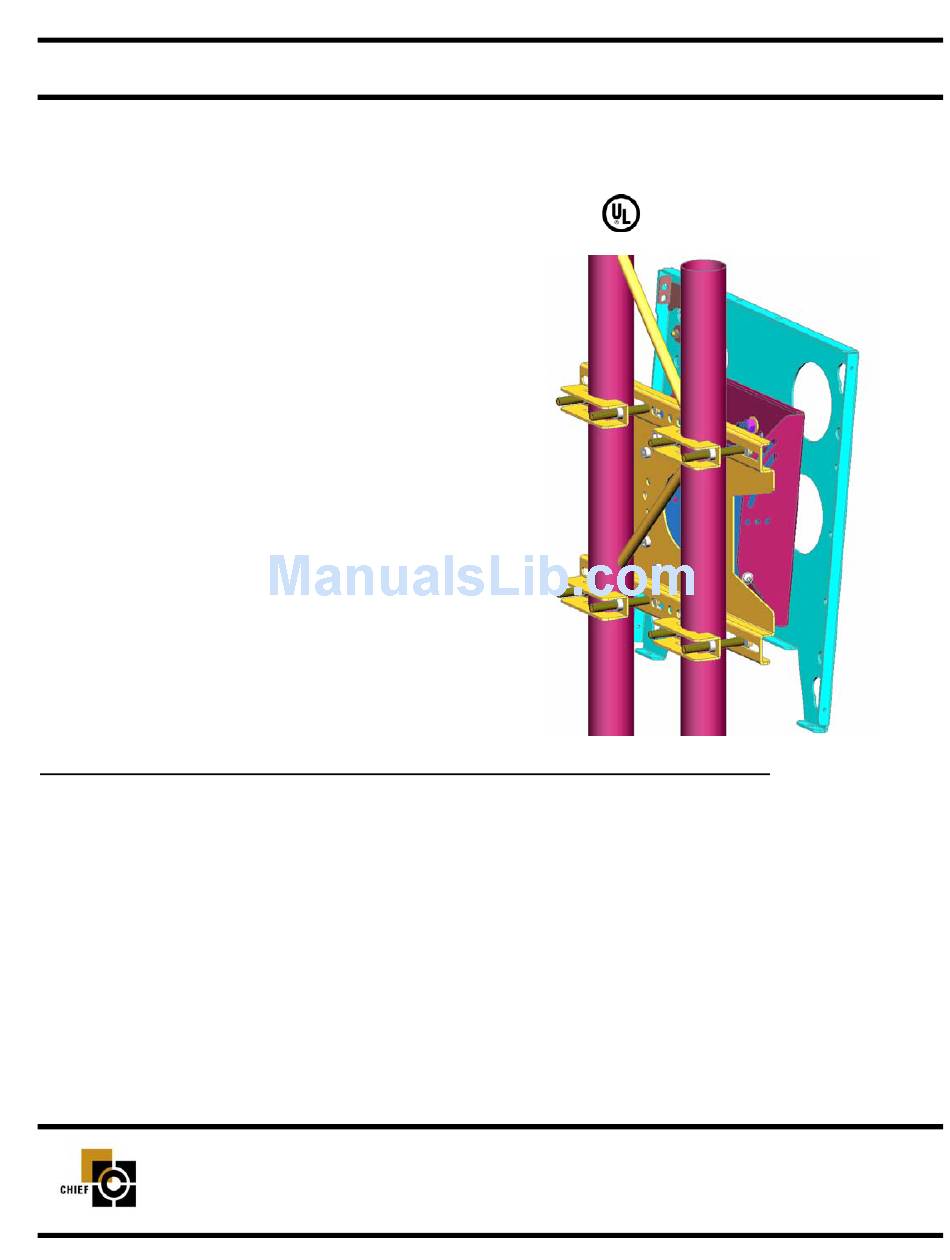

I N S T R U C T I O N
Truss
Pitch-Adjustable (TPP) Mount
The Truss Pitch-Adjustable (TPP) mount is a perfect
solution exhibit, retail and digital signage applications.
The mount is quick, easy and versatile.
The TPP accommodates a large range of truss dimen-
sions (up to 14" O.D.), includes security options and pro-
vides flexible feature to achieve a custom installation
installation. The exclusive Q-Latch™ Mounting System
secures the LArge Flat Panel Display with a lockable
latch to confirm mount stability and integrated security
allows the display to be locked to the mount by adding a
padlock.
Your display can be mounted portrait or landscape and
four pitch adjustments, up or down, are available as pre-
set, locking positions (0, 5, 10 or 15 degrees).

BEFORE YOU BEGIN

• WARNING: TO PREVENT PERSONAL INJURY, THOROUGHLY STUDY ALL INSTRUCTIONS AND ILLUS-
TRATIONS BEFORE YOU BEGIN TO INSTALL THE UNIT. PAY PARTICULAR ATTENTION TO THE "IMPOR-
TANT WARNINGS AND CAUTIONS" ON PAGE 1.
• CAUTION: To prevent damage to the mount, which could affect or void the Factory warranty, thoroughly
study all instructions and illustrations before you begin to install the unit. Pay particular attention to the
"IMPORTANT WARNINGS AND CAUTIONS" on Page 1.
• The maximum weight to be installed on the TPP is 150 pounds (68.04 Kg).
• If you have any questions about this assembly, contact Chief Manufacturing at 1-800-582-6480 or 952-582-6480.
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
LOGO
8401 EAGLE CREEK PARKWAY
SAVAGE, MINNESOTA 55378 USA
M A N U A L
PART NO. 8804-000010 (Rev. B)
©2003 Chief Manufacturing
Printed in USA 05-04
www.chiefmfg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Truss Pitch-Adjustable Mount TPP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CHIEF Truss Pitch-Adjustable Mount TPP

Summary of Contents for CHIEF Truss Pitch-Adjustable Mount TPP

  • Page 1: Before You Begin

    “IMPORTANT WARNINGS AND CAUTIONS” on Page 1. • The maximum weight to be installed on the TPP is 150 pounds (68.04 Kg). • If you have any questions about this assembly, contact Chief Manufacturing at 1-800-582-6480 or 952-582-6480. CHIEF MANUFACTURING INC.

  • Page 2: Table Of Contents

    • WARNING: Be aware of the potential for personal injury or damage to the mount if it is not adequately mounted. • CAUTION: Check the unit for shipping damage before you begin the installation. • CAUTION: Changes or modifications not approved by Chief Manufacturing could void user’s warranty. TOOLS REQUIRED FOR INSTALLATION •...

  • Page 3: Parts

    Instruction Manual PLATE, back PLATE, assembly, pitch-adjustable PLATE, face FLAG, latching NUT, Nylock, 10-24 SCREW, pan head, 10-24 SCREW, cap, hex head, 5/16-18 X 1/2” NUT, Stover locknut, 3/8-16 SPACER, Nylon, .38 X .194 X .032” WASHER, flat, 3/8” WASHER, VHMW PARTS...

  • Page 4: Inspect The Mount Before Installing

    Instruction Manual INSPECT THE MOUNT BEFORE INSTALLING IMPORTANT: Before installing the mount, make sure it has not been damaged during shipping. Carefully inspect the mount for shipping damage. If any dam- age is apparent, call your carrier claims agent and do not con- tinue with the installation of the mount the until carrier has reviewed the damage.
  • Page 5 Instruction Manual Install the face plate in the desired position (see Figure 4, Fig- ure 5, Figure 6 and Figure 7) on the pitch-adjustable plate and secure using two 3/8-16 Nylock nuts and washers in any matching set of radial holes slotted to allow slight roll adjust- ment.

  • Page 6: Mount The Display

    Instruction Manual Mount the Display Attach included PSB brackets to your display using the instruc- tions included with the PSB package. Make sure no power is supplied to the display and the flag is in the down position before attempting to mount the display. Using two people, slide the display down over the four slots in the face plate of the TPP.

  • Page 7: Remove The Display

    Instruction Manual Remove the Display WARNING: Make sure the flag securing the display is com- pletely raised at all times except when removing or installing the display. The flag must be all the way up when installing/removing cables. WARNING: Watch for pinch points. Do not put your fingers between movable parts.
