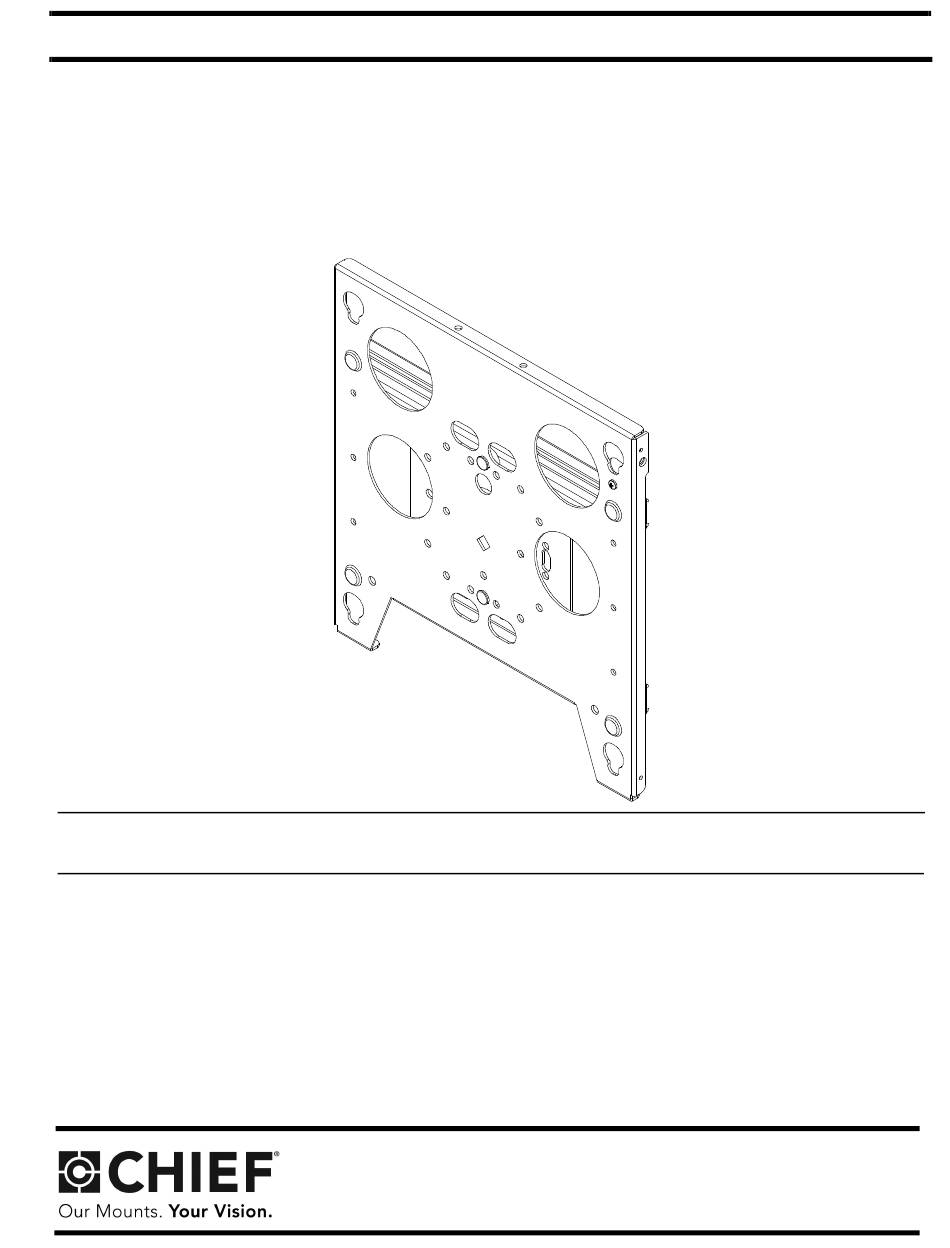

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Truss/Pole Static Mount TPS Series...
-
Page 2: Installation Instructions
IMPORTANT ! : The TPS mount is designed for installation to a variety of pipe/truss dimensions and Chief® is a registered trademark of Milestone AV Technologies. All rights reserved. can span a distance of up to 14" O.D. - Page 3 Installation Instructions TPS Series DIMENSIONS TOP MOUNTING BUTTON ON PSB-XXXX DRAWING GOES HERE NOTE: CUSTOM INTERFACE BRACKET NOT SHOWN. THE CUSTOM INTERFACE BRACKET NEEDED FOR YOUR DISPLAY WILL ADD BETWEEN 1/2” AND 2” IN DEPTH AND MAY AFFECT LOCATION OF DISPLAY ON THE MOUNT.
- Page 4 TPS Series Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Measure...
-
Page 5: Tools Required For Installation
Installation Instructions TPS Series TOOLS REQUIRED FOR INSTALLATION 5/32" 9/16" (included) REQUIRED PARTS (NOT INCLUDED) [TPK Truss/Pole Kit] (example) TPK-4 TPK-5 Truss/Pole Kit PARTS Faceplate A (1) [TPS mount assembly] B (1) [Truss plate] C (2) D (2) 3/8" 1.055" x .406 x .250"... -
Page 6: Vertical Installation
Side with mounting studs towards truss plate (B) Figure 1 Securely anchor truss plate (B) to pole using Chief TPK To Display clamp kit (not included) following instructions and using hardware included in kit. (See Figure 2) and (See Figure 3) -
Page 7: Horizontal Installation
Figure 6 Mounting Studs (x 2) (C) x 2 Securely anchor truss plate (B) to horizontal pole using Chief TPK accessory clamps (not included) following instructions included with TPK clamp kit. (See Figure 7) (F) x 1 Horizontal (E) x 2 Installation Note: Trusses not shown for clarity. -
Page 8: Display Installation
TPS Series Installation Instructions Secure top of faceplate (A) to the truss plate (B) using one Attach interface bracket (G) to display using the instructions 3/8" flat washer (E) and one 3/8" Stover lock nut (C). (See included with the interface bracket kit. - Page 9 Installation Instructions TPS Series With the mounting buttons of the display fully engaged in Adjustments the slots of the TPS (A), secure display to the TPS by raising the Q-Latch flag all the way up to the locked position. (See...
-
Page 10: Removing The Display
TPS Series Installation Instructions Removing the Display (Optional) Security Lock A hole is provided in the Q-Latch flag and TPS faceplate (A) to accommodate the insertion of a padlock or similar locking WARNING: IMPROPER HANDLING CAN LEAD TO device. DISPLAY FALLING CAUSING SERIOUS PERSONAL... - Page 11 Installation Instructions TPS Series...
- Page 12 A 6436 City West Parkway, Eden Prairie, MN 55344 P 800.582.6480 / 952.225.6000 F 877.894.6918 / 952.894.6918 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands Chief, a products division of P +31 (0) 495 580 852 Milestone AV Technologies F +31 (0) 495 580 845 Asia Pacific A Office No.
