Assembly And Installation
Wall Plate Installation Using Wood Studs
1.
Determine location for mount keeping in mind display size
and safety requirements.
2.
Use stud finder to locate studs. Wall plate can be mounted
on 2" x 4" wood studs that are 16" apart.
3.

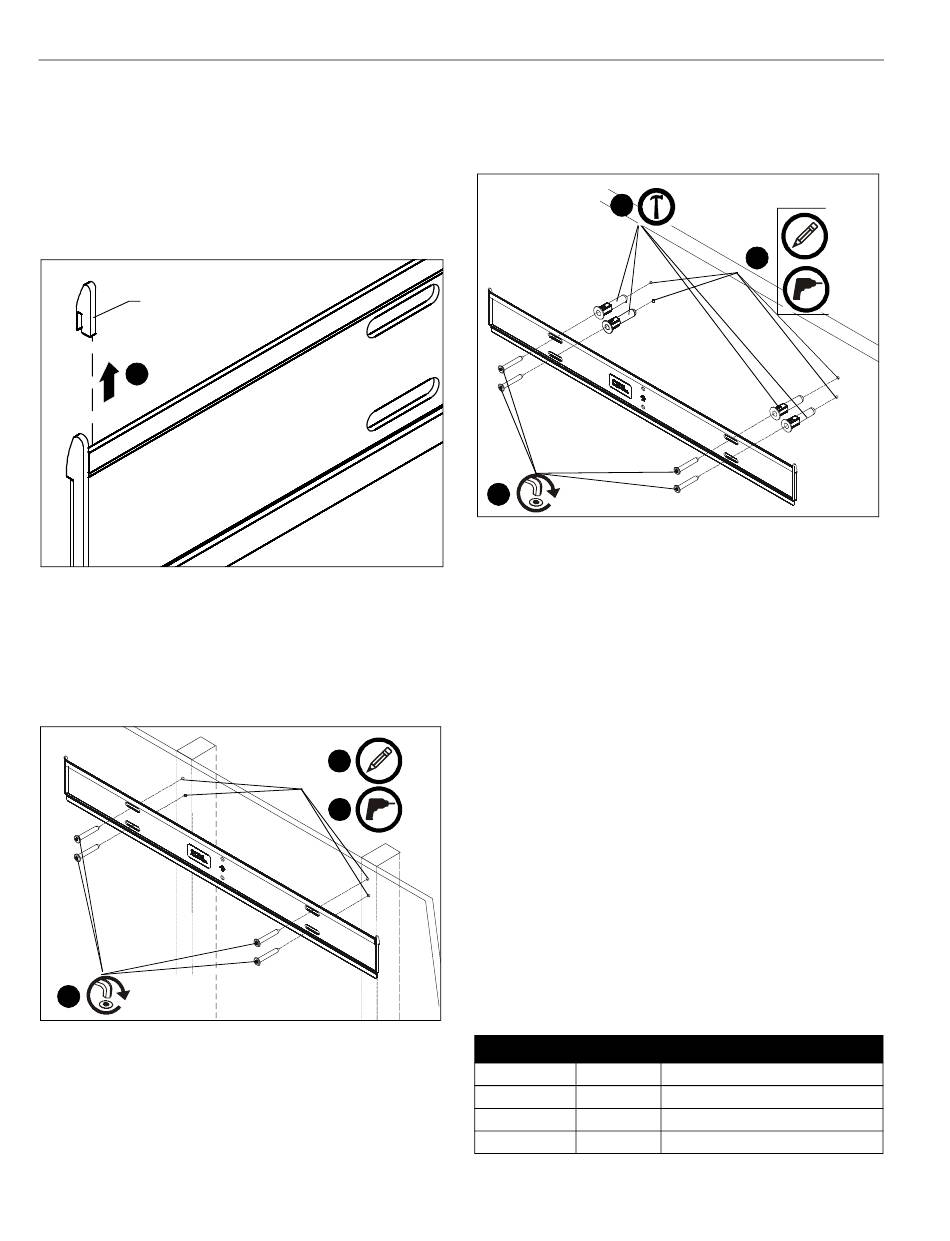

Remove and discard two plastic shipping parts from the wall
plate (one from each end). (See Figure 1)
Shipping
part
3
Front of
wall plate
Figure 1
4.
Using wall plate as template, mark and then drill four 3/16"
diameter pilot holes, making sure the holes are centered in
the middle of each stud. The holes must be drilled at least
2-1/4" deep. (See Figure 2)
5.
Install four connector screws (D) through wall plate and into
pilot holes using M4 Allen Head bit (C). (See Figure 2)
(D) x 4
5
Figure 2
Wall Plate Installation into Concrete or Concrete
Block
1.
Determine location for mount keeping in mind display size
and safety requirements.
2.
Using wall plate as a template, mark and then drill four 5/16"
diameter pilot holes through mounting surface. Use level to
make sure wall plate is perfectly horizontal. Holes must be
drilled at least 2-1/4" deep. (See Figure 3)
6
3.
Install four anchors (AA) into pilot holes drilled in Step 2.
Use a hammer to tap anchors into holes. (See Figure 3)
4.
Install four connector screws (D) through wall plate holes
and into anchors. (See Figure 3)
4
Display Installation
1.
Lay display face side down on a level, non-abrasive
surface. Lay down a cloth if necessary to avoid scratching
the screen.
2.
Position two interface brackets (B) over holes in back of
display to determine which holes will be used for
installation.
NOTE:
x 4
4
NOTE:
x 4
4
NOTE:
3.
Determine which screws to use to connect interface
brackets to display. Use the screws that fit into the holes on
the back of the display. Make sure screws can make at least
three full turns into mounting holes. If not, select longer
screw from hardware kit.
4.
Determine which washers and shoulder washers to use with
the corresponding screw. Refer to table below for details.
Screw Size Washers Shoulder Washers
(AA) x 4
3
(D) x 4
Figure 3
Interface brackets should be positioned so that the
diamond hole in the bracket is located halfway between
the installation holes in order to ensure proper weight
distribution.
Spacers may not be required depending on the type of
display being mounted. They will typically only be used
with recessed or bump-out back screens.
Cable management pull straps should be easily
accessible underneath the display. Length of straps
can be adjusted if necessary.
M4
use R
M5
use R
M6
none
M8
none
Installation Instructions
x 4
2
x 4
use S
use S
use T
none
