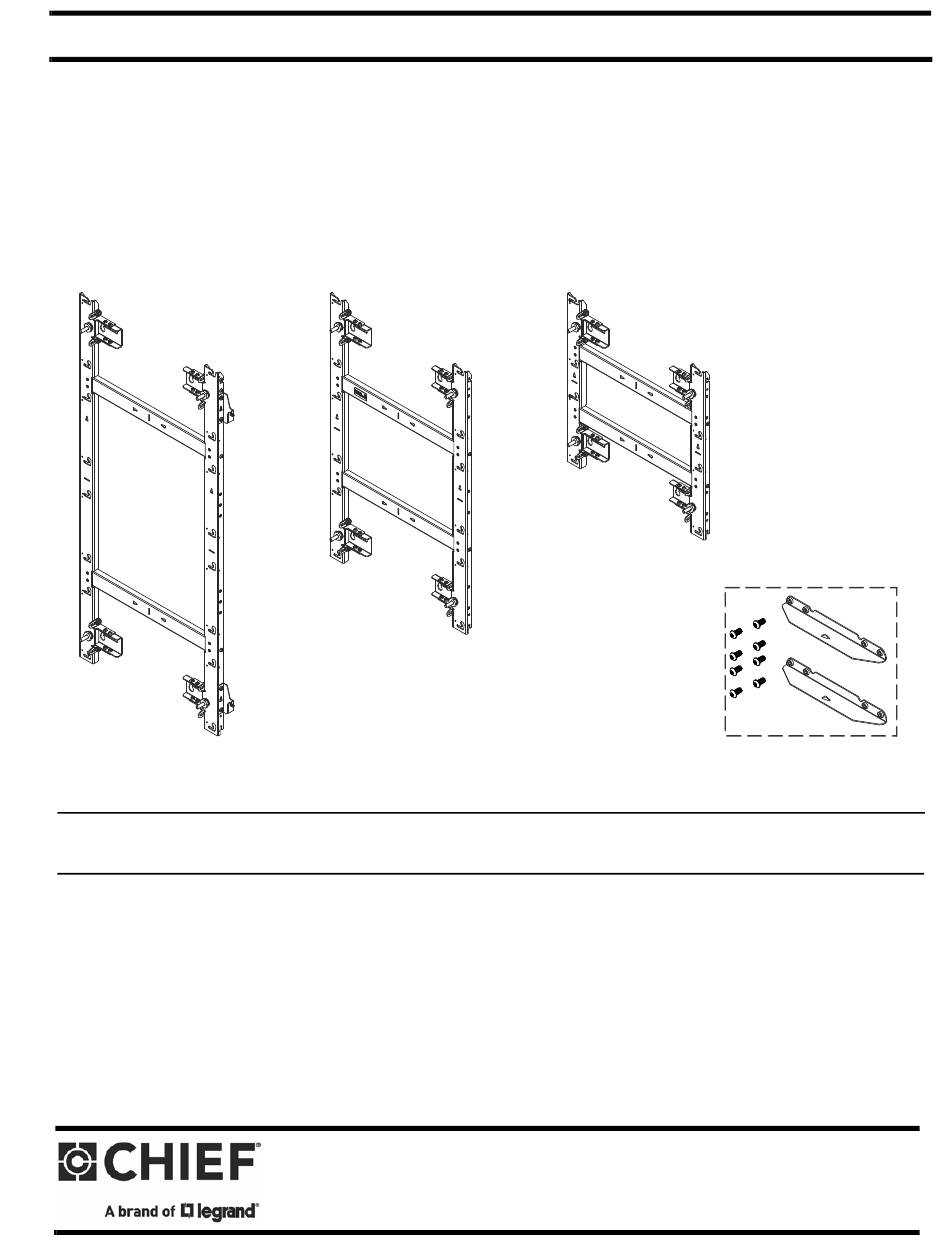

I N S T A L L A T I O N I N S T R U C T I O N S TIL1X2AA TIL1X3AA TILVABAA Accessory TIL1X4AA AA Series LED Wall Mounts / Accessory Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description...
Return the mounting system to a service center for examination and repair. ACCESSORY: AN ACCESSORY is the secondary Chief product which is attached to a primary Chief product, and may have a component attached or setting on it. WARNING: Do not use this mounting system outdoors.
Page 3
TIL1X2AA / TIL1X3AA / TIL1X4AA / TILVABAA Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole...
Installation Instructions TIL1X2AA / TIL1X3AA / TIL1X4AA / TILVABAA INSTALLATION Preinstallation Mounting slot center line IMPORTANT ! : Reference the LED module installation manual for specific instructions regarding care, handling, cabling and installation of the LED modules. 5” CAUTION: Handle the LED modules with care, being careful to not impact or drop the LED module.
Page 6
TIL1X2AA / TIL1X3AA / TIL1X4AA / TILVABAA Installation Instructions Installing First Mount IMPORTANT ! : Refer to Fastener Installation Methods (located in Appendix at end of Installation Instructions) The TIL1X2AA / TIL1X3AA /TIL1X4AA (Absen Acclaim Series) for details on installing product into various wall types. LED wall mounts are designed to be mounted to: Partially install two fasteners into wall, but do NOT •...
Page 7
Installation Instructions TIL1X2AA / TIL1X3AA / TIL1X4AA / TILVABAA Lay levels across flat of the mounting holes and center line • Add the vertical connector (K) to the top or bottom of indicators, and vertically along side of mount to ensure wall the mount, and fasten with two 1/4-20 x 1/2"...
Page 8
TIL1X2AA / TIL1X3AA / TIL1X4AA / TILVABAA Installation Instructions 11. Using a level on the front of the mount in various places, use a 1" socket and T-handle driver to adjust the leveling feet on [TIL1X2AA shown as example] the mount until the mount is plumb. (See Figure 11) CAUTION: Over-torquing may cause damage.
Page 9
Installation Instructions TIL1X2AA / TIL1X3AA / TIL1X4AA / TILVABAA Adding Additional Mounts Use a level to align the second mount with the first mount. Partially install two 1/4-20 x 1/2" button head screws (B) into Tighten both fasteners (where the second mount is hung on the left side of the next mount.
Page 10
TIL1X2AA / TIL1X3AA / TIL1X4AA / TILVABAA Installation Instructions Installing Housings and LED Screens IMPORTANT ! : Reference the LEDs installation manual for specific instructions regarding care, handling, cabling and installation of the LED housings and modules. NOTE: Begin the installation of the housings in the lower left corner of the video wall.
Page 11
Installation Instructions TIL1X2AA / TIL1X3AA / TIL1X4AA / TILVABAA Adjustments Depth Adjust The depth of each wall mount section is controlled by the leveling feet. Using a level on the front of the housings in various places, loosen or tighten the leveling feet adjust bolt (using a 1" socket and T-handle driver) to assist in leveling the LED housings across the various wall mounts until plumb.
Page 12
TIL1X2AA / TIL1X3AA / TIL1X4AA / TILVABAA Installation Instructions Steel Stud Line up anchor with attachment point. Insert 1/4-20 x 1-3/4" Phillips pan head screw through 1/4" IMPORTANT ! : See Site Requirements for Steel Stud washer, corresponding mounting hole in wall bracket and Installation section before proceeding with Steel Studs into anchor, and tighten until flush against wall bracket.
Page 13
Installation Instructions TIL1X2AA / TIL1X3AA / TIL1X4AA / TILVABAA Site Requirements for Wood or Steel Stud Installation If back side of wall is unfinished, drywall must be installed to a minimum of one stud left and right of the stud(s) being used 16"...
Installation Instructions TIL1X2AA / TIL1X3AA / TIL1X4AA / TILVABAA Configuration Examples The following are just two examples of the many configurations which are possible with the AA Series wall mounts.
Page 20
TIL1X2AA / TIL1X3AA / TIL1X4AA / TILVABAA Installation Instructions USA/International A 6436 City West Parkway, Eden Prairie, MN 55344 P 800.582.6480 / 952.225.6000 F 877.894.6918 / 952.894.6918 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Asia Pacific A Office No.
