7.

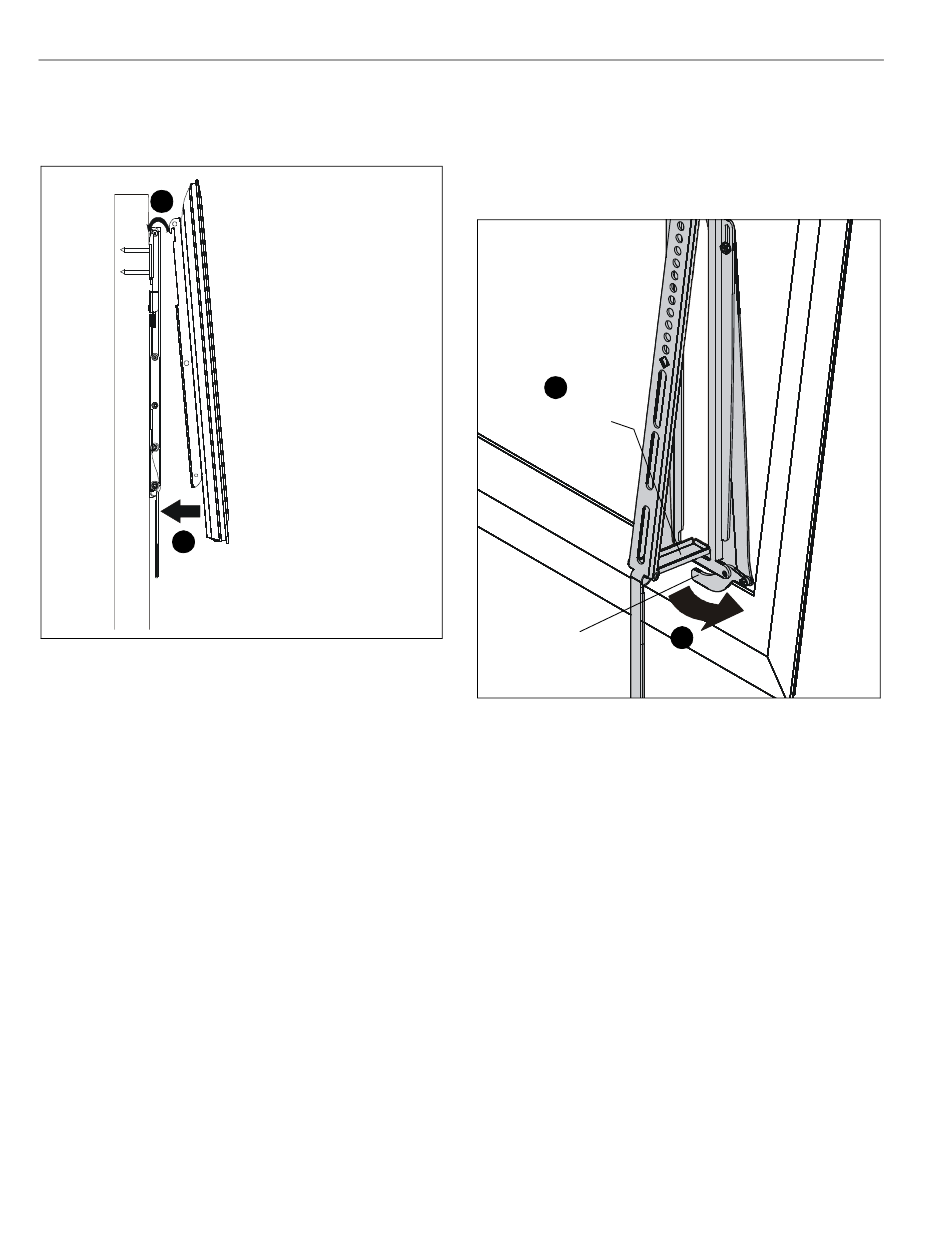

Slowly guide hooks on top of interface brackets on top of
wall plate in desired mounting location. (See Figure 5)
8.
Slowly swing display toward wall. (See Figure 5)
7
8
WALL
Figure 5
8
9.
Slowly pull bottom of display away from wall until kickstand
fully reaches its down position. (See Figure 6)
10. Slowly release display until kickstand locks against bottom
of mount.
11. Rotate flags on each interface bracket to the closed position
in order to lock brackets to wall plate. (See Figure 6)
9
Kickstand in
down position
Locking flag
Figure 6
Flags should stay in locked position unless removing
NOTE:
display from wall bracket.
Installation Instructions
11
