I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Thinstall™ Large Tilt Universal Mount
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
LTTU
Advertisement
Table of Contents
Related Manuals for CHIEF LTTU
Summary of Contents for CHIEF LTTU

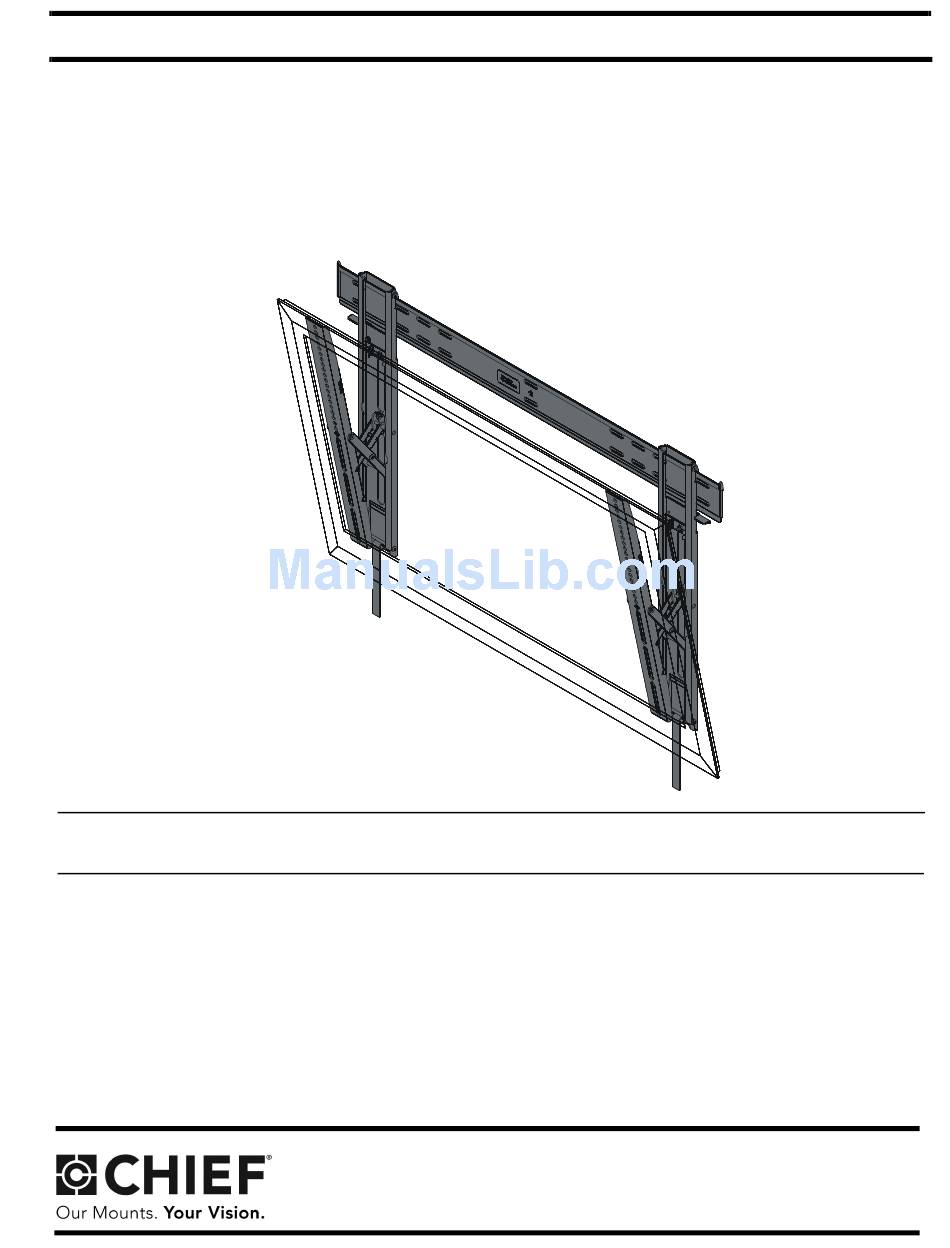

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation Thinstall™ Large Tilt Universal Mount Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description LTTU...
-
Page 2: Important Safety Instructions
It is the installer’s responsibility to make sure the combined weight of all components located between the LTTU up to (and including) the display does not exceed 100 lbs (45.4 kg). The wall to which the mount is being attached may have a maximum drywall thickness of 5/8"... -
Page 3: Installation Instructions
Installation Instructions LTTU DIMENSIONS 35.69 32.00 MAX 31.50 [800] MIN 7.87 [200] 24.00 4X .29 20.00 1.45 MAX 12° 16.00 1.44 LOCKING FLAG 21.56 19.69 6° CABLE STAND CABLE RELEASE STRAP ACCESS ANGLE MEASUREMENTS: [MILLIMETERS] INCHES... - Page 4 LTTU Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación...
-
Page 5: Tools Required For Installation
Installation Instructions LTTU TOOLS REQUIRED FOR INSTALLATION M2.5 (included) M3 (included) M4 (included) 3/16" (4.8mm) M4 (included) M5 (included) 5/16" (7.9mm) 3/16" (included) PARTS A (1) [wall plate] B (1) C (1) [left upright] [right upright] F (4) G (4) -
Page 6: Assembly And Installation
LTTU Installation Instructions Assembly And Installation (double-stud mounting with studs 20" apart shown) Wall Plate Installation Using Wood Studs Determine location for mount keeping in mind display size and safety requirements. Use stud finder to locate studs. Wall plate can be mounted on 2"... -
Page 7: Display Installation
Install six connector screws (D) through wall plate holes and INJURY OR DAMAGE TO PRODUCT! When installing into into anchors. (See Figure 3) concrete, only install the LTTU into concrete at least 8" in Display Installation depth or into 8"x8"x16" concrete blocks! Never install the Lay display face side down on a level, non-abrasive LTTU into cracked, chipped or flaking concrete. - Page 8 Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of all components located between the LTTU up to (and including) the display does not exceed 100 lbs (45.4 kg). NOTE: Make sure locking flags are in the open position before attaching display to wall plate.
-
Page 9: Tilt Adjustment
Installation Instructions LTTU Tilt Adjustment Extra Spring Clip Installation (for larger displays) Display may be tilted forward by pulling forward on the top IMPORTANT ! : Display should be held in vertical of the display as desired. (See Figure 7) position by spring clips. - Page 10 LTTU Installation Instructions...
- Page 11 Installation Instructions LTTU...
- Page 12 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 (0)40 2668620 F +31 (0)40 2668615 Chief Manufacturing, a products Asia Pacific A Office No. 1 on 12/F, Shatin Galleria division of Milestone AV Technologies 18-24 Shan Mei Street...
